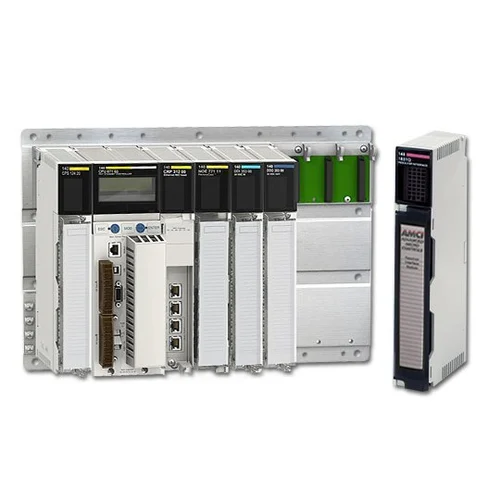

Guide to Modicon Quantum Analog Modules (PLC/DCS)
The Core of Industrial Automation Systems
Industrial automation relies on robust input/output (I/O) modules. These components bridge field devices and the central Programmable Logic Controller (PLC) or Distributed Control System (DCS). They translate real-world analog and digital signals into data that the control system can process. Schneider Electric’s Modicon Quantum platform is an industry staple. It provides high-performance and reliable modules for demanding industrial environments.
Understanding Analog Input: 140ACI03000 vs. 140ACI04000
The 140ACI03000 and 140ACI04000 are both Analog Current Input Modules. They acquire current signals, typically 4-20 mA, from field devices like sensors and transmitters.
140ACI03000: The Precision Choice. This module offers 8 differential inputs. It features a 12-bit resolution. It supports both 4-20 mA current and 1-5 V voltage ranges. This makes it versatile for applications needing a moderate channel count and high accuracy. Its 5 ms update time ensures timely data sampling.
140ACI04000: High-Density Signal Gathering. This module provides 16 differential inputs. It is a high-density solution. It is also an Analog Current Input Module. Its 16-channel configuration saves rack space in the control cabinet. The resolution is also 12 bits, but with specific counts for various current ranges. Its update time is 15 ms. Therefore, project engineers must balance channel count against the slightly slower speed.
Analog Output Capability: The Role of 140ACO02000
The 140ACO02000 serves as an Analog Current Output Module. Its function is to convert digital control values from the PLC back into a physical analog current signal.
Function and Principle. This module features 4 output channels. It typically outputs the standard 4-20 mA current signal. This output drives final control elements, such as modulating valves or variable speed drives. Its 12-bit bipolar current resolution ensures precise manipulation of the controlled equipment. The fast 900 µs settling time is critical for responsive process control loops.
Application Scenario. It is essential in process control. Typical uses include managing flow rates, regulating temperature, or adjusting pressure setpoints. Reliability is key here.
Specialized Signal Handling: 140AII33010
The 140AII33010 is unique. It is an Intrinsically Safe Current Input Module. This designation is extremely important for system safety.
Intrinsic Safety Principle. Intrinsic safety is a protection technique for hazardous areas (like chemical plants). The module limits the energy available to field devices. This prevents sparks or high temperatures that could ignite explosive gas or dust mixtures. Therefore, the 140AII33010 allows direct connection to sensors in hazardous zones.
Critical Applications. This module is non-negotiable in the Oil & Gas, Petrochemical, and certain Pharmaceutical industries. It offers a crucial safety layer. Project engineers must verify local safety standards (e.g., FM, ATEX) for compliance. This is a critical element of professional expertise.
The Hybrid Approach: 140AMM09000
The 140AMM09000 is an Analog Input/Output (I/O) Module. It cleverly combines both input and output functions into a single unit.
Dual Functionality and Selection. This module typically provides 4 Analog Inputs and 2 Analog Outputs. This hybrid design is an excellent choice for smaller, localized control loops. It reduces the required number of discrete I/O cards. This lowers both cabinet space and overall system cost.
Selection Distinction. Unlike the dedicated I/O cards, the 140AMM09000 sacrifices input/output density. However, it offers flexibility and simplified wiring for specific machine or skid-based control systems. I believe this card is highly valuable for compact control requirements.
Choosing the Right Module: Selection Distinctions
| Module | Function | Channels (I/O) | Resolution | Key Distinction | Best Application Scenario |
| 140ACI03000 | Analog Input (AI) | 8 Inputs | 12-bit | High precision, moderate channel count | Continuous Process Control, high-accuracy measurement |
| 140ACI04000 | Analog Input (AI) | 16 Inputs | 12-bit | High channel density, space-saving | Large-scale plant monitoring, many sensors |
| 140ACO02000 | Analog Output (AO) | 4 Outputs | 12-bit Bipolar | Dedicated output, fast settling time | Driving control valves, VFD setpoints |
| 140AII33010 | Intrinsically Safe AI | 4 Inputs (typical) | 12-bit | Safety-rated, for hazardous areas | Oil & Gas, Chemical, Flammable environment control |
| 140AMM09000 | Analog Mixed I/O | 4 AI / 2 AO | Mixed | Compact hybrid module, cost-effective | Small machines, localized loop control, limited I/O needs |
Author’s Perspective: The Enduring Value of Quantum
The Modicon Quantum platform, though mature, remains highly relevant in industrial automation and control systems. Its reputation for ruggedness and reliability is unmatched. Companies heavily rely on these modules in critical DCS and PLC installations. The selection process mandates a thorough risk assessment, especially with the Intrinsically Safe 140AII33010. For non-hazardous areas, balancing density (140ACI04000) and cost-effectiveness (140AMM09000) is crucial. My experience shows that investing in the right module upfront reduces long-term maintenance costs significantly.
Application Case: Water Treatment Plant Solution
A large water treatment facility needs precise control over chemical dosing and flow. 140ACI04000 modules are perfect for monitoring the numerous flow, pH, and level sensors across the plant. 140ACO02000 modules drive the chemical dosing pumps and large motorized valves. The control is centralized within a robust Modicon Quantum PLC system. This setup ensures both high-density monitoring and reliable execution of control commands.
