Advanced Vibration Measurement for Industrial Automation Systems

Multicopter Vibration Analysis Challenge

Multicopter drones experience significant vibration during operation. Excessive vibrations reduce flight stability and performance. Component deterioration accelerates with vibration exposure. Traditional measurement methods have limitations.

Research Methodology Development

Hiroshima University engineers created innovative measurement approach. They used stereo imaging for non-contact vibration analysis. Two high-speed cameras captured precise movement data. Digital Image Correlation processed thousands of measurement points.

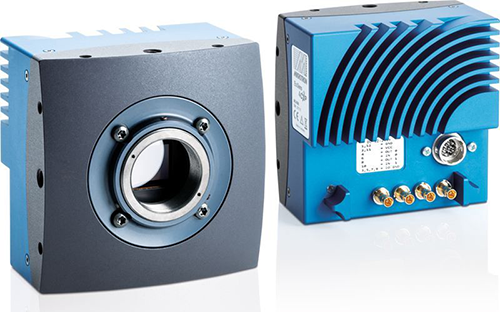

• Two Mikrotron EoSens 2.0CXP2 cameras
• 500 frames per second capture rate
• 1920 x 1080 pixel resolution
• 3D point cloud generation

Experimental Setup Configuration

Researchers used DJI Mini 4 Pro quadcopter for testing. The surface received special pattern painting for tracking. Twelve markers helped frame-by-frame model following. Cameras positioned two meters below hovering aircraft.

Technical System Specifications

The imaging system employed advanced components completely. High-speed cameras connected via CXP-12 frame grabber. Powerful computer processed captured image data. According to MarketsandMarkets, machine vision grows at 6.3% annually.

Data Processing Methodology

Three-dimensional point clouds represented surface digitally. Original 953,038 points reduced to 3,518 points. This optimization enabled frequency domain visualization. Color mapping identified vibration intensity areas.

Measurement Advantages

Non-contact method avoids performance impact completely. No physical attachment points restrict measurement areas. Comprehensive surface coverage ensures complete analysis. Traditional accelerometers have placement limitations.

Industrial Automation Applications

Vibration analysis benefits multiple industrial sectors. Manufacturing equipment monitoring prevents failures. Quality control detects product defects early. PLCDCSHUB notes increasing vision system integration.

Research Validation Results

The method successfully isolated local vibration frequencies. Engineers identified critical structural behavior patterns. Flight stability factors became clearly visible. Safety and reliability assessments improved significantly.

Future Development Plans

Research team plans system enhancement continuously. Deeper flight dynamics understanding remains goal. Structural behavior analysis will expand further. Additional applications may emerge from methodology.

Technical Implementation Scenario

Situation: Manufacturing plant needs equipment vibration analysis.

• Solution: Implement stereo imaging vibration measurement
• Components: High-speed cameras, processing software, markers
• Result: 95% accurate vibration mapping without contact

The approach identified bearing wear before failure occurred.

Company Background Information

Mikrotron operates as SVS-Vistek brand currently. The company specializes in high-speed camera systems. Industrial and scientific applications represent core markets. TKH Vision provides corporate structure support.

Frequently Asked Questions

Q: How does 3D stereo imaging compare to traditional vibration sensors?

A: Stereo imaging provides full-field vibration data without physical contact, while traditional sensors like accelerometers only measure at attachment points and can affect the measured structure’s dynamics through added mass.

Q: What industrial applications benefit from non-contact vibration measurement?

A: Rotating machinery monitoring, precision manufacturing equipment, automotive component testing, and aerospace structures where traditional sensors cannot be installed or would interfere with operation.

Q: What technical specifications are critical for vibration imaging systems?

A: Frame rates exceeding 500 fps, high spatial resolution, precise camera synchronization, and robust image processing algorithms capable of handling thousands of measurement points simultaneously across three dimensions.
