Demystifying ABB AC 800M Controller Models: PM865, K-Series, and Coating Options

Understanding ABB Nomenclature and Kit Versions

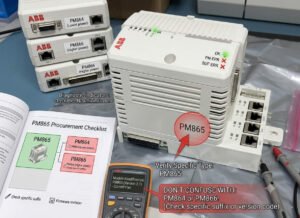

Navigating the ABB AC 800M controller series, including the PM865, PM866, and PM867, often confuses procurement teams. Many engineers mistakenly believe that suffixes like K01, K02, or K03 indicate the presence of a conformal coating. In reality, these suffixes represent specific ABB kit packages rather than environmental protection ratings. As experts at PLCDCS HUB, we emphasize that a “K” suffix simply defines the bundle contents, such as included batteries, terminal blocks, or baseplates. Always verify the specific order code in the product data sheet to confirm the hardware specifications.

The Importance of Accurate Procurement

Selecting the correct spare part is vital for maintaining uptime in industrial automation. Ordering by a vague part number often leads to compatibility issues during commissioning. To ensure seamless integration into your DCS or PLC environment, you must provide the full ABB ordering code, such as 3BSE031151R1. Relying on complete part numbers prevents procurement errors and ensures your control system remains stable and compliant with manufacturer standards.

Performance and Reliability in Industrial Control Systems

The PM865 controller utilizes a dual-processor architecture, separating communication and control tasks. This design ensures that your control systems handle critical loops efficiently, even during high-demand periods. In large-scale installations with over 3,000 analog loops, monitor CPU utilization closely. If your load consistently exceeds 70%, your system responsiveness may degrade. Predictive maintenance and proper hardware sizing remain the best ways to protect your factory automation investments.

Choosing the Right Environment Protection

Conformal coating is a specialized feature, not a standard trait of “K” series kits. If you operate in harsh environments, you must specifically request the “Coated” version. These specialized boards resist damage from hydrogen sulfide, salt spray, and conductive dust. According to our field experience at PLCDCS HUB, using uncoated boards in corrosive zones often results in connector oxidation within just three years. Always align your hardware choice with ISA-71.04 or IEC 60721 environmental standards.

Best Practices for System Redundancy

Redundancy is a cornerstone of reliable control systems in the petrochemical and power generation sectors. When configuring redundant CPU pairs, always maintain strict hardware uniformity. Mixing different revision levels or firmware versions can cause synchronization errors during failover events. We recommend keeping consistent kits on hand as spares to ensure your redundancy logic functions exactly as intended during a process trip.

Essential Implementation Tips

• ✅ Match firmware and hardware revisions for all redundant CPU pairs.
• ⚙️ Specify “Coated” versions explicitly for offshore or coastal facility projects.
• 🔧 Verify environmental conditions against ISA-71.04 before purchasing standard modules.
• ✅ Use the official ABB system inventory list to confirm order codes.
• ⚙️ Maintain climate control in cabinets to extend the lifespan of electronic components.

Expert Guidance from PLCDCS HUB

At PLCDCS HUB, we understand that technical accuracy drives operational excellence. Whether you are expanding a legacy system or performing emergency maintenance, our team provides the documentation and hardware you need. Visit our website to explore genuine ABB components and expert resources tailored for your next industrial automation project.

Frequently Asked Questions

Q1: Can I replace a standard PM865 with a PM865K01?
Yes, you generally can. However, you must first verify that the hardware revision and firmware version are compatible with your current rack configuration. Always consult your project’s system design documentation before swapping modules.

Q2: How do I identify if a unit already has a conformal coating?
The easiest way is to check the full order code against the ABB product data sheet. While some markings exist on the board, relying on the manufacturer-provided order code is the most reliable method for your procurement records.

Q3: Is it necessary to upgrade my controllers to the latest “K” series version?
You do not need to upgrade unless your current hardware is obsolete or requires specific features from newer firmware. If your existing controllers function well, prioritize maintaining a stable spare parts inventory of the exact models you currently have in operation.
