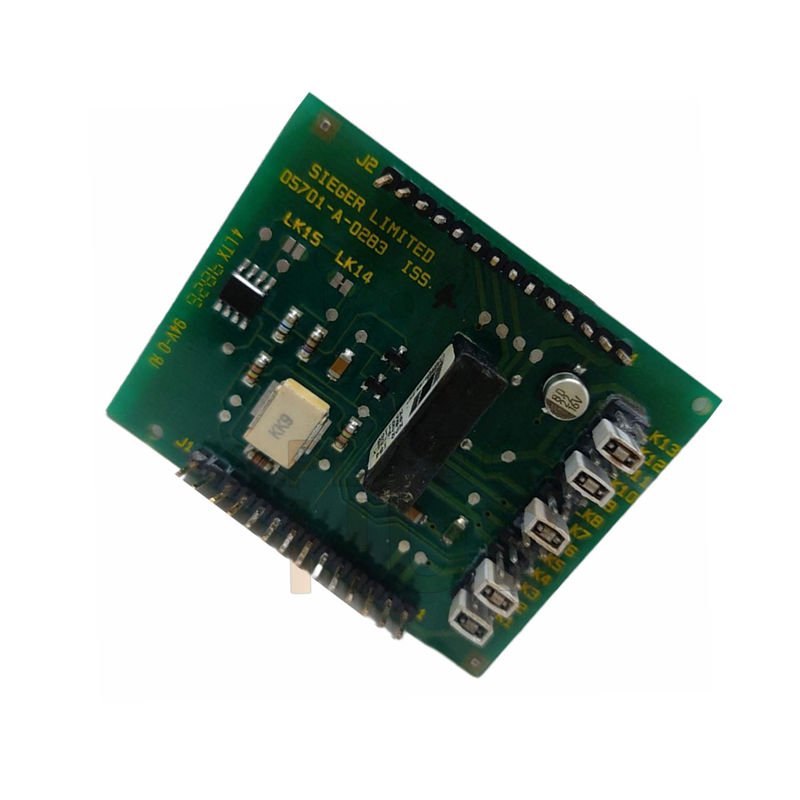

05701-A-0283 Honeywell Gas Sensor Drive Module 4-20mA Series

Description

Product Overview

• Brand: Honeywell Analytics
• Model: 05701-A-0283
• Series: Gas Detection Interface Modules
• Type: Sensor Drive Module
• This module powers and reads gas sensors.
• It converts sensor data into stable current signals.
• The design suits safety-critical gas systems.

Product Strengths

• Supports many gas sensor technologies.
• Stable 4–20 mA signal improves accuracy.
• Wide voltage tolerance eases system design.
• Low power use reduces panel heat.
• Built for long-term field operation.

Electrical and Signal Data

• Sensor Drive Output: 4–20 mA
• Signal Range: 0 to 25 mA linear
• Output Compliance: Up to 40 V
• Input Supply: 18–32 VDC
• Power Draw: 3.25 W nominal
• Response Time: Fast signal tracking
• Signal Stability: High noise rejection

Environmental Performance

• Operating Temperature: -25 °C to +55 °C
• Humidity Range: 20–90% RH non-condensing
• Works in control cabinets and field panels.
• Stable under daily temperature changes.

Mechanical Details

• Weight: 0.165 kg
• Compact size saves panel space.
• Solid construction improves durability.

Installation Guidance

• Mount inside a protected enclosure.
• Use regulated DC power.
• Follow sensor wiring polarity.
• Allow airflow for heat dissipation.

Operation and Maintenance

• No routine calibration required.
• Visual checks ensure wiring health.
• Stable output reduces service calls.

Application Scenarios

• Industrial gas detection systems.
• Oil and gas safety panels.
• Chemical plant monitoring.
• Utility and power facilities.

Packing and Logistics

• One Honeywell sensor drive module.
• Anti-static protective packaging.
• Global shipping via FedEx, UPS, DHL.

Warranty Terms

• 12-month warranty included.
• Covers normal industrial use.
• Technical support available.

FAQ

• Can this module work with older gas sensors?
• Many legacy sensors use the same current loop.
• What cable length works best in practice?
• Shorter runs improve signal quality.
• How do users protect against voltage spikes?
• They add external surge protection.
• Is this module suitable for outdoor panels?
• Yes, with proper enclosure sealing.
• How should buyers select the correct drive module?
• Match sensor current and voltage needs.
