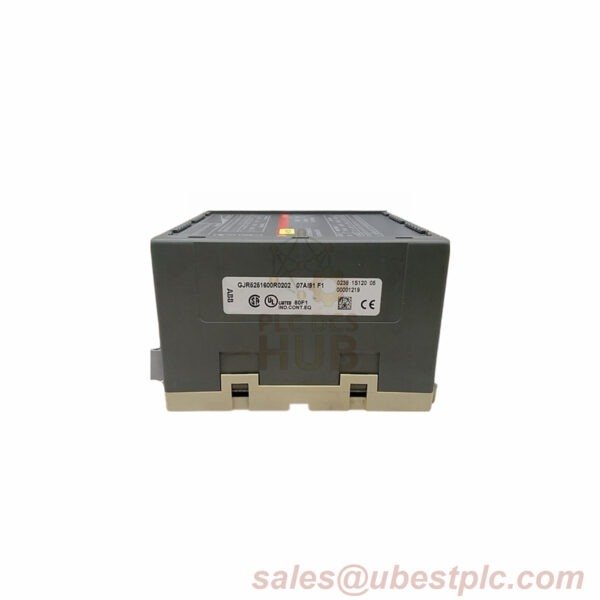

07 AI 91 07AI91 GJR5251600R0202 ABB Advant OCS Analog I/O module

Description

Product Overview

The ABB 07-AI-91 analog input module provides versatile signal acquisition for industrial automation systems via the CS31 system bus. Featuring 8 configurable input channels (paired for flexibility), it supports diverse sensors, including ±10 V, ±5 V, ±500 mV, ±50 mV voltage inputs, 4…20 mA current loops (with a 250 Ω shunt), and linearized Pt100/Pt1000 or thermocouples (J/K/S). Designed for electrically isolated sensors, it ensures reliable performance with self-calibration, LED diagnostics, and DIL-switch configuration.

Technical Specifications

• Brand: ABB
• Model: 07AI91 07-AI-91
• Channels: 8 analog inputs (configurable in pairs)
• Input Types:
  • Voltage: ±10 V, ±5 V, ±500 mV, ±50 mV (12-bit + sign, <±0.5% error)
  • Current: 4…20 mA (requires 250 Ω shunt, <±0.5% error)
  • RTD: Pt100/Pt1000 (-50°C to +400°C, ±0.5% to ±1% error)
  • Thermocouples: J/K/S (linearized, 50/60 Hz suppression)
• Isolation: Electrically isolated from CS31 bus
• Power: 24 V DC (max 0.15 A, 3 W dissipation)
• Operating Temperature: 0°C to +55°C
• Line Frequency Suppression: Configurable (50 Hz, 60 Hz, none)
• Update Period: 30 ms (no suppression) to 150 ms (thermocouples)
• Protection: Reverse polarity, ±30 V overvoltage
• Dimensions: 140 x 120 x 85 mm
• Weight: 0.59 kg
