Description

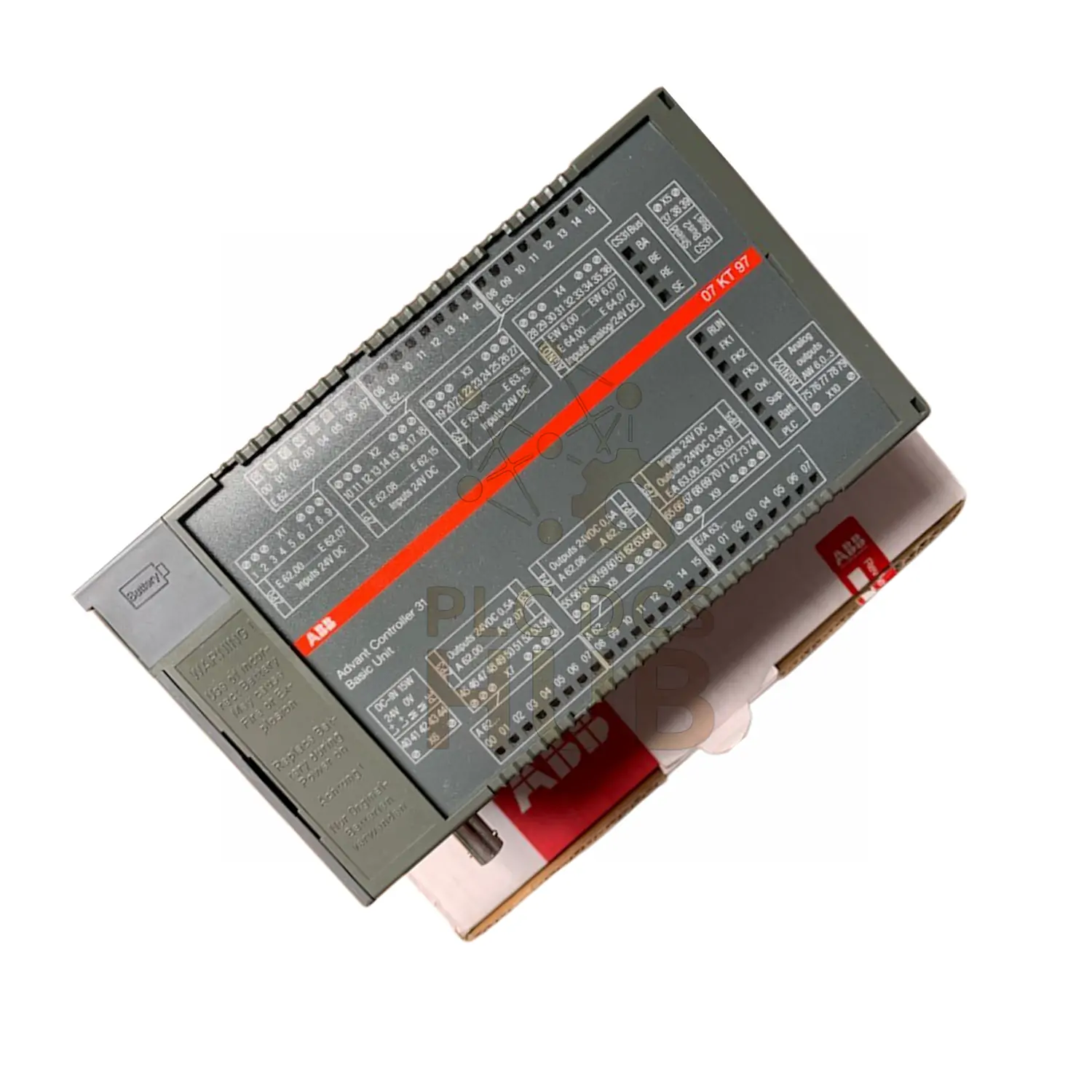

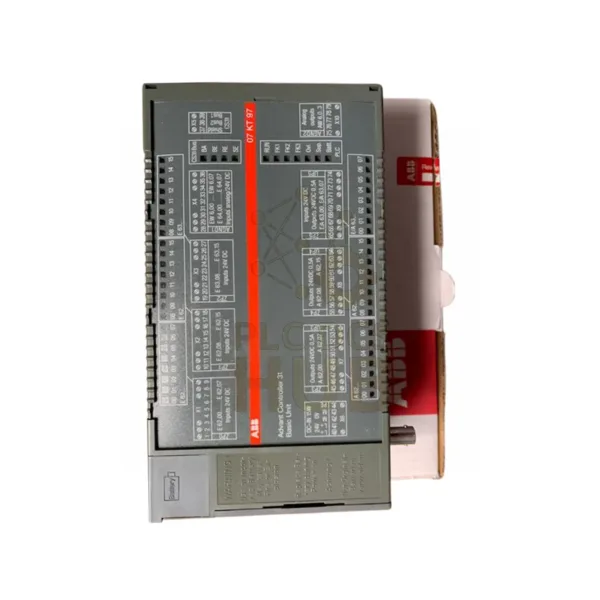

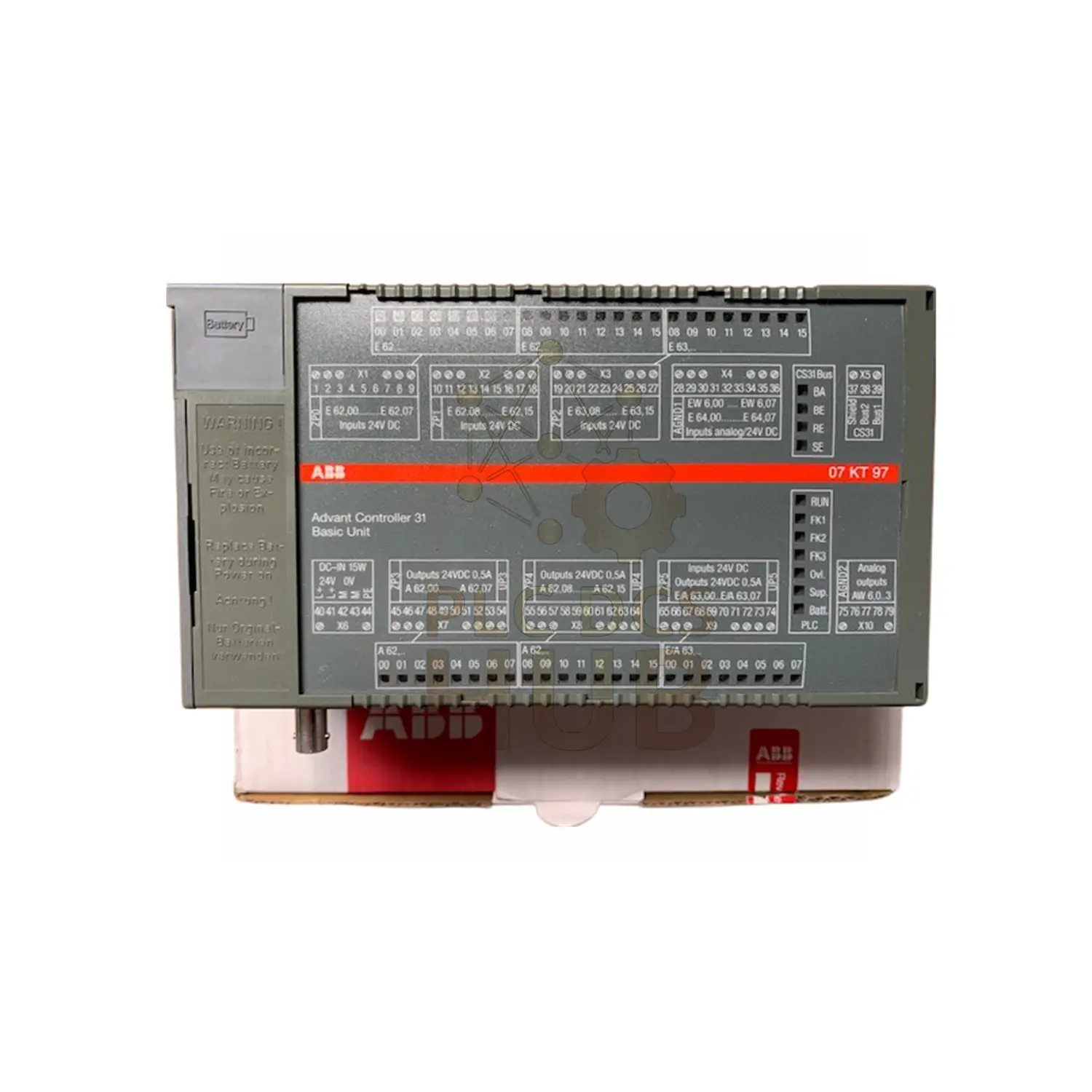

ABB 07KT97 PLC Central Unit: Industrial Control Powerhouse
Core Features
- 8 analog inputs (0-10V/4-20mA)
- 4 analog outputs (-10V to +10V)
- 24 digital inputs & 16 digital outputs @24V DC
- Super-fast processing: 0.3ms per 1000 instructions
- Dual MODBUS ports for easy connectivity
Key Specifications
- Model: 07KT97 GJR5253000R0200
- Power: 24V DC / 0.5A
- Memory: 256KB data / 480KB program
- Temperature: 0°C to +55°C operation
- High-Speed Counters: 2 channels @50kHz
- Expansion: Up to 232 AI + 228 AO
- Real-Time Clock: Built-in timekeeping
Industrial Applications
- Automotive production line control
- Bottling plant flow management
- Warehouse sorting systems
- Semiconductor clean room monitoring
- Textile machinery speed control
- Airport baggage handling
Technical Parameters
- Analog Resolution: 10-12 bit precision
- Digital Output Current: 500mA per channel
- Max Digital I/O: 1024 points
- Storage Temp: -25°C to +75°C
- Gross Volume: 6.142 dm³
- Mounting: DIN rail compatible
Package & Support
- 1× PLC Central Unit
- 12-month manufacturer warranty
Global Shipping
FedEx | UPS | DHL – Worldwide Delivery
FAQ
Q: Programming software included?
A: Requires AC1131 software (sold separately)
Q: Supports temperature sensors?
A: Yes, direct PT100 2/3-wire connection
Q: Maximum expansion capacity?
A: 1024 digital I/O points total
Q: Real-time clock battery backup?
A: Yes, maintains time during outages
