Description

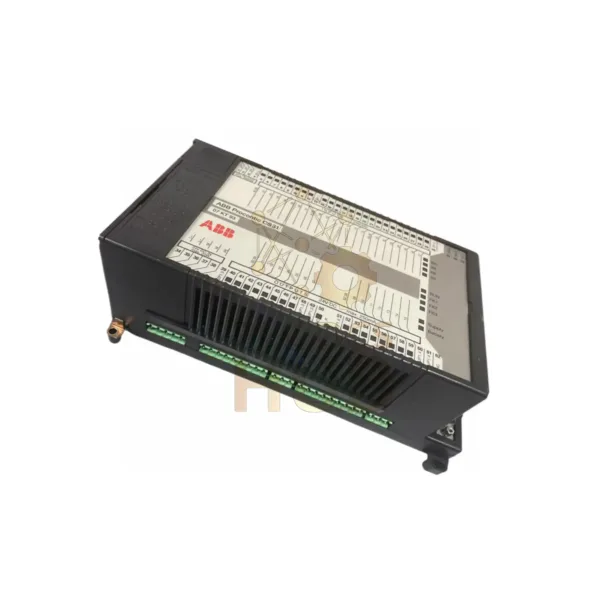

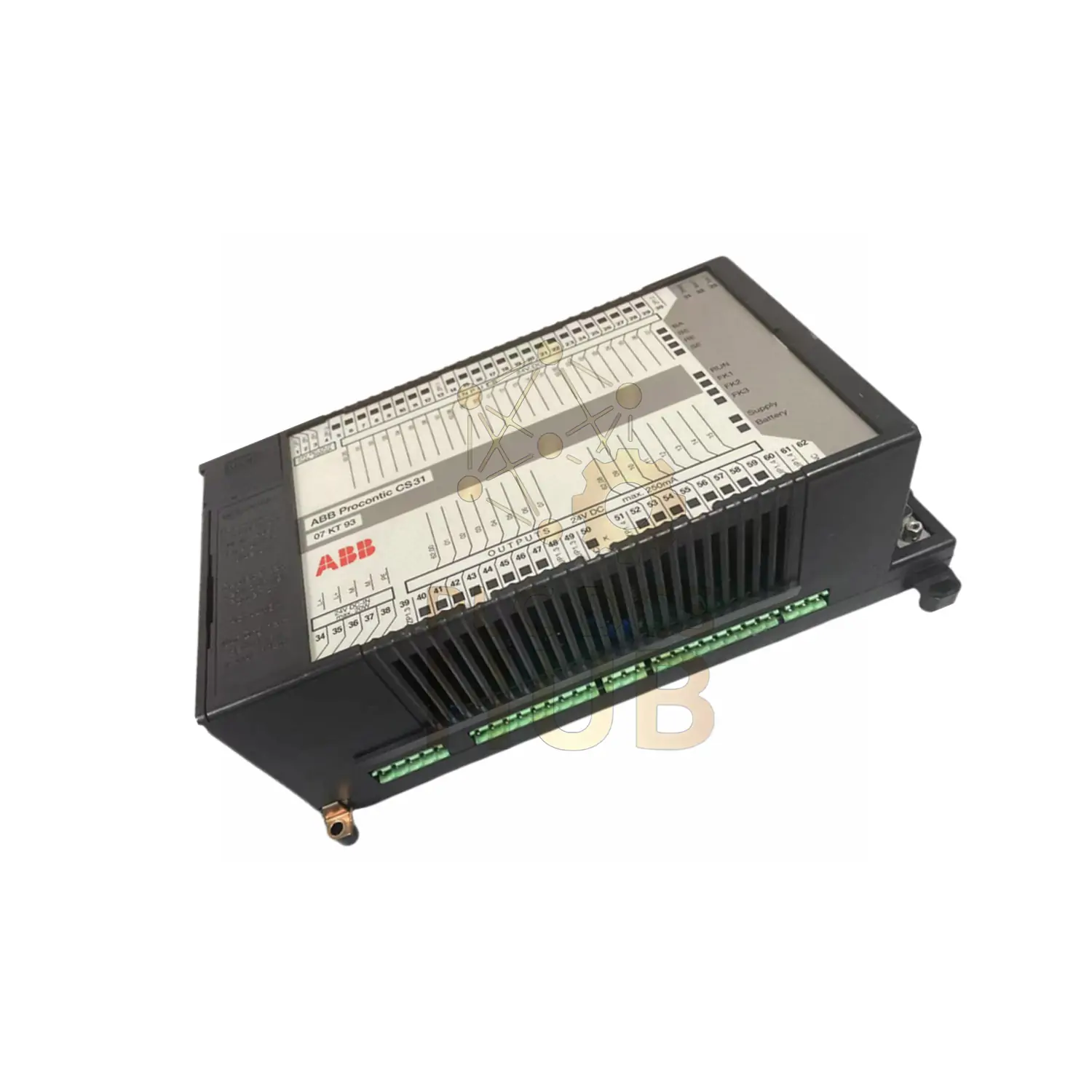

ABB Advant Controller 07KT93: Compact Industrial Automation
Product Description
Powerful automation controller for machine control. Features 24 inputs, 16 outputs, and PID regulation. Built for harsh industrial environments with robust communication ports.
Technical Specifications
- Brand: ABB
- Model: Advant Controller
- Full Suffix: 07KT93 / GJR5251300R0171
- Inputs: 24 channels (24V DC)
- Outputs: 16 channels (24V DC, 0.5A each)
- PID Control: Advanced process regulation
- Counters: 10kHz high-speed
- Memory: 14K Flash EPROM
- Ports: 2x RS-232 + RS-485 bus
- Power: 24V DC
- Dimensions: 6″x4″x10″ (15x10x25cm)
- Weight: 0.9kg (1lb 16oz)
Installation Guide
Mount on DIN rail or panel. Connect 24V power terminals. Use shielded cables for RS-485 communication. Allow 2-inch clearance for cooling.
Compatibility
Works with ABB CS31 systems, PLCs, sensors, and RS-485 devices. Programmable via AC31 software.
Package Contents
- 07KT93 controller unit
- User manual
Warranty & Shipping
12-month warranty. Ships via FedEx/UPS/DHL. Delivery in 3-5 business days.
Real-World Applications
Food Processing: PID temperature control in ovens
Textile Machinery: 10kHz thread counter monitoring
Water Pumps: RS-485 network control for remote stations
FAQ
Q: Maximum RS-485 cable length?
A: 1200 meters at 100kbps
Q: Can outputs drive relays directly?
A: Yes – 0.5A capacity per channel
Q: Programming software included?
A: Requires AC31 software (sold separately)
