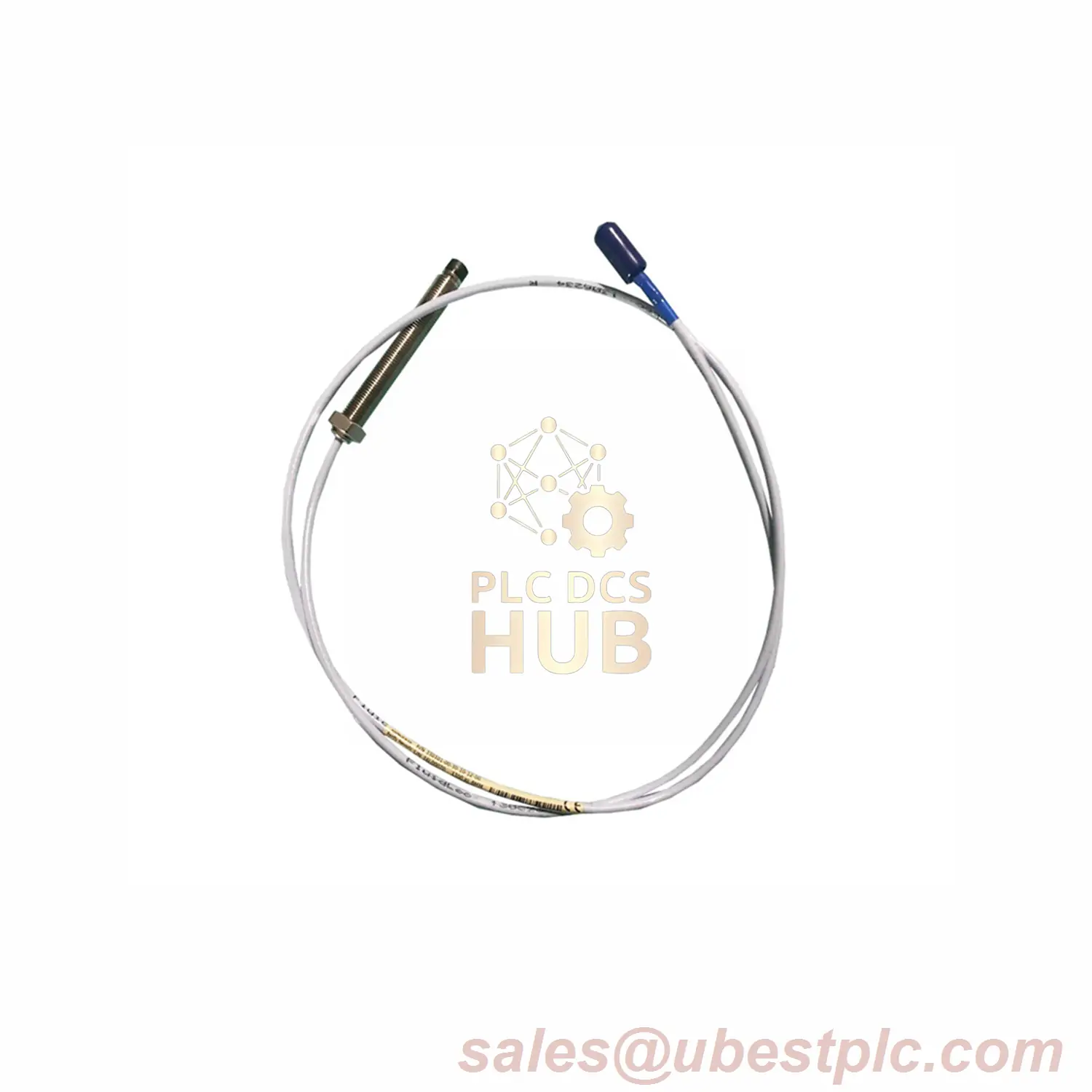

Bently Nevada 3300 XL 11mm Proximity Probe – Long Reach Industrial Sensor
5-meter armored vibration probe for heavy machinery monitoring. Features country-specific approvals and extreme temperature resistance. Made in USA.
Technical Specifications
- Brand: Bently Nevada
- Full Model: 330702-00-50-50-02-CN
- Configuration:
- 00 → 0″ unthreaded length
- 50 → 5.0″ case length
- 50 → 5.0 meter cable
- 02 → ClickLoc connector
- CN → Country approvals
- Cable Resistance: 7.2Ω ±0.8
- Temp Range: -51°C to +177°C
- Min Bend Radius: 25.4mm (1.0in)
- Thread Size: 1/2-20 UNF
Installation Details
- Max Torque: 45.2 N•m
- Recommended Torque: 15.2 N•m
- Viton O-ring pressure seal
- ClickLoc connector: finger-tight only
Shipping & Support
- FedEx, UPS, DHL express shipping
- Delivery weight: 0.17kg
- 12-month warranty
Expert Questions Answered
- Q: Can I use this with 1m Proximitors?
A: No – requires matching 5m Proximitor - Q: What countries does CN approval cover?
A: Contact us for specific certifications - Q: Is pressure testing available?
A: Custom testing upon request - Q: Cable replacement options?
A: Entire probe assembly only - Q: Minimum bend radius?
A: 25.4mm to prevent damage
