11 mm Proximity Probe Bently Nevada 330702-00-20-10-02-00 Fast Delivery

Description

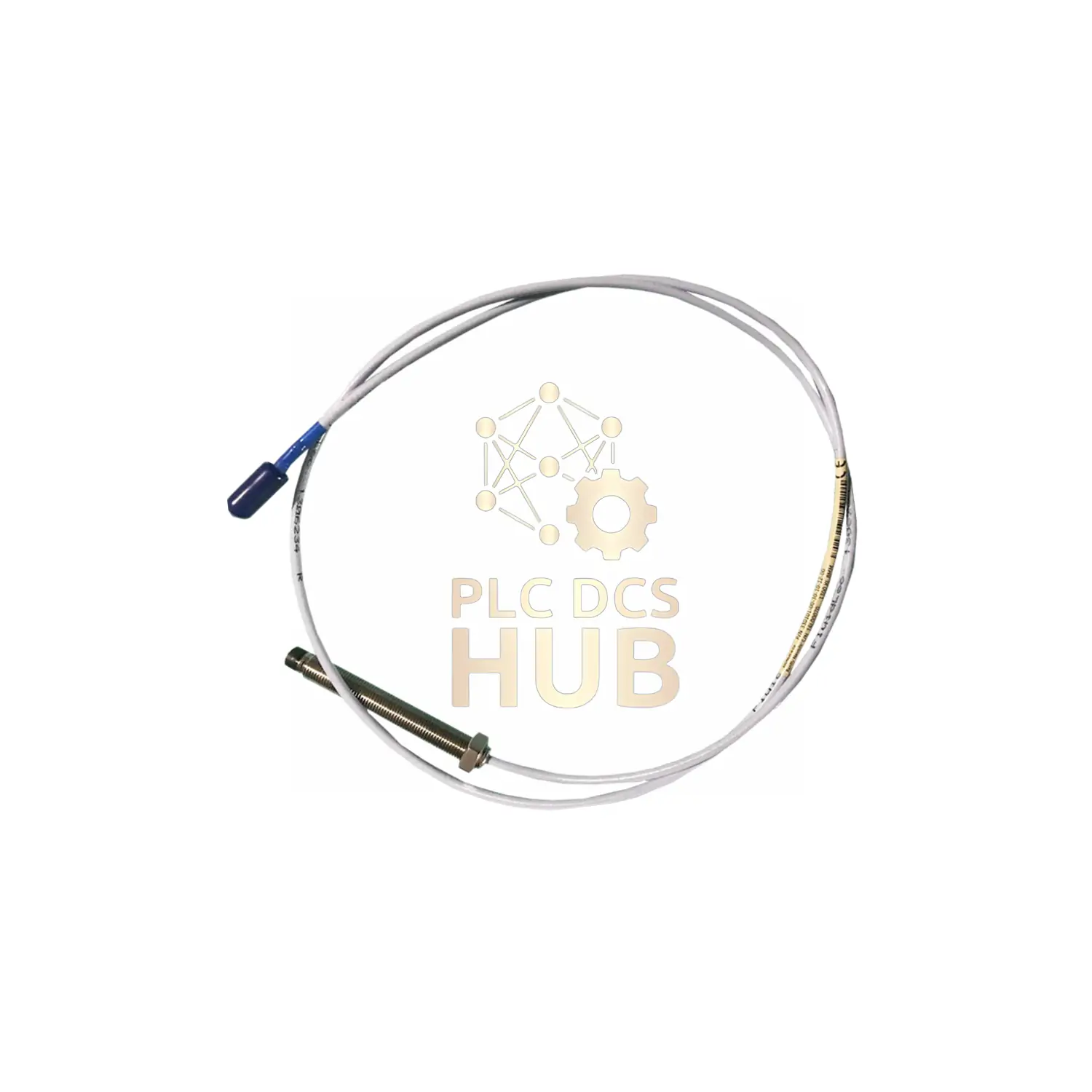

Bently Nevada 3300 XL 11mm Proximity Probe – High-Precision Vibration Monitoring

Premium-quality proximity probe designed for industrial vibration measurement. Ideal for machinery health monitoring in turbines, compressors, and rotating equipment. Made in the U.S.A. with robust 304 stainless steel casing.

Technical Specifications

• Brand: Bently Nevada
• Model: 330702-00-20-10-02-00
• Thread: 1/2-20 UNF (max engagement 0.75″)
• Cable: 75Ω triaxial with FEP insulation
• Resistance: 5.9Ω ±0.5 (center to outer conductor)
• Linear range: 11mm standard
• IP rating: Sealed with Viton O-ring

330702    Base part number
-00       Unthreaded length (0")
-20       Case length (2.0")
-10       Cable length (1m)
-02       ClickLoc connector
-00       No agency approvals

Installation Guide

• Max recommended torque: 15.2 N•m (133 in•lb)
• Min bend radius: 25.4mm (1.0″)
• Connector torque: Finger tight (max 0.565 N•m)

Certification & Shipping

• 12-month warranty
• Shipping: FedEx/UPS/DHL (0.17kg)

FAQ

• Q: Is this probe armored?
• A: Yes, with stainless steel armor
• Q: Temperature limits?
• A: -51°C to +177°C operating range
