11 mm Proximity Probe Bently Nevada 330702-00-30-90-02-00

Description

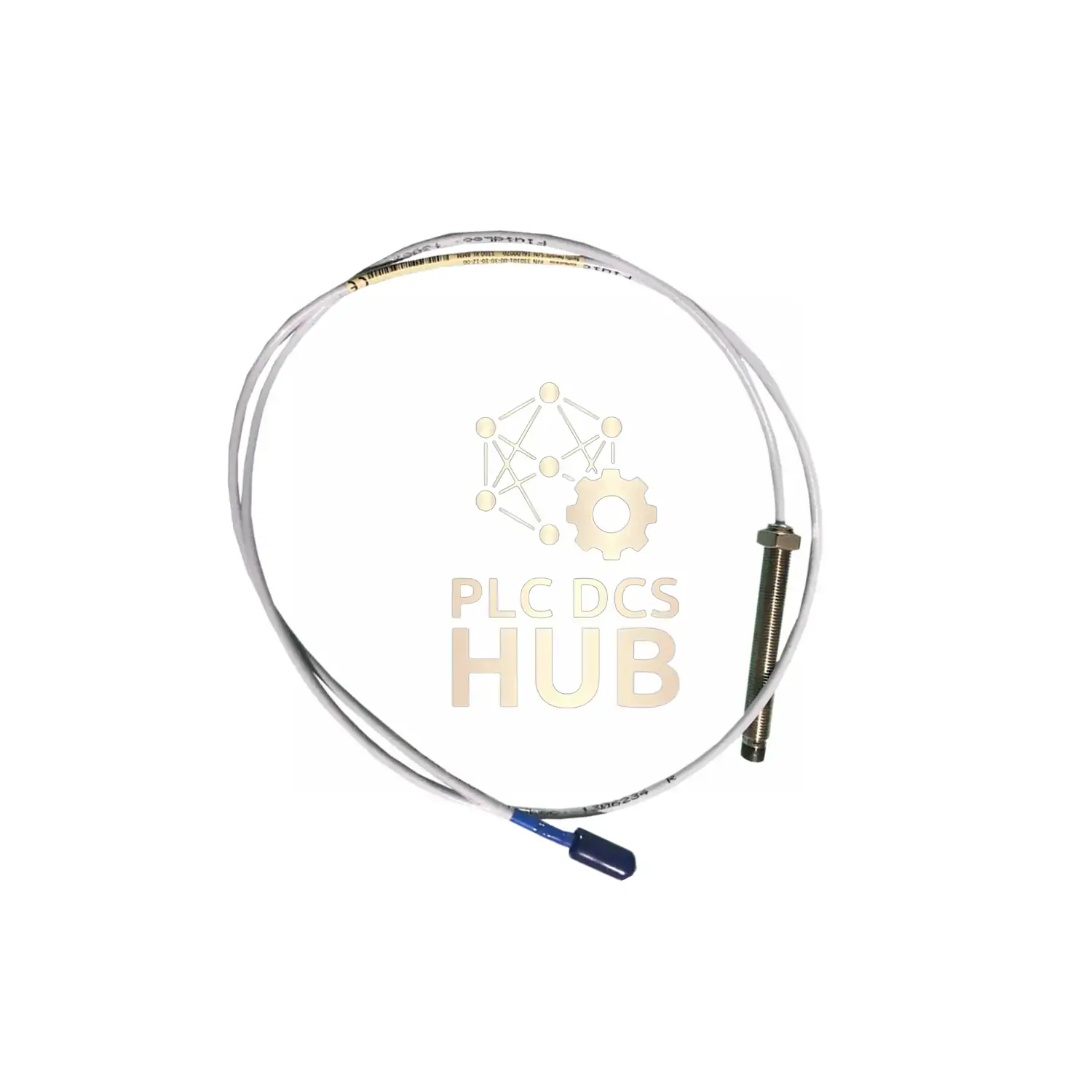

330702-00-30-90-02-00 XL Proximity Probe – Industrial-Grade Vibration Monitoring

Probe Highlights

• Armored design for tough environments
• Wide temperature range (-51°C to +177°C)
• Stainless steel body resists corrosion
• Easy-click connector for fast setup
• Made in USA quality

Product Identification

Full part number: 330702-00-30-90-02-00

Configuration breakdown:

BASE → 330702 (1/2-20 UNF thread)
│
├── UNTHREADED → 00 → 0.1 inch
├── CASE → 30 → 2.0 inch
├── CABLE → 90 → 1.0 meter
├── CONNECTOR → 02 → ClickLoc
└── APPROVAL → 00 → Standard

Key Specifications

• Resistance: 5.9Ω ±0.5Ω
• Weight: 0.17 kg (0.37 lbs)
• Cable type: 75Ω triaxial
• Max torque: 45.2 N•m (400 in•lb)
• Bend radius: 25.4 mm (1.0 in)
• Thread engagement: 0.750 in max

Shipping & Warranty

• Global shipping: FedEx, UPS, DHL
• Tracking provided for all orders

Expert Questions Answered

• Q: What’s the cable insulation material?
  A: Fluoroethylene propylene (FEP) for maximum durability.
• Q: Can this probe handle high-pressure environments?
  A: Features Viton O-ring seals for differential pressure protection.
• Q: What’s the minimum installation temperature?
  A: Don’t install below -34°C (-30°F) to preserve seals.
• Q: Is this probe waterproof?
  A: Weather-resistant but not designed for submersion.
• Q: What connector type does it use?
  A: Miniature coaxial ClickLoc connector with secure locking.
