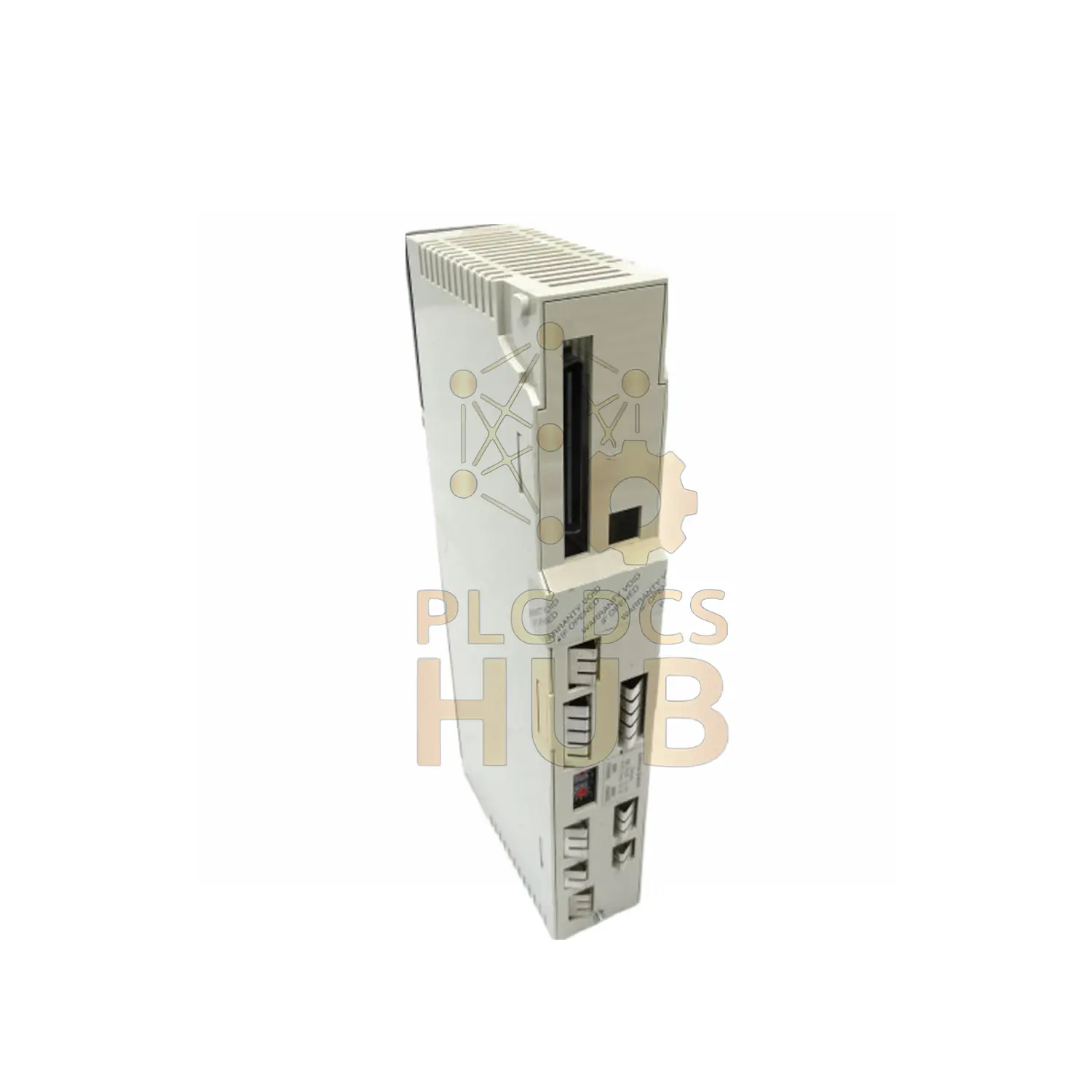

Schneider Modicon 140CPU65160 Unity Quantum Processor
Advanced Automation Control Platform
High-performance Unity processor for Modicon Quantum systems. Features 266MHz processing, dual local racks, and extensive I/O capacity. Ideal for complex industrial automation applications.
Enhanced Technical Specifications
- Processing Speed: 0.045-0.5 µs per instruction
- Memory Capacity: 1MB RAM + 8MB expandable via PCMCIA
- Network Support: 3 Modbus Plus networks + Ethernet
- I/O Handling: 31,744 remote discrete I/O points
Detailed Performance Parameters
| Instruction Throughput | 20K instructions/ms (Boolean) |
| System Overhead | 1ms (master task), 0.2ms (fast task) |
| Analog I/O Capacity | Unlimited local, 1,984 remote points |
| Ethernet Connections | 6 TCP/IP + router functionality |
| Backplane Current | 2760 mA @ 5V DC |
| USB Port | 1 port for programming |
| Hot Standby | Supported with redundancy module |
Environmental & Certification
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Certifications: CE, CSA, UL, GOST, Marine
- Hazardous Locations: Class 1 Div 2, ATEX Zone 2
- Vibration Resistance: 2g @ 10-150Hz (IEC 60068-2-6)
Communication Interfaces
| Port | Type | Function |
|---|---|---|
| Port 1 | RJ45 | Ethernet TCP/IP |
| Port 2 | RJ45 | Modbus |
| Port 3 | SUB-D 9 Female | Modbus Plus |
| Port 4 | USB | Programming |
Frequently Asked Questions
Q: Supported programming software?
A: Unity Pro (versions 11.0 and above)
Q: Redundancy configuration?
A: Hot standby with 140CPS11400 module
Q: Maximum analog I/O resolution?
A: 16-bit for standard modules
Q: Real-time clock accuracy?
A: ±2 minutes/month at 25°C
Q: Firmware update method?
A: Via Unity Pro software over Ethernet
Q: PCMCIA card compatibility?
A: Type I/II flash memory cards (up to 8MB)
Comparison with Alternative Models
| Feature | 140CPU65160 | 140CPU31110 | 140CPU43412 |
|---|---|---|---|
| Clock Speed | 266 MHz | 40 MHz | 66 MHz |
| Memory | 1MB + 8MB expandable | 256kB | 896kB |
| Ethernet Ports | 1 integrated | None | None |
| I/O Capacity | 31,744 remote points | 1,024 points | 500 I/O per network |
| Instruction Speed | 0.045µs (Boolean) | 0.5µs (Boolean) | 0.1ms/k (LL984) |
| Details | Current model | View 140CPU31110 | View 140CPU43412 |
Physical Specifications
- Dimensions: Standard Quantum module size
- Weight: 1.2 kg (2.65 lb)
- Mounting: DIN rail or panel mount
- LED Indicators: Run, Fault, Battery, Comms
