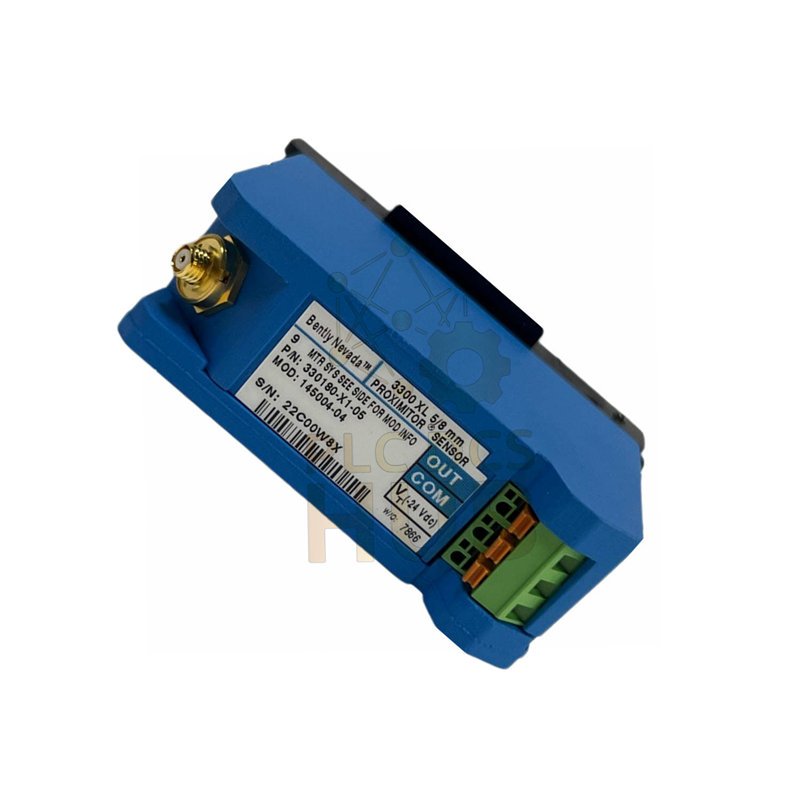

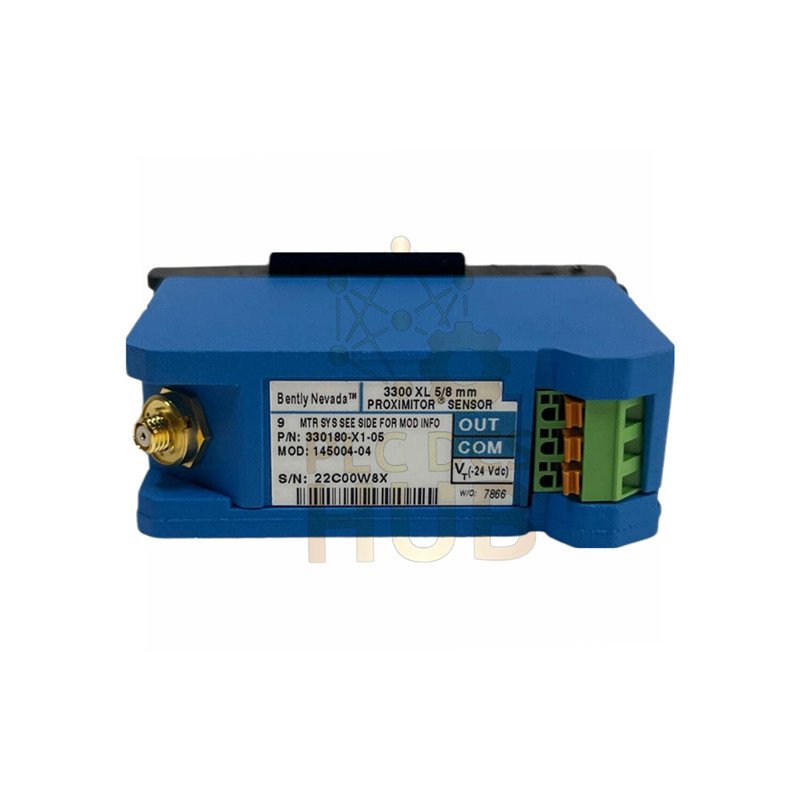

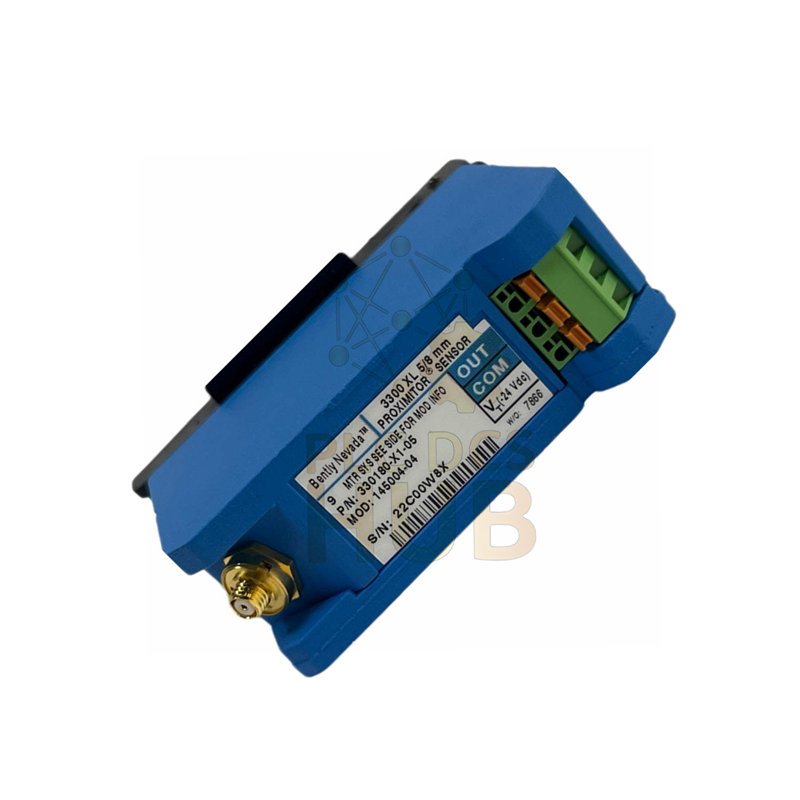

Description
Product Overview
- Brand: Bently Nevada
- Model: 145004-04
- Series: 3300 XL
- Type: Proximity Probe Sensor
- This probe measures shaft movement with high stability.
- It supports critical rotating equipment monitoring.
- The design fits harsh industrial environments.
Main Selling Points
- Wide measurement range for accurate shaft position.
- High temperature rating supports hot zones.
- Stable voltage output for control systems.
- API compliant design for critical machinery.
Measurement and Electrical Data
- Measurement Range: 0 to 80 mils, equal to 0 to 2 mm
- Output Voltage: −2 to −18 VDC
- Supply Voltage: −24 VDC nominal
- Frequency Response: DC to 10 kHz
- Signal Type: Linear voltage proportional to distance
- Repeatability: Within 0.25 percent of reading
- Response Time: Less than 1 millisecond
Mechanical and Environmental Limits
- Probe Diameter: 8 mm
- Cable Length Options: 0.5 to 9 meters
- Housing Material: Stainless steel
- Operating Temperature: −34 °C to +177 °C
- Thermal Drift: Minimal across rated range
- Resistance to Oil and Moisture: High
Accuracy and Standards
- System Accuracy: ±1 percent of full scale
- Linearity: Optimized for vibration analysis
- Industry Standards: ISO 10816 and API 670
- Country of Origin: Made in U.S.A.
Installation Guidance
- Install with proper gap adjustment.
- Use approved extension cables.
- Verify polarity before powering.
- Keep cables away from strong EMI sources.
Typical Applications
- Turbine shaft displacement monitoring
- Compressor thrust position detection
- Motor shaft movement analysis
- Critical machinery protection systems
Professional FAQ
- Is this probe suitable for high-speed machines?
- Yes. It supports fast shaft movement with stable output.
- How do I select the correct cable length?
- Choose the shortest length that meets routing needs.
- Can this probe work with older 3300 systems?
- Yes. It is backward compatible when properly configured.
- What should be checked during replacement?
- Confirm probe size, range, and power supply.
- Buying advice for new installations?
- Match probe range to expected shaft movement.
Packaging, Warranty and Shipping
- Original industrial packaging included.
- Warranty: 12 months.
- Worldwide shipping via FedEx, UPS, or DHL.
