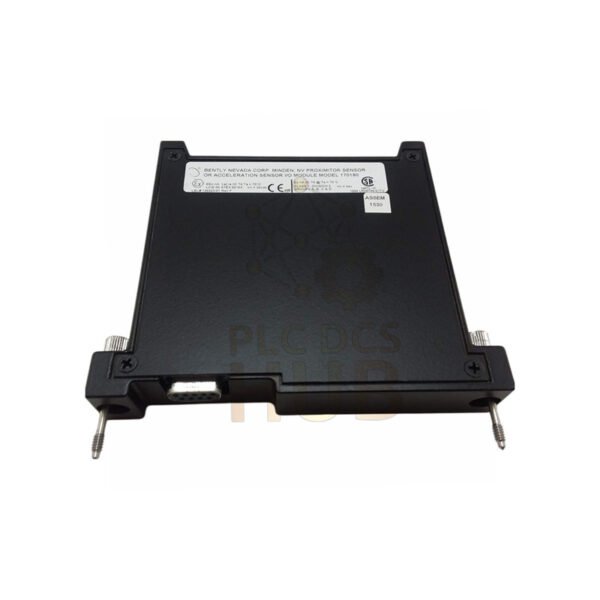

170180-01-00 Bently Nevada External Transducer I/O Module

Description

Product Overview

• Bently Nevada 170180-01-00 is an external transducer I/O module.
• It belongs to the 1701 Field Monitor system.
• The module converts raw sensor signals into stable monitor inputs.
• It supports accurate machinery condition evaluation.
• The design targets industrial reliability and signal clarity.

Core Technical Architecture

• Signal Accuracy Layer
  • Direct accuracy
    • 1 percent of full-scale maximum
  • Direct resolution
    • 0.1 percent of full-scale
  • Setpoint resolution
    • 0.5 percent of full-scale
• Gap Measurement Path
  • Gap accuracy
    • ±20 mV across -1 to -23 V
  • Gap resolution
    • 1 mV signal step
  • Stable performance at constant temperature
• Signal Processing Behavior
  • Flex read and write speed
    • Equal or faster than 25 milliseconds
  • Buffered output distance
    • Up to 30 meters cable length
  • Output impedance
    • 200 ohms nominal

Electrical Characteristics

• Power input sources
  • -24 VDC supply
  • +5 VDC logic power
  • Supplied by 1701 power module
• Total power usage
  • 1.5 watts without connected transducers
• Designed for low heat generation

Mechanical Construction

• Form factor
  • Compact vertical I/O module
• Physical size
  • Height 127 mm
  • Width 21.6 mm
  • Depth 105 mm
• Module weight
  • 314 grams

Environmental Endurance

• Operating temperature
  • -20°C to +70°C
• Storage temperature
  • -40°C to +85°C
• Humidity tolerance
  • 5 to 95 percent non-condensing
• Designed for control cabinet installation

Additional Performance Advantages

• Low signal drift under stable temperature.
• Fast data update for protection logic.
• High noise rejection for long cable runs.
• Consistent readings across all channels.
• Optimized for continuous monitoring duty.

Typical Use Cases

• Proximity probe signal conditioning
• Vibration and position monitoring systems
• Rotating machinery protection
• Plant condition monitoring upgrades
• OEM skid integration projects

Installation Notes

• Install only in approved 1701 monitor racks.
• Ensure correct power bus alignment.
• Keep signal wiring away from high-voltage lines.
• Verify channel assignment during setup.

Package and Warranty

• Package includes one I/O module only.
• 12-month warranty from shipment date.
• Fast global shipping via FedEx, UPS, or DHL.

FAQ

• Can this module improve signal stability?
  • Yes. It reduces noise before monitor processing.
• Is this model suitable for retrofit projects?
  • Yes. It fits existing 1701 monitor systems.
• What should I check before ordering?
  • Confirm power supply type and rack compatibility.
• Does cable length affect accuracy?
  • Performance remains stable within rated distance.
• Is this module used for protection or monitoring?
  • It supports both when paired with monitors.
