Description

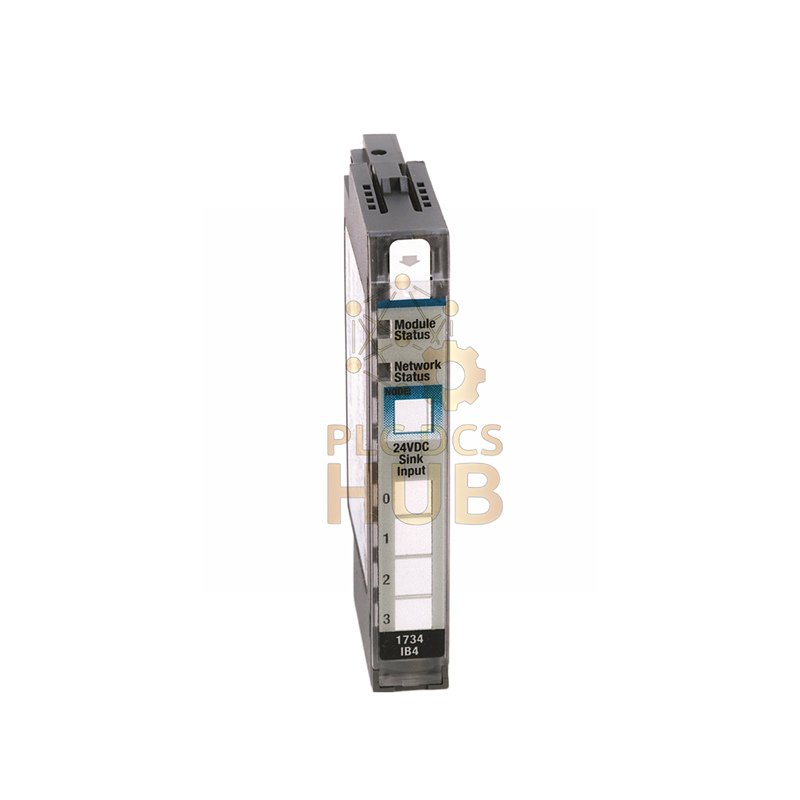

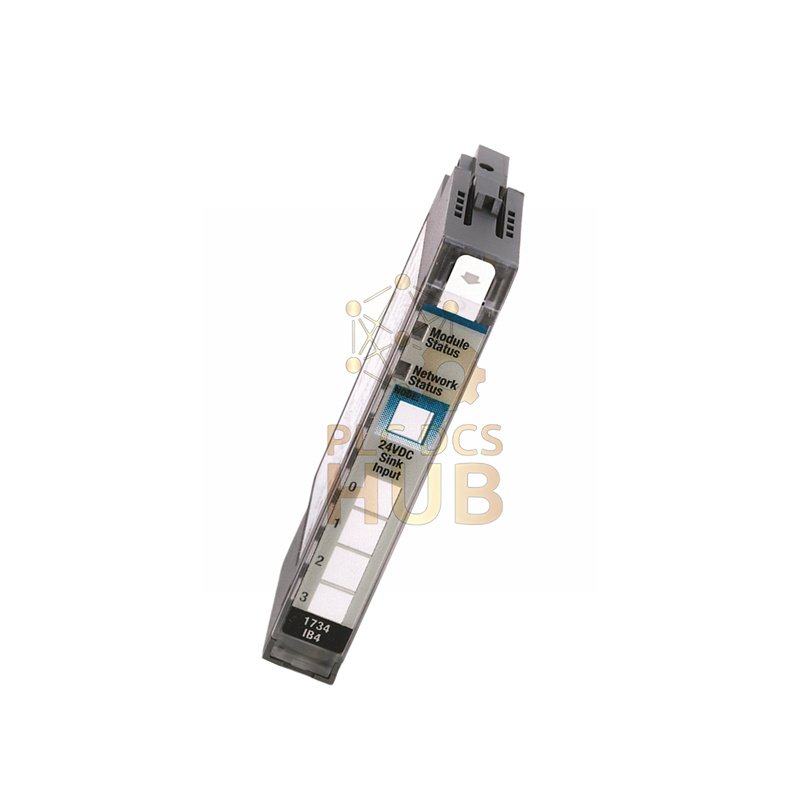

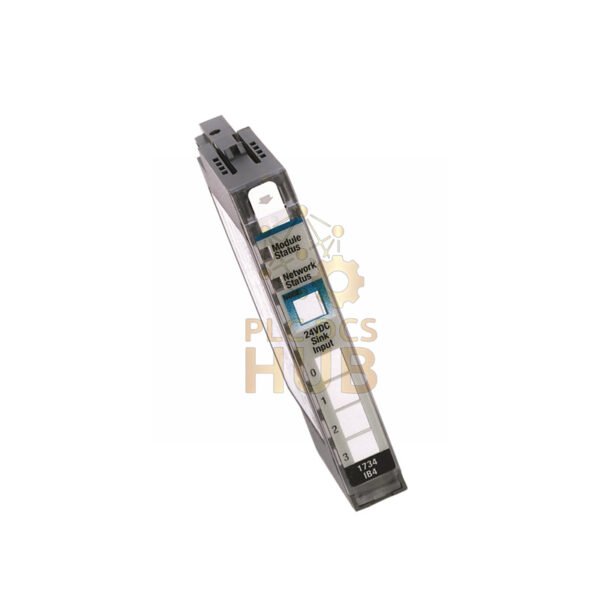

Allen-Bradley 1734-IB4D: 4-Channel Sinking DC Input Module with Diagnostics
The Allen-Bradley 1734-IB4D is a compact and versatile digital input module from the POINT I/O series by Rockwell Automation. It offers four sinking DC inputs with diagnostic capabilities, making it ideal for industrial automation applications. For detailed setup and configuration instructions, download the user manual here.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1734-IB4D
- Series: POINT I/O
- Input Type: 24V DC Sinking
- Number of Inputs: 4
- Input Current: 5 mA maximum
- POINTBus Current: 50 mA
- Power Dissipation: 1.9 BTU/hour
- Operating Voltage: 10–28.8V DC
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Dimensions: 2.2″ x 0.47″ x 2.97″
- Weight: 1.14 ounces.
Installation Guidelines
- Use a screw torque of 0.8 N·m (7 lb-in) for terminal connections.
- Ensure operating voltage remains within 10–28.8V DC for optimal performance.
- Mount the module in environments free from excessive vibration or moisture.
Packaging Contents
- One 1734-IB4D input module
- Removable Terminal Block (RTB)
- Mounting base
- Shipping via FedEx, UPS, or DHL
Frequently Asked Questions (FAQ)
- What networks support the 1734-IB4D?
It works with ControlNet, DeviceNet, EtherNet/IP, and other open industrial networks. - What is the input current rating?
Each input channel has a maximum current of 5 mA. - Can I mount this module vertically?
Yes, the module supports both horizontal and vertical mounting.
