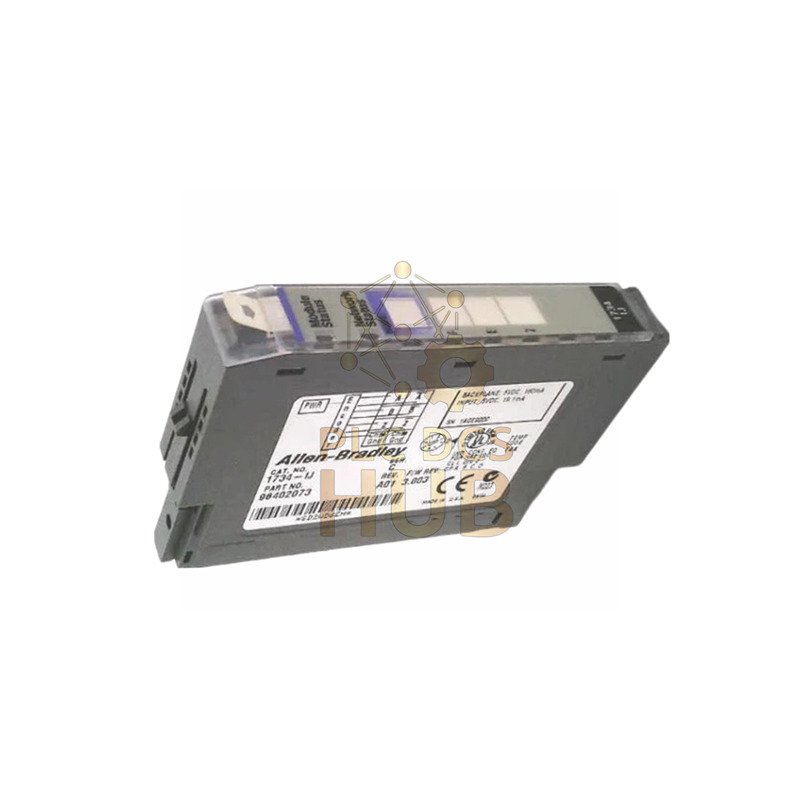

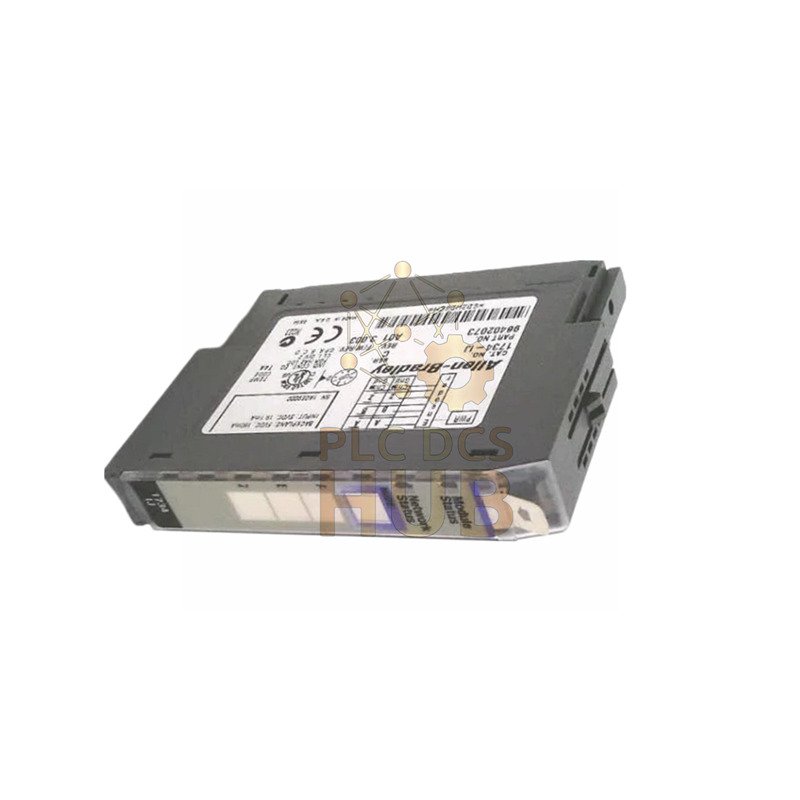

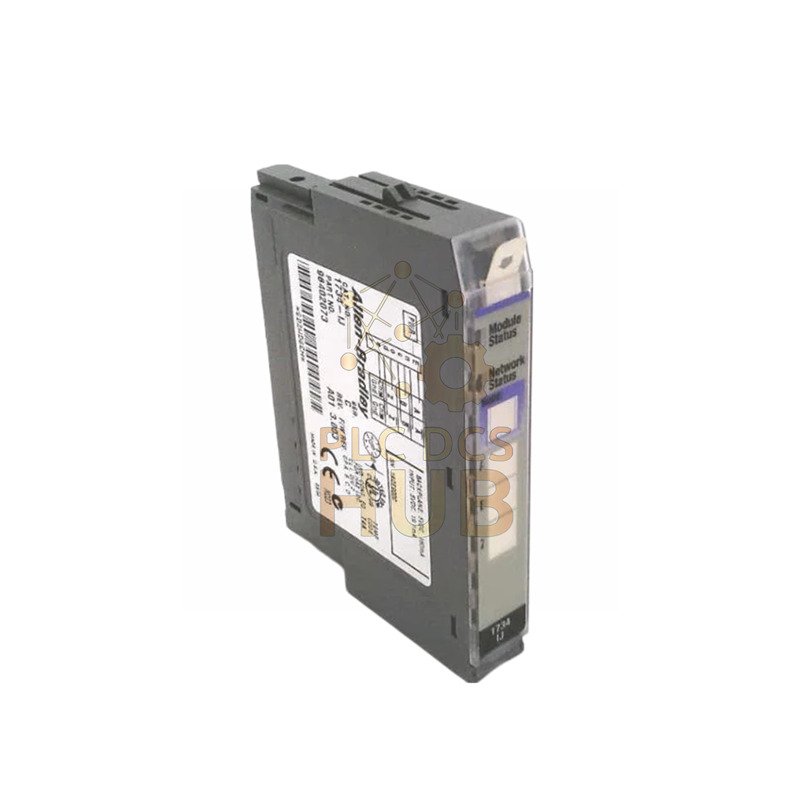

Allen-Bradley 1734-IJ | High-Speed Encoder Interface Module
Get a quote today! This high-performance encoder module includes our 12-month warranty and ships globally via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1734-IJ is a specialized module for connecting incremental encoders. It reads high-speed position signals from rotary encoders. It is perfect for motion control and precision measurement applications.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1734-IJ
- Series: POINT I/O Encoder Module
- Module Type: Incremental Encoder Interface
- Input Channels: A, B, Z phases
- Max Frequency: 1 MHz (1,000,000 counts per second)
- Voltage Rating: 5V DC (nominal)
- Input Voltage Range: 4.5-6V DC
- Isolation Voltage: 50V continuous
- Power Consumption: 1.1W
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Count Range: 24-bit (0 to 16,777,215)
- Key Switch Position: 2
- Terminal Base Compatibility: 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S
- Dimensions: 56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in)
- Weight: 36g (0.08 lbs)
Installation & Compatibility
The 1734-IJ mounts on standard 35mm DIN rail. It requires a POINT I/O communication adapter. It works with Allen-Bradley ControlLogix and CompactLogix controllers. Use 22-14 AWG wire for connections.
Frequently Asked Questions
Q1: What types of encoders can I connect to this module?
A1: You can connect any incremental encoder with A, B, and Z outputs that operates at 5V DC.
Q2: What is the maximum counting speed?
A2: The module supports counting speeds up to 1 million counts per second (1 MHz).
Q3: Can I use this module for position control?
A3: Yes, it provides precise position feedback for closed-loop motion control applications.
Q4: What does the Z channel input do?
A4: The Z channel provides a reference pulse (once per revolution) for establishing a home position.
Q5: How do I know if my encoder signals are being received?
A5: The module has yellow LED indicators for each channel (A, B, Z) that flash when signals are detected.
