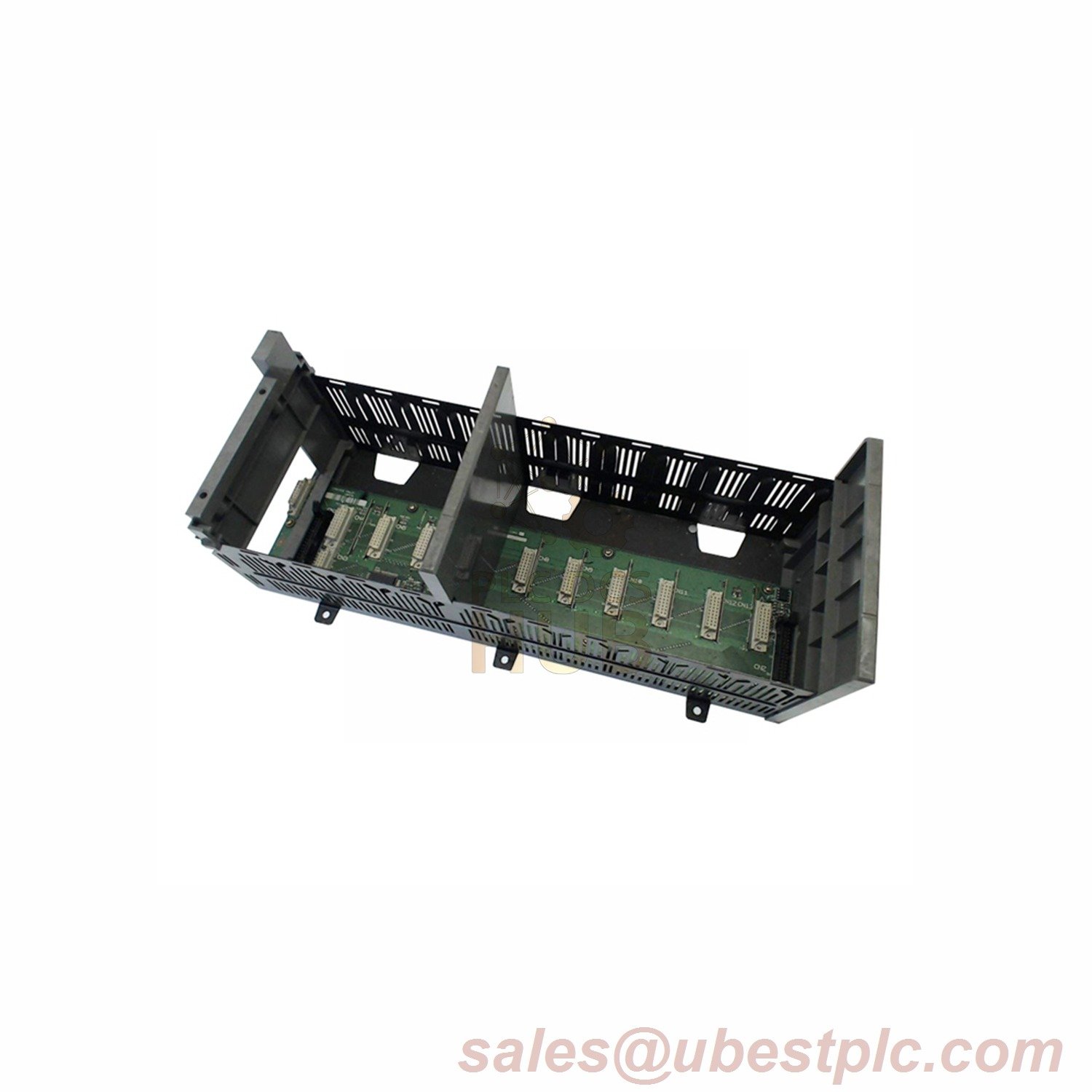

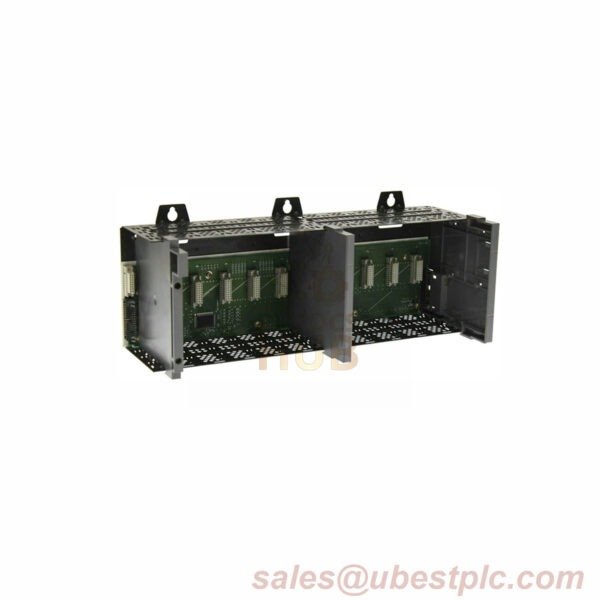

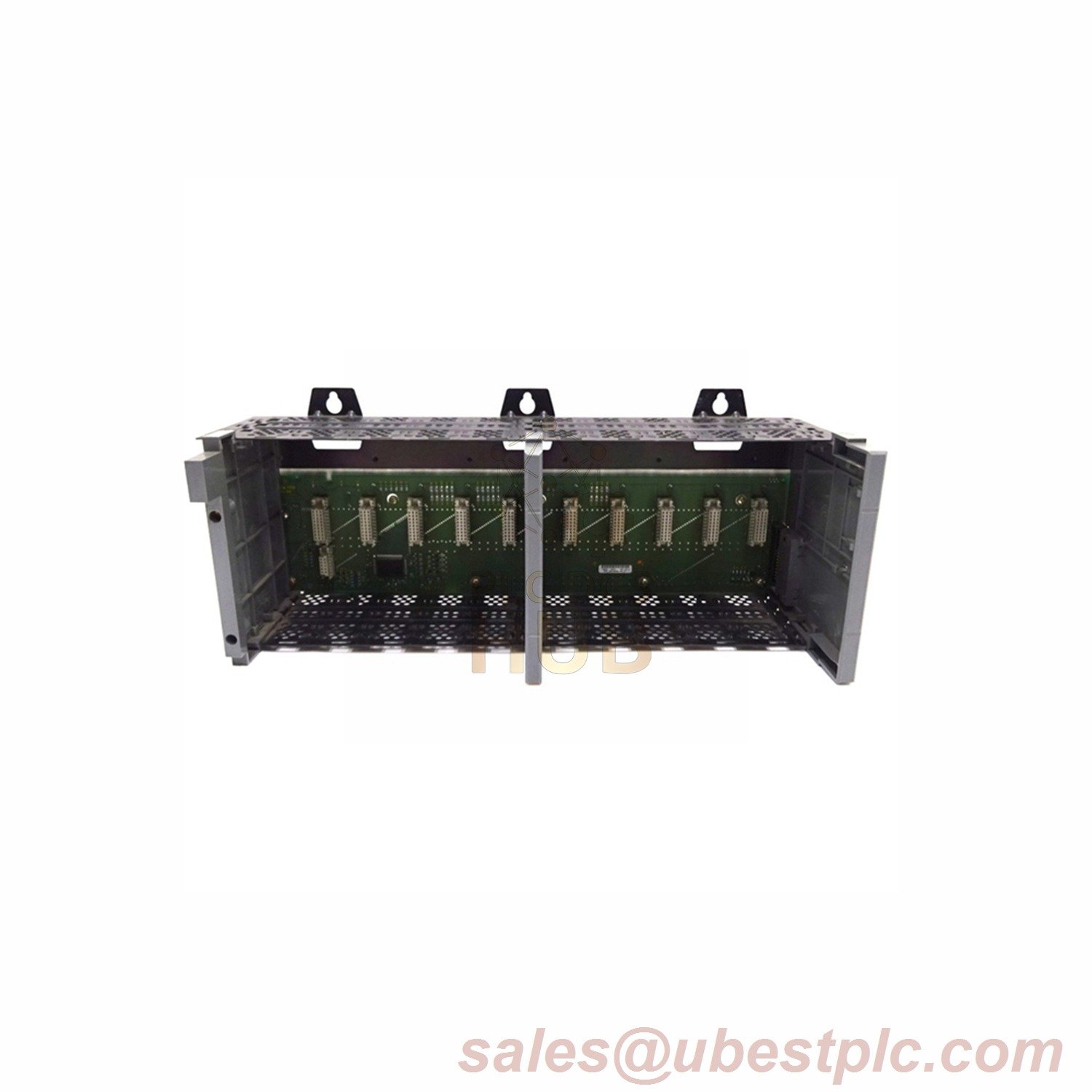

The Allen-Bradley 1746-A10 is a 10-slot modular chassis designed for the SLC 500 PLC series by Rockwell Automation. It provides the backbone for system expansion, allowing seamless integration of up to 10 I/O modules while maintaining reliable power distribution. Ideal for industrial automation applications, this chassis supports panel mounting and ensures efficient operation within 0°C to 60°C.
Technical Data
| Parameter | Specification |
|---|---|
| ???? Brand | Allen-Bradley (Rockwell Automation) |
| ???? Model | 1746-A10 |
| ???? Series | SLC 500 |
| ???? Slots | 10 |
| ???? Expansion Chassis | Supports up to 2 additional chassis |
| ???? Expansion Cables | 1746-C9, 1746-C7 |
| ???? Mounting Type | Panel Mount |
| ???? Weight | 3.3 lbs (1.5 kg) |
| ???? Dimensions | 6.73 x 15.34 x 5.71 inches |
| ???? Backplane Current | 5.1V DC @ 10A, 24V DC @ 2.88A |
| ???? Thermal Dissipation | 2.5 BTU/hour @ 28.8V DC |
| ???? Operating Temperature | 0°C to +60°C |
| ???? Storage Temperature | -40°C to +85°C |
| ???? UPC | 10662468302842 |
Click the official datasheet to discover more details: SLC 500 Product Family
