Description

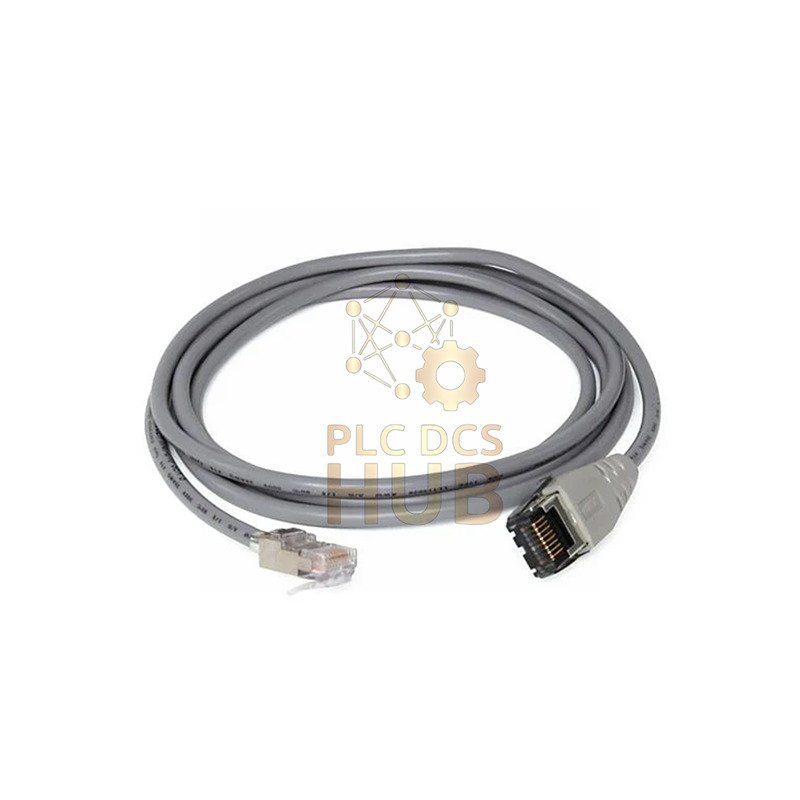

Allen-Bradley 1747-C10 SLC 500 Programming Cable

The Allen-Bradley 1747-C10 is a dedicated 6-foot programming and communication cable for SLC 500 controllers. It ensures reliable connectivity for configuration and data transfer tasks. For complete compatibility information and usage instructions, download the technical manual here.

Key Technical Specifications

• Brand: Allen-Bradley

• Model: 1747-C10

• Cable Type: Programming/Communication Cable

• Connector Type: <span style=”color:red;”>RJ-45</span>

• Cable Length: 6 Feet (1.83 meters)

• Compatibility: SLC 500 Series Controllers

• Shielding: Unshielded twisted pair (UTP)

• Conductor Gauge: 24 AWG

• DC Resistance: 8.5 ohms/100m max

• Capacitance: 52 pF/m max

Environmental & Durability Ratings

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Humidity Range: 5% to 95% (non-condensing)

• Minimum Bend Radius: 4x cable diameter

• Pull Tension: 25 lbs (11.3 kg) maximum

• Voltage Rating: 30V AC/DC maximum

• Current Rating: 1.5A maximum

Frequently Asked Questions (FAQ)

• Can I use this cable for firmware updates?
  Yes, the cable supports both programming and firmware update functions.

• What is the maximum reliable data transfer distance?
  The 6-foot length provides optimal performance for typical installation requirements.

• Can I connect multiple cables together for longer reach?
  We do not recommend extending beyond 6 feet as it may affect signal integrity.

• Is this cable compatible with MicroLogix controllers?
  No, this cable is specifically designed for SLC 500 series controllers only.

• What maintenance does this cable require?
  Regularly inspect for physical damage and keep connectors clean for optimal performance.
