Description

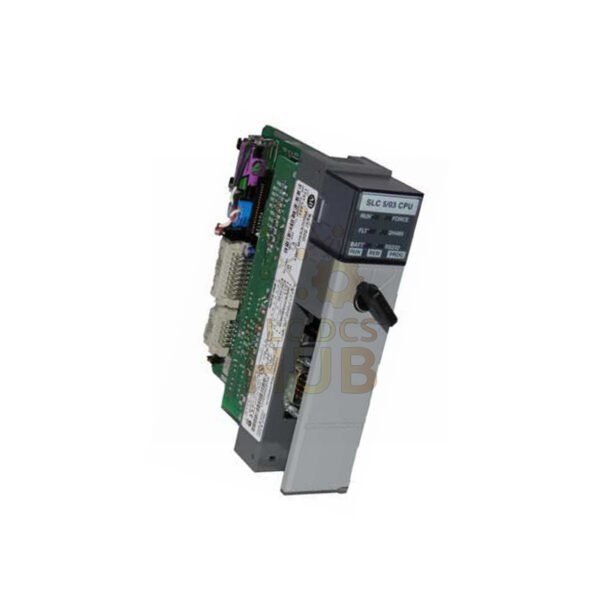

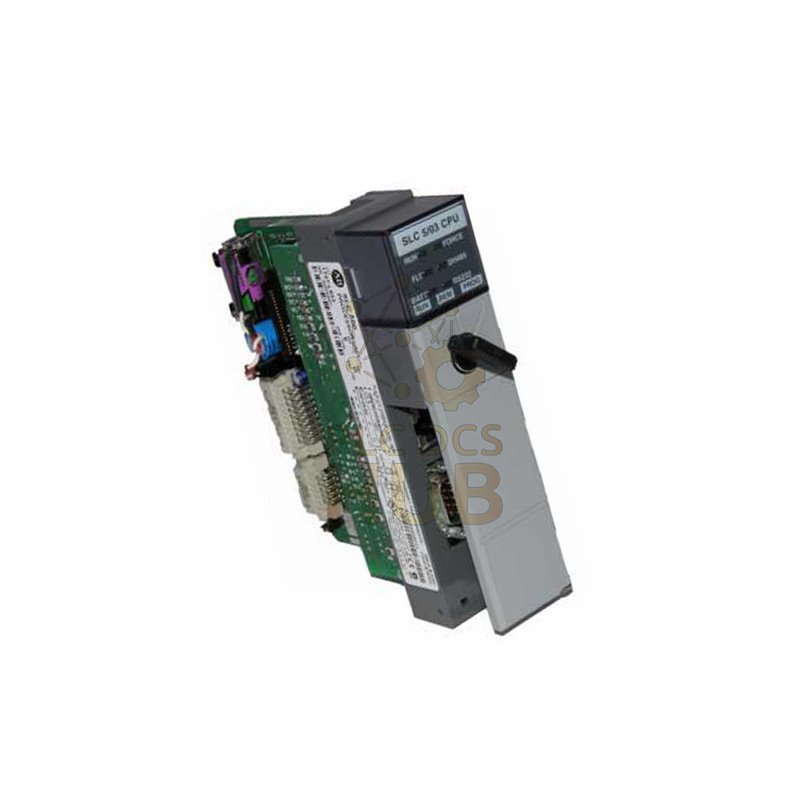

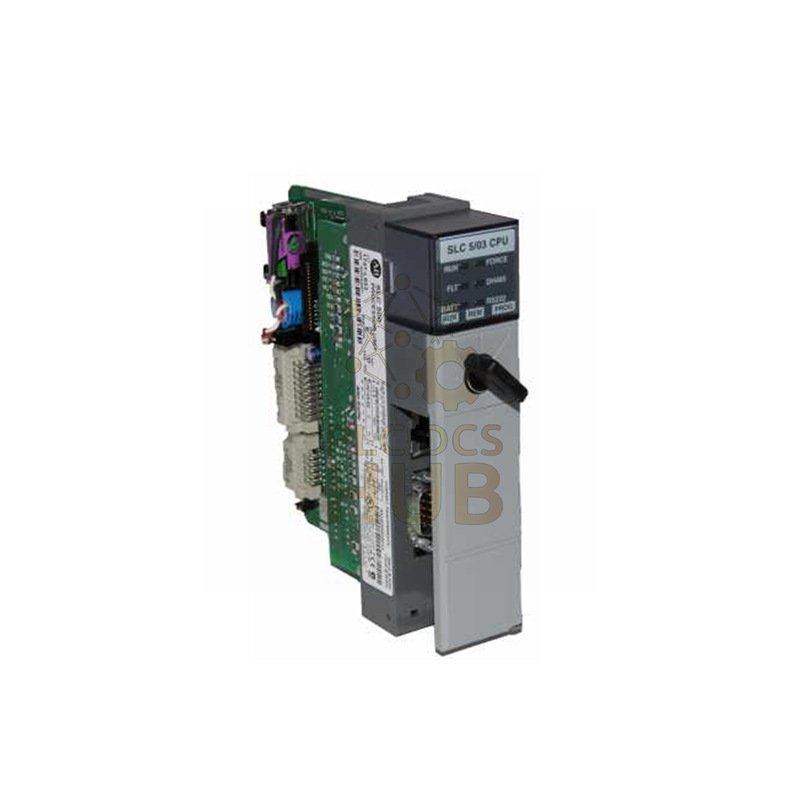

Allen-Bradley 1747-L533 SLC 5/03 Processor | 32K Memory
Power your small to mid-size automation projects with the reliable 1747-L533 processor. This versatile SLC 5/03 unit offers robust control for applications like material handling, HVAC, and process control.
Get Started Now
- Download the complete installation and programming guide.
- Find wiring diagrams and full specifications.
- Download SLC 500 Manual Here
Detailed Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1747-L533
- Series: SLC 500
- Processor Type: SLC 5/03
- User Memory: 32,000 Words
- Max Digital I/O: 8192 Points (4096 In / 4096 Out)
- Program Scan Time: 1.0 ms per KWord
- I/O Scan Time: 0.225 ms
- Backplane Current: 500mA @ 5V DC; 175mA @ 24V DC
- Communication Ports: DH-485, RS-232 (Configurable)
- Backup Memory: Flash + Battery-Backed RAM
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Chassis Support: Up to 3 chassis, 30 module slots
Compatibility & Applications
- Perfect for stand-alone or distributed control systems
- Ideal for material handling, HVAC, and small process control
- Compatible with DeviceNet and Remote I/O scanner modules
- Works with 1761-NET-AIC interface converters
Frequently Asked Questions
- Q1: What is the main advantage of the 5/03 processor over the 5/02?
- A1: The 1747-L533 offers more memory (32K vs 8K), faster processing, and built-in DH-485 communication without a separate module.
- Q2: Can I connect this processor to a computer for programming?
- A2: Yes, you can use the RS-232 port with a 1747-CP3 cable or use the DH-485 port with a 1747-UIC interface for USB connection.
- Q3: Does this unit have a real-time clock?
- A3: Yes, the SLC 5/03 processor includes a built-in real-time clock and calendar for time-based operations.
- Q4: What type of backup memory does it use?
- A4: It uses both a battery-backed RAM and non-volatile Flash memory to protect your program against power loss.
- Q5: How many I/O modules can I connect?
- A5: The system supports up to 30 I/O module slots across a maximum of 3 local chassis.
Shipping & Warranty
We ship globally via FedEx, UPS, and DHL for fast delivery. This product is covered by our 12-month warranty for your peace of mind.
