Description

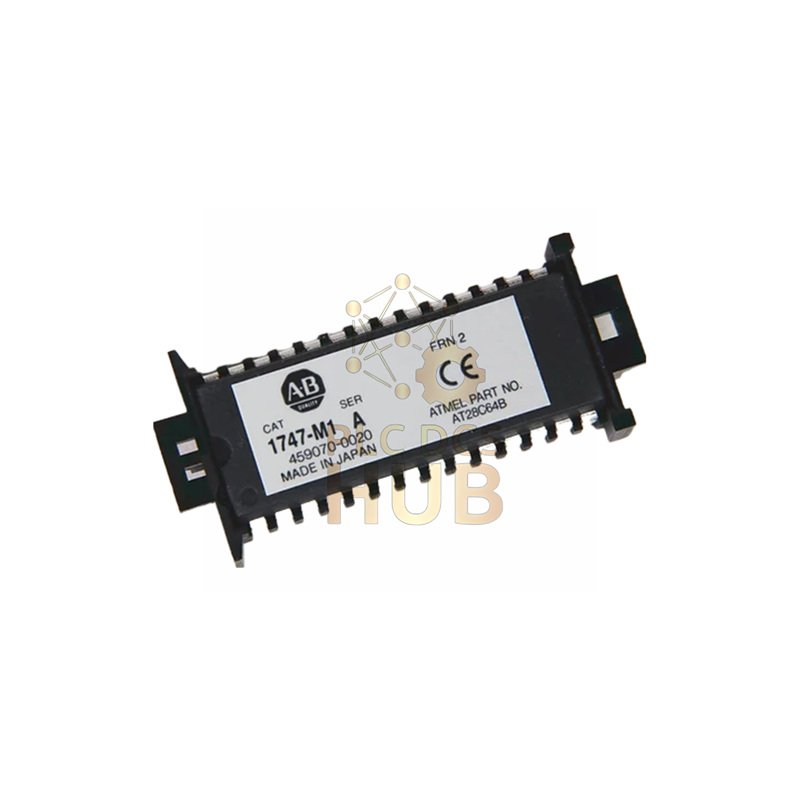

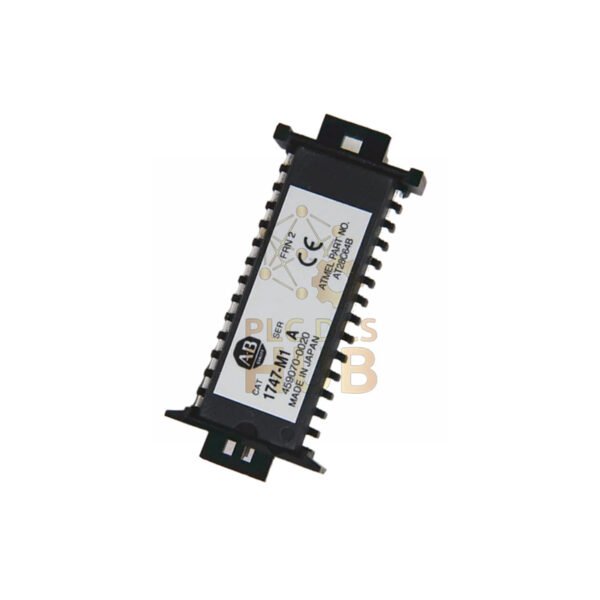

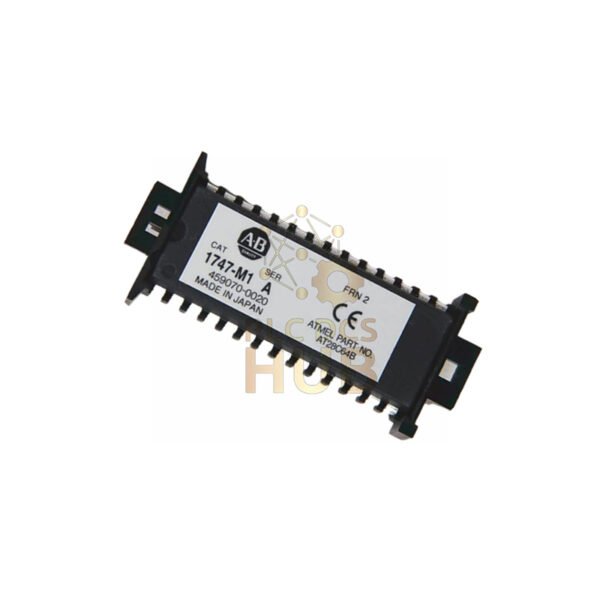

Allen-Bradley 1747-M15 SLC 500 Memory Module Adapter
The Allen-Bradley 1747-M15 provides essential memory adapter functionality for SLC 500 series processors. This crucial interface tool enables reliable programming and erasing of memory modules in industrial environments. Discover the full capabilities of this adapter by downloading our detailed technical guide.
Download Complete Product Specification Sheet
Core Product Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1747-M15
- Product Series: SLC 500 Memory Module Adapter
- Compatible Memory Type: Flash EEPROM Technology
- Memory Capacity: 64 kilobytes (64,000 Words)
- Supported Processors: SLC 5/03, SLC 5/04, SLC 5/05 Series
- Compatible Memory Module: 1747-M13 Series
- Adapter Dimensions: 6″ x 6″ x 3″ (LxWxH)
- Product Weight: 2 pounds (0.91 kilograms)
Environmental & Operating Specifications
- Operating Temperature Range: 0 to 60°C (32 to 140°F)
- Storage Temperature Range: -40 to 85°C (-40 to 185°F)
- Operating Humidity Range: 5% to 95% (non-condensing)
- Vibration Resistance: 1G @ 5-2000 Hz frequency
- Electrostatic Discharge Protection: Requires proper grounding during handling
- Interface Type: ZIF (Zero Insertion Force) socket compatible
Packaging & Shipping Details
- Genuine Allen-Bradley 1747-M15 Memory Module Adapter
- Protective packaging designed for industrial components
- Worldwide shipping via FedEx, UPS, and DHL express services
- Order tracking available for all shipment methods
Professional Frequently Asked Questions
- Q: What types of memory modules can I program with the 1747-M15 adapter?
A: The adapter specifically supports the Allen-Bradley 1747-M13 memory module for SLC processors. - Q: Do I need special equipment to use this memory adapter?
A: Yes, you require a commercial PROM programmer with a ZIF socket to utilize this adapter properly. - Q: Can this adapter be used with modern ControlLogix systems?
A: No, the 1747-M15 is specifically designed for SLC 500 series processors only. - Q: What ESD protection measures should I implement when using this adapter?
A: Always work in an ESD-safe area using grounded wrist straps and proper anti-static mats. - Q: Is the adapter compatible with all SLC 5/05 processor revisions?
A: The adapter maintains compatibility with all SLC 5/05, SLC 5/04, and SLC 5/03 processor models.
