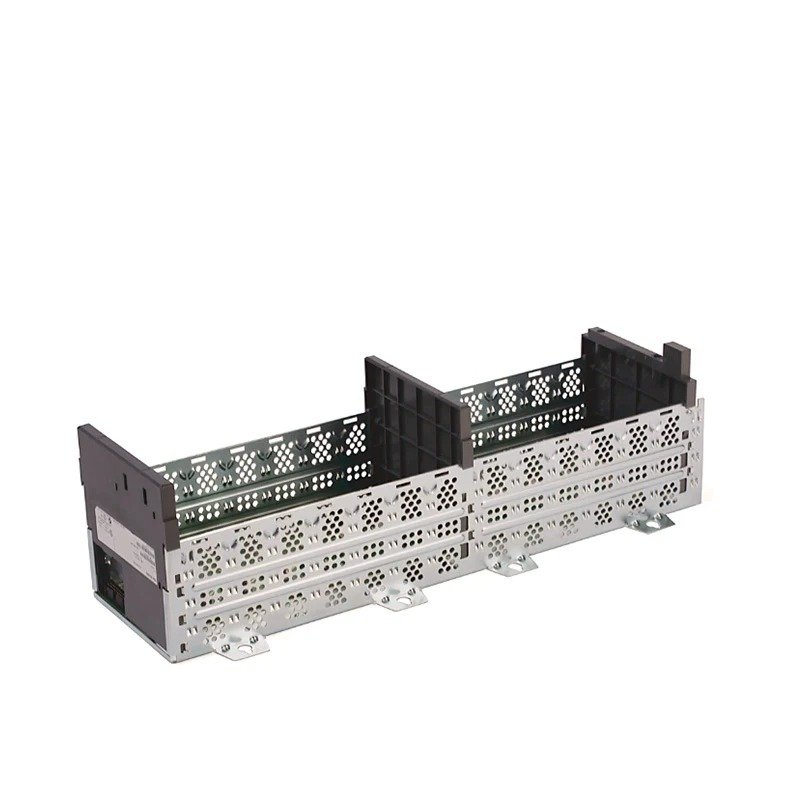

The Allen-Bradley 1756-A10 ControlLogix Chassis is an integral part of the ControlLogix system, offering a reliable platform for housing and connecting ControlLogix modules. With ten slots for module insertion, this chassis ensures seamless integration with various I/O, communication, and processor modules. Designed for industrial environments, it provides outstanding support with a wide operating temperature range and robust shock and vibration resistance. Featuring a panel mount design, the 1756-A10 is versatile, supporting different power supply configurations without occupying slot spaces.
Technical Data:
- Brand: Allen-Bradley
- Model: 1756-A10
- Type: ControlLogix Chassis
- Series: B & C (with different temperature ranges)
- Chassis Dimensions (HxWxD): 20 x 30 x 8 inches (50.8 x 76.2 x 20.3 cm)
- Weight: 3.2 lbs (1.45 kg)
- Mounting Type: Panel Mount
- No. of Slots: 10
- Operating Temperature (Series B): 0°C to +60°C (32°F to +140°F)
- Operating Temperature (Series C): -25°C to +60°C (-13°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Backplane Current Ratings:
- 1.5 A @ 1.2 VDC
- 4A/4A @ 3.3 VDC
- 15 A/6 A @ 5.1 VDC
- 2.8 A/2.8 A @ 24 VDC
- Power Dissipation: 5W (6.1 BTU/hr)
- Power Consumption: 1.8W (max)
- Vibration Resistance: 2G (10-500 Hz)
- Shock Rating: 30G (IEC 60068-2-27)
- Environmental Rating: T5 (North America) / T6 (Europe)
Click the official datasheet to discover more details: 1756 ControlLogix IO Modules Specifications
