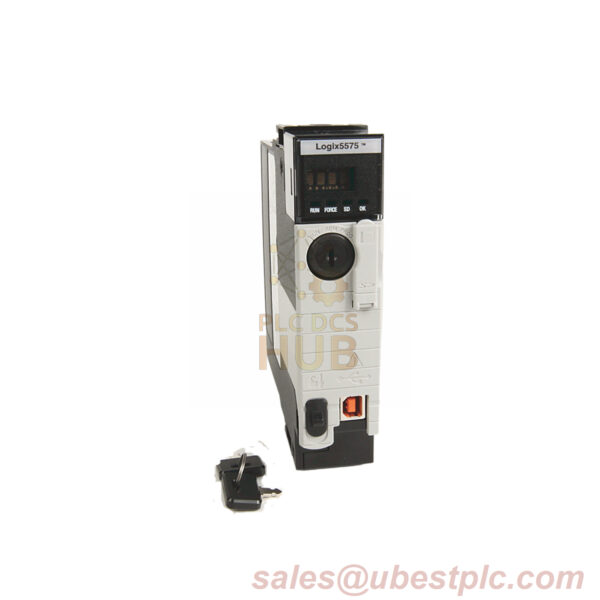

The Allen-Bradley 1756-L75 is a high-performance Programmable Automation Controller (PAC) from Rockwell Automation’s ControlLogix series. Designed for large-scale automation, it features 32MB of user memory, 0.98MB I/O memory, and supports up to 128,000 discrete I/O and 4,000 analog I/O points. This controller offers seamless integration into PlantPAx Distributed Control Systems (DCS), supports multiple programming languages, and ensures efficient data processing with high-speed communication interfaces.
???? Technical Data
| Parameter | Details |
|---|---|
| Brand | Allen-Bradley (Rockwell Automation) |
| Model | 1756-L75 |
| Series | ControlLogix |
| User Memory | 32MB |
| I/O Memory | 0.98MB |
| Max Digital I/O | 128,000 |
| Max Analog I/O | 4,000 |
| Communication Ports | 1x USB, supports multiple networks |
| Chassis Compatibility | 1756-A4, A7, A10, A13, A17 series |
| Power Supply Options | Standard & Redundant (PA75R, PB75R, PSCA2) |
| Current Draw (5.1V DC) | 800mA |
| Current Draw (1.2V DC) | 5mA |
| Power Dissipation | 2.5W |
| Thermal Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30V Continuous |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Shock Resistance | 30g (operating), 50g (non-operating) |
| Humidity | 5% to 95% (non-condensing) |
???? FAQ
1. What programming languages does the 1756-L75 support?
✔️ It supports Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC).
2. Can the 1756-L75 be used in a redundant configuration?
✔️ Yes, it supports redundant controllers for high-availability applications.
3. What communication options are available?
✔️ The controller supports EtherNet/IP, ControlNet, DeviceNet, SynchLink, Remote I/O, and Data Highway Plus.
4. What memory storage options does it have?
✔️ The 1756-L75 includes a 1784-SD1 1GB Secure Digital (SD) card for non-volatile memory storage.
5. What energy storage modules does it support?
✔️ It comes with three energy storage modules:
- 1756-ESMCAP (removable, pre-installed)
- 1756-ESMNSE (removable, no residual WallClockTime backup)
- 1756-ESMNRM (non-removable, disables USB & SD card use)
Click the official datasheet to discover more details: 1756 ControlLogix IO Modules Specifications
