1756-OA16K Allen-Bradley ControlLogix Coated AC Output Module | 16-Channel

Description

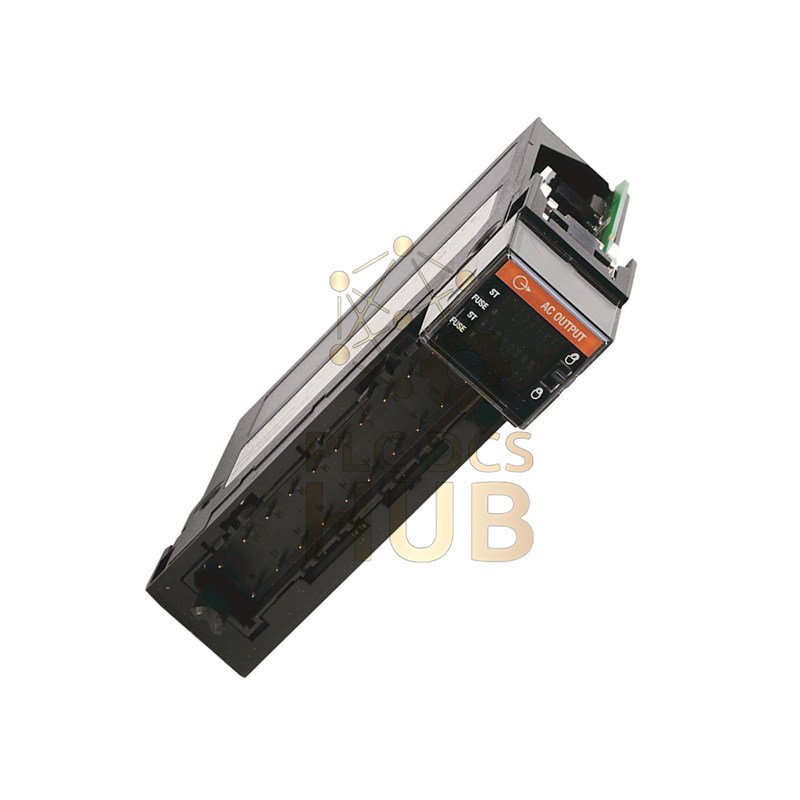

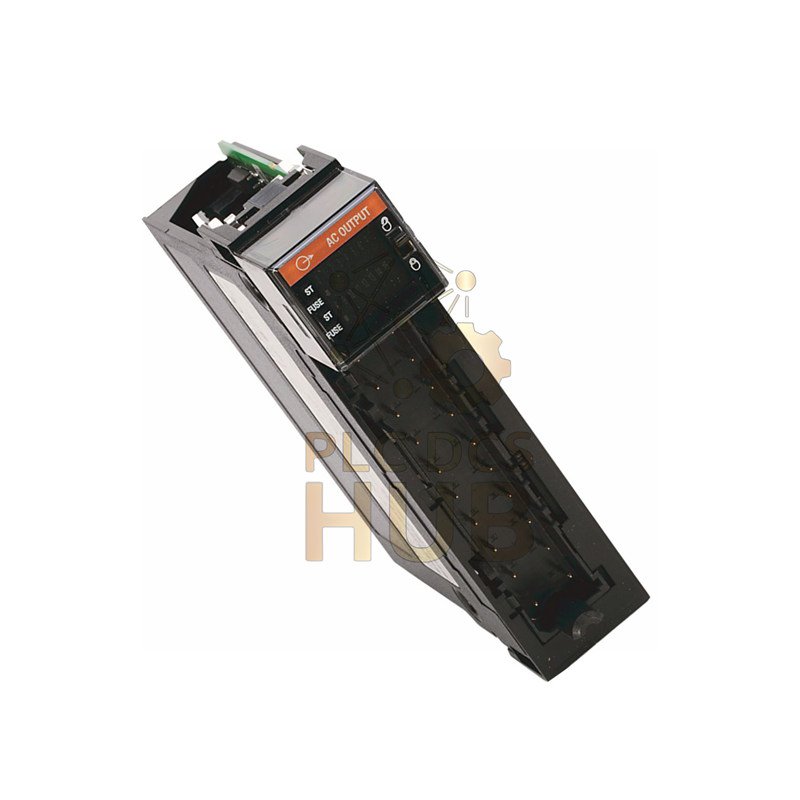

Allen-Bradley 1756-OA16K ControlLogix AC Output Module

Protect your control system with the Allen-Bradley 1756-OA16K. This ControlLogix AC output module features a special conformal coating. This coating helps protect against harsh environments. It offers 16 channels for reliable AC output control. The module works with 74-265V AC systems. It includes mechanical fusing for extra safety.

Download the full manual now: 1756 ControlLogix IO Modules Specifications.pdf

Key Features

• Brand: Allen-Bradley
• Series: ControlLogix
• Model: 1756-OA16K
• Special Feature: Conformal Coating
• Output Type: 16-Channel AC
• Voltage Range: 74-265V AC
• Mechanically Fused Outputs

Technical Specifications

• Output Current: 0.5A per point
• Total Module Current: 4A @ 60°C
• Operating Voltage: 74-265V AC
• Frequency: 47-63 Hz
• Backplane Current: 400mA @ 5V DC
• Power Dissipation: 6.5 Watts maximum
• Isolation Voltage: 50V continuous
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Terminal Blocks: 1756-TBSH, 1756-TBNH
• Protection Rating: Conformal Coated

What’s Included

• One (1) Allen-Bradley 1756-OA16K Output Module

Shipping Info

• We ship worldwide using FedEx, UPS, and DHL
• Fast delivery options available

Warranty

• 12-month quality guarantee
• Coverage for defects and malfunctions

FAQ

• What is conformal coating?
  It is a protective layer that guards against moisture and dust.
• What voltage range does it support?
  It works with 74-265V AC systems at 47-63 Hz.
• How many output points does it have?
  It provides 16 individually fused output channels.
• Is this module for harsh environments?
  Yes, the coating makes it suitable for tough conditions.
• What terminal blocks are compatible?
  Use 1756-TBSH or 1756-TBNH removable terminal blocks.
