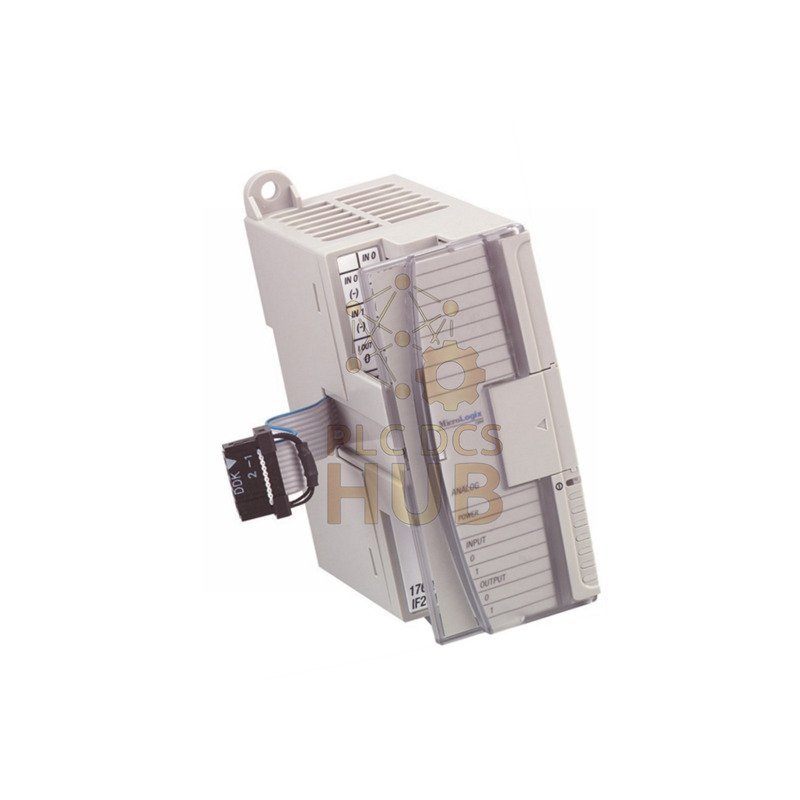

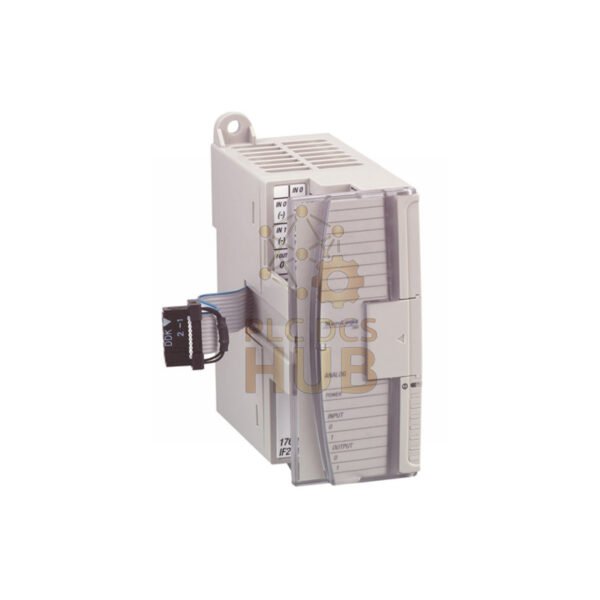

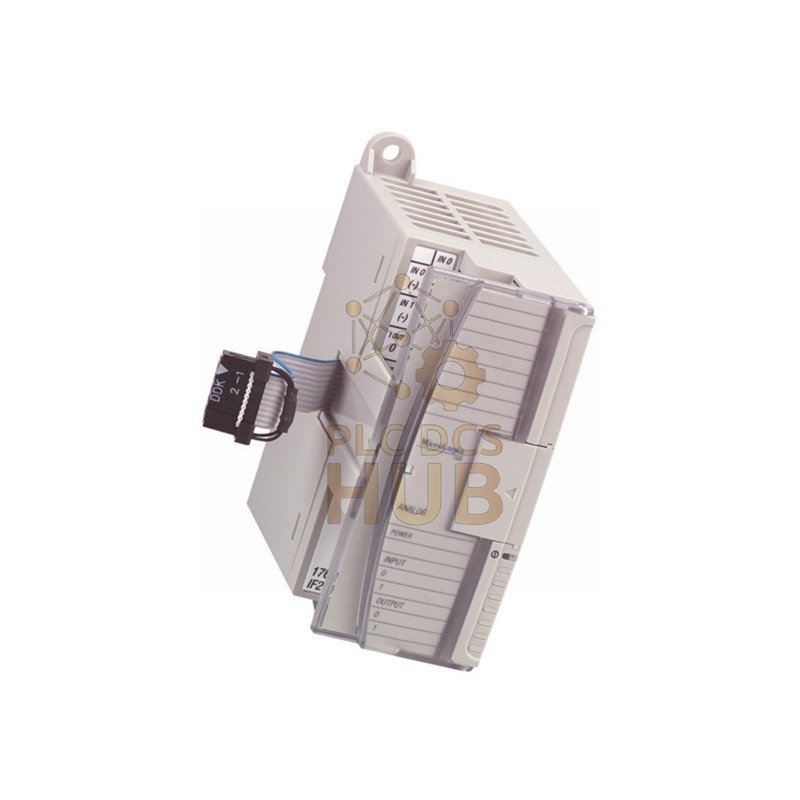

Allen-Bradley 1762-IQ8OW6: Combination I/O Module with Relay Outputs
The Allen-Bradley 1762-IQ8OW6 from Rockwell Automation is a versatile combination I/O module for MicroLogix systems. It integrates eight digital inputs and six relay outputs in a single compact unit. For complete installation and wiring diagrams, download the product manual here.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1762-IQ8OW6
- Series: MicroLogix
- Module Type: Combination Digital I/O with Relay Outputs
- Number of Inputs: 8 sink/source channels (2 groups of 4)
- Input Voltage Range: 10-30V DC @ 30°C; 10-26.4V DC @ 65°C
- Number of Outputs: 6 Form A (Normally Open) relay channels
- Output Voltage Range: 5-265V AC / 5-125V DC
- Contact Rating: 2.5A @ 240V AC; 2.0A @ 24V DC; 1.0A @ 125V DC
- Response Time: 8 ms (inputs); 10 ms (outputs)
- Backplane Current: 110 mA @ 5V DC; 80 mA @ 24V DC
- Heat Dissipation: 4.4-5.0 Watts
- Isolation: 1,500V AC (group to backplane)
- Operating Temperature: 0°C to 65°C (32°F to 149°F)
- Maximum Current: 8A per module (outputs)
- Dimensions: 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in)
Packaging Contents
- One 1762-IQ8OW6 combination I/O module
- Comprehensive installation and operation documentation
- Express shipping via FedEx, UPS, or DHL available
- All products include 12-month performance warranty
Frequently Asked Questions
- Can I mix AC and DC loads on the relay outputs?
Yes, each relay output independently handles either AC or DC loads within ratings. - What is the maximum distance from the power supply?
This module must install within six slots of the main system power supply. - Are the relay outputs isolated from each other?
No, all six relay outputs share a common connection point. - Can I use different input voltages on the same module?
All eight inputs must operate within the same 10-30V DC range. - What inductive loads can the relays handle?
The relays suit resistive and inductive loads up to the specified current ratings.
