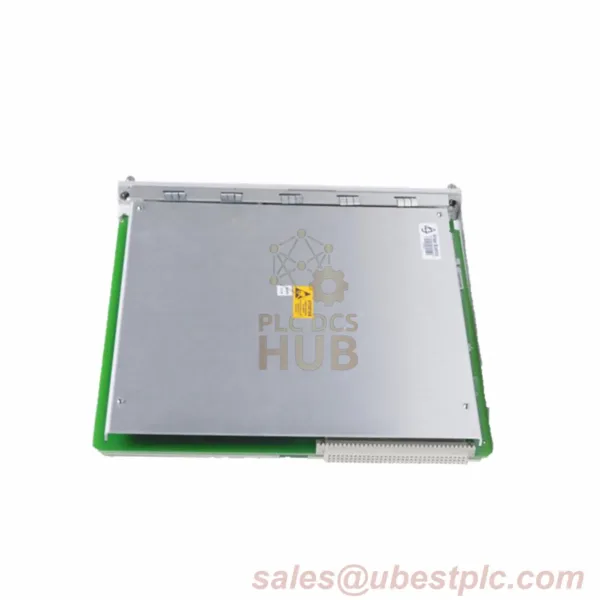

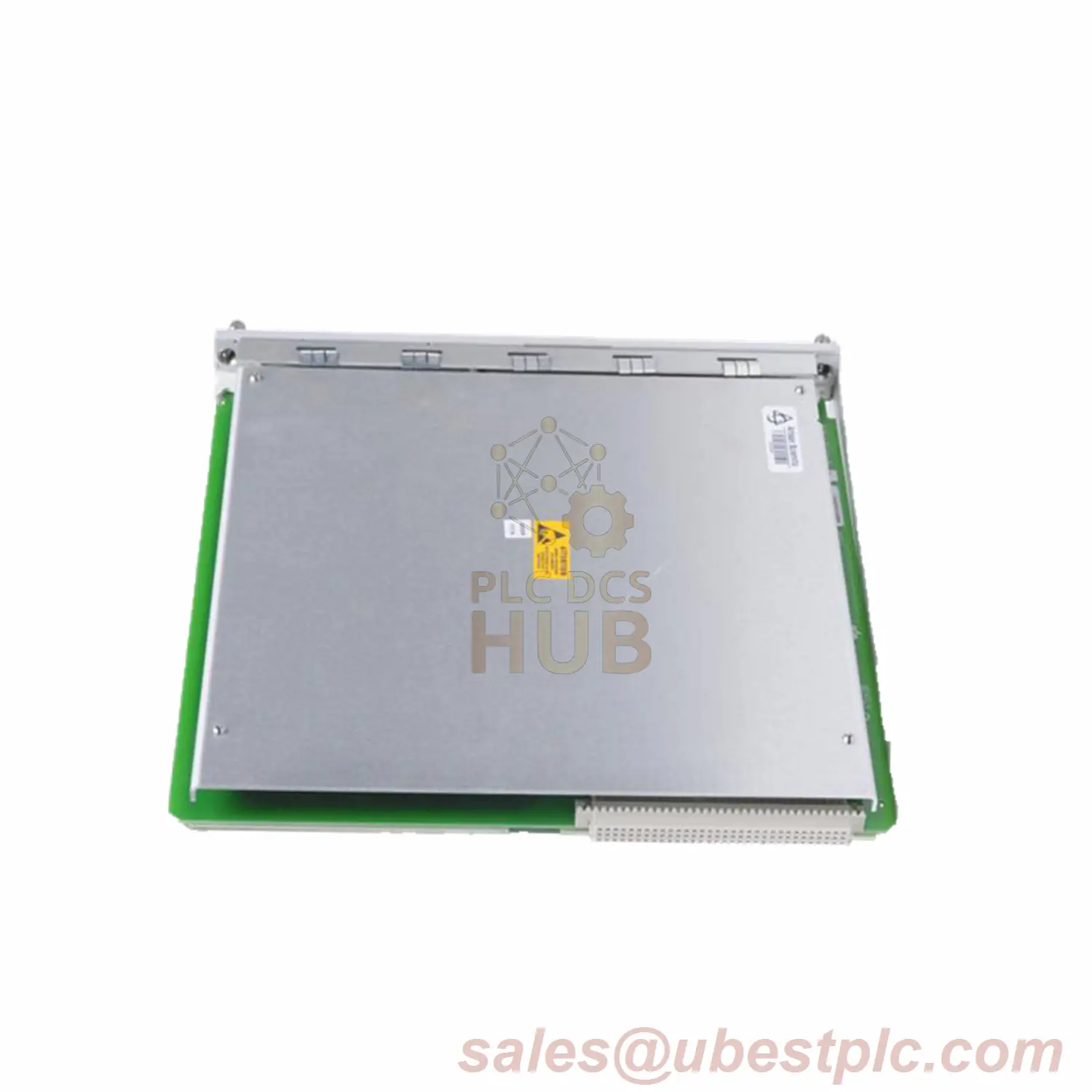

Bently Nevada 3500/64M Dynamic Pressure Monitor
Industrial-grade pressure monitoring module designed for critical machinery protection. 176449-05 3500/64M supports 1-4 transducer inputs with advanced diagnostics and cascade communication.
Core Specifications for 176449-05 3500/64M
- Input Channels: 4 configurable pressure inputs
- Input Types: 2-wire (1.5-3.5MΩ) / 3-wire (10kΩ)
- Sensitivity: 100mV/psi (1.45mV/mBar)
- Power Supply: -24Vdc (3-wire) / 22Vdc@3.3mA (2-wire)
Output Characteristics
- Buffered Outputs: 4x coaxial (550Ω impedance)
- Recorder Outputs: 4-20mA (±0.25% accuracy)
- Voltage Compliance: 0-12Vdc (600Ω max load)
- Resolution: 0.3662µA/bit (100ms update)
Physical & Environmental
- Dimensions: 241.3×24.4×241.8mm (9.5×0.96×9.52in)
- Weight: 0.82kg (1.8lb)
- Operating Temp: -40°C to +85°C (rack-dependent)
Diagnostic Indicators
- ● OK LED (System health)
- ● TX/RX LED (Cascade comms)
- ● Bypass LED (Maintenance mode)
Industrial Applications
Deployed in gas compressor surge protection systems, monitoring discharge pressures up to 500psi with 0.05% FSD repeatability at 85°C ambient.
Compliance & Integration
- Compatible with 3500 Series racks
- ATEX/IECEx Zone 2 certified
- NEMA 4X front panel rating
Technical Support: sales@ubestplc.com
