Description

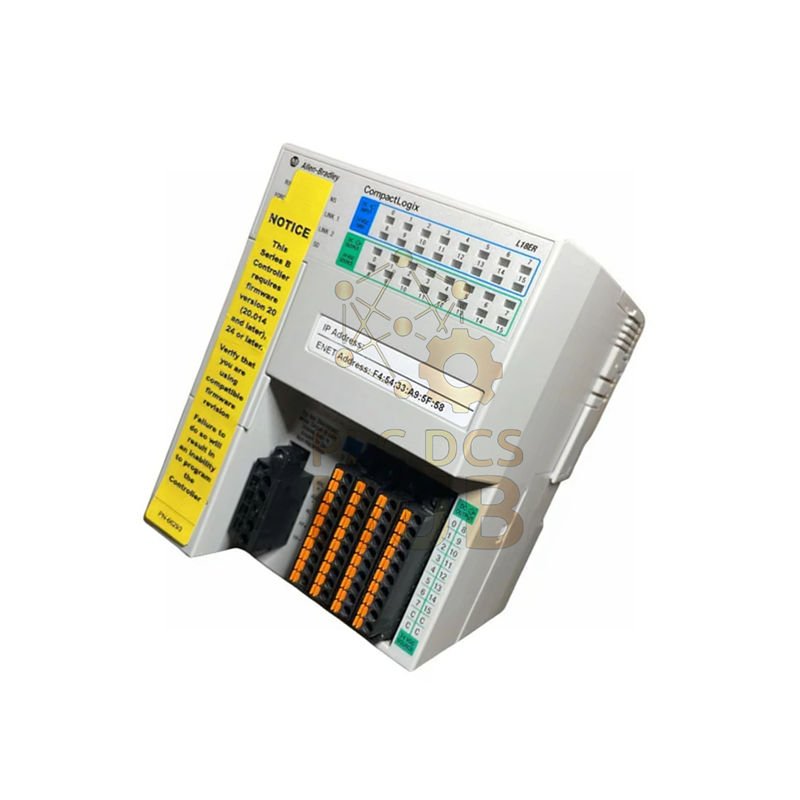

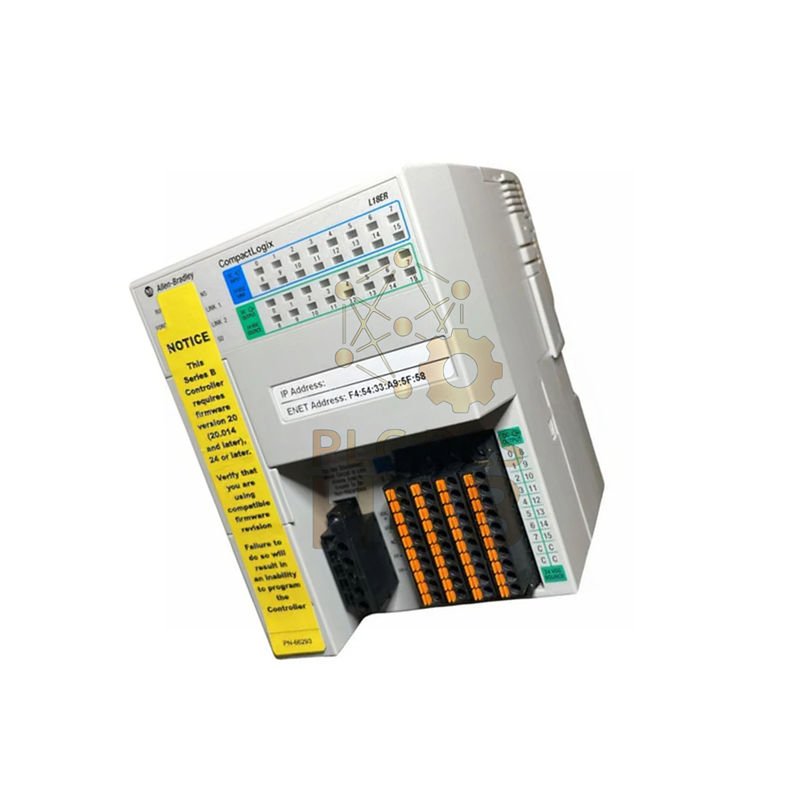

Allen-Bradley 1769-L18ER-BB1B CompactLogix Controller
The 1769-L18ER-BB1B is a versatile CompactLogix controller with built-in I/O. It offers reliable control with Ethernet connectivity. Perfect for small to medium automation applications.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-L18ER-BB1B CompactLogix
- Controller Type: 5370 L1 Processor
- Embedded Inputs: 16 channels, 24V DC
- Embedded Outputs: 16 channels, 24V DC
- User Memory: 512 KB
- Non-Volatile Memory: 1GB SD card included
- Communication Ports: 2 Ethernet, 1 USB
- Ethernet Topologies: Linear, Star, Device Level Ring (DLR)
- Input Power: 24V DC
- Current Draw: 1A @ 5V DC
- Expansion Capacity: Up to 8 Point I/O modules
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Mounting: DIN rail
- Wire Size: 22-14 AWG solid, 22-16 AWG stranded
Installation Guide
Mount the 1769-L18ER-BB1B on DIN rail. Connect 24V DC power. Use included SD card for program storage. Keep SD card installed during operation.
Compare With Other Products
See how the 1769-L18ER-BB1B compares to other controllers:
Frequently Asked Questions
Q1: Does this controller need a battery?
A1: No, it uses internal energy storage instead of a battery.
Q2: How many I/O modules can be added?
A2: Up to 8 Point I/O expansion modules.
Q3: What is the included SD card for?
A3: It provides 1GB of non-volatile memory for program storage.
Q4: What Ethernet topologies are supported?
A4: Linear, star, and Device Level Ring (DLR) topologies.
Q5: What programming languages can be used?
A5: Ladder logic, structured text, function block, and SFC.
