Description

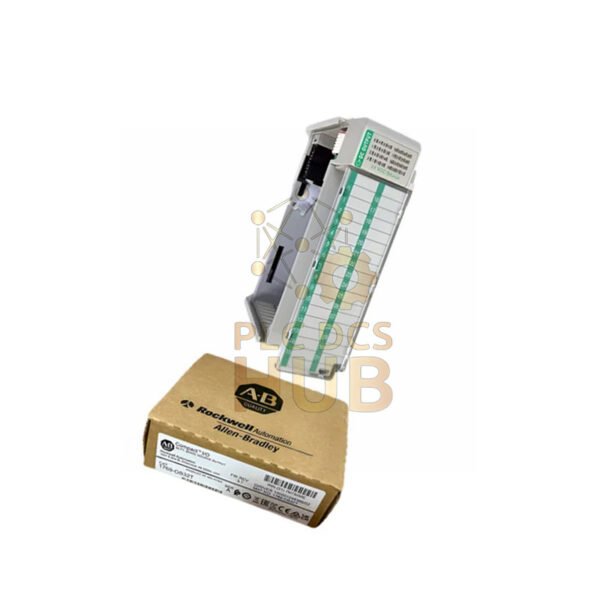

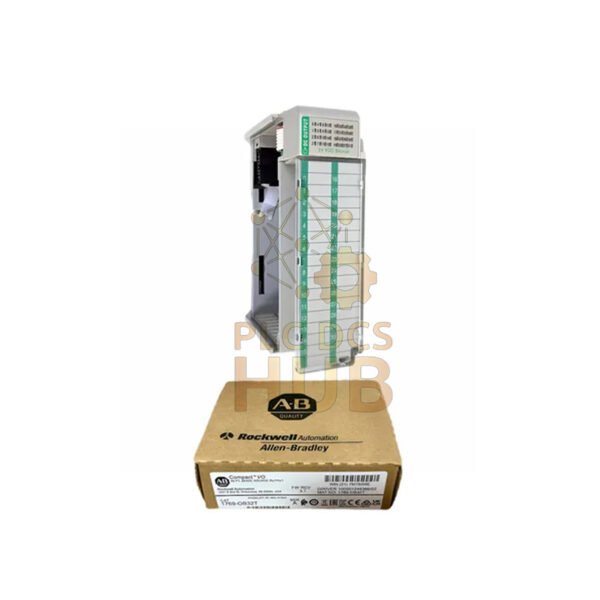

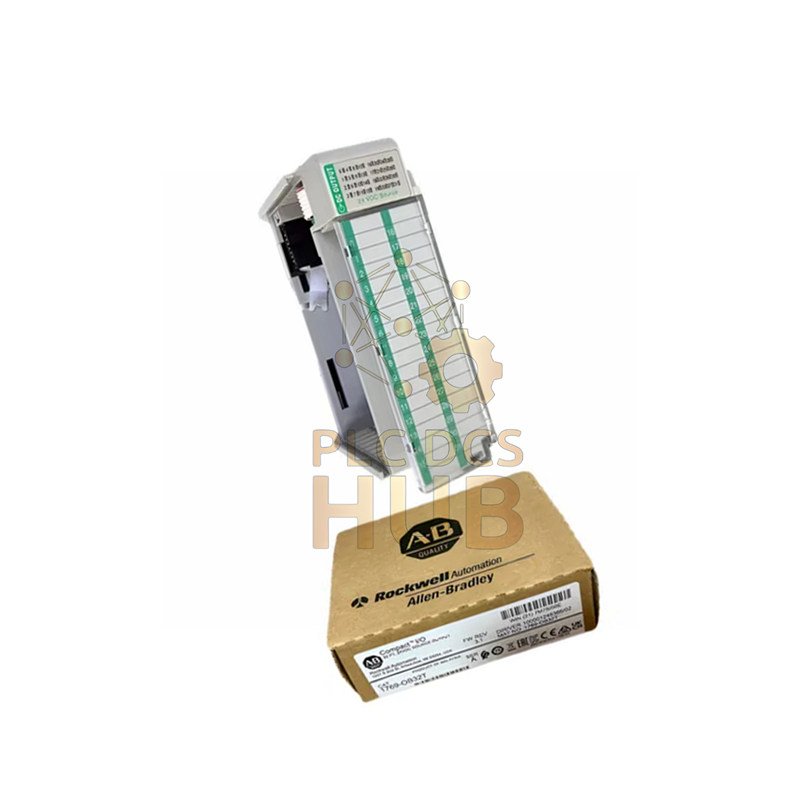

Allen-Bradley 1769-OB32T High-Density Output Module
The 1769-OB32T is a powerful 32-point DC output module. It delivers high density control in a compact size. Perfect for applications needing many output points in limited space.
Key Benefits of 1769-OB32T
- 32 Output Points: Double the density in same space.
- 24V DC Operation: Standard industrial voltage.
- Fast Switching: 0.5ms ON and 4ms OFF response.
- Space Saving: Single slot design saves panel space.
- Wide Compatibility: Works with CompactLogix and MicroLogix.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OB32T Compact I/O
- Module Type: High-Density DC Output
- Number of Outputs: 32 points
- Voltage Range: 10.2-26.4V DC
- Current per Point: 0.5A continuous
- On Delay: 0.5 ms
- Off Delay: 4.0 ms
- Power Consumption: 4.76 Watts
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Backplane Current: 220 mA @ 5.1V DC
- Wire Size: 22-14 AWG (Solid), 22-16 AWG (Stranded)
- Weight: 0.23 kg (0.51 lbs)
Installation Guide
Install the 1769-OB32T within 8 modules of power supply. Use 1769-RTBN18 terminal block. Mount on DIN rail or panel. Follow torque specifications of 0.68 Nm for terminals.
Compare With Other Products
See how the 1769-OB32T compares to controllers:
Frequently Asked Questions
- Q1: What does “T” stand for in OB32T?
A1: It indicates “Terminated” output module design. - Q2: How many amps can all outputs handle together?
A2: Maximum 4.0A continuous current for entire module. - Q3: What is the surge current capability?
A3: 2.0A for 10ms, repeatable every 2 seconds. - Q4: Is this module sourcing or sinking?
A4: This is a sourcing output module. - Q5: What controllers support this module?
A5: CompactLogix 1769 series and MicroLogix 1500 controllers.
