1769-PA4 | Allen-Bradley Power Supply CompactLogix AC Module

Description

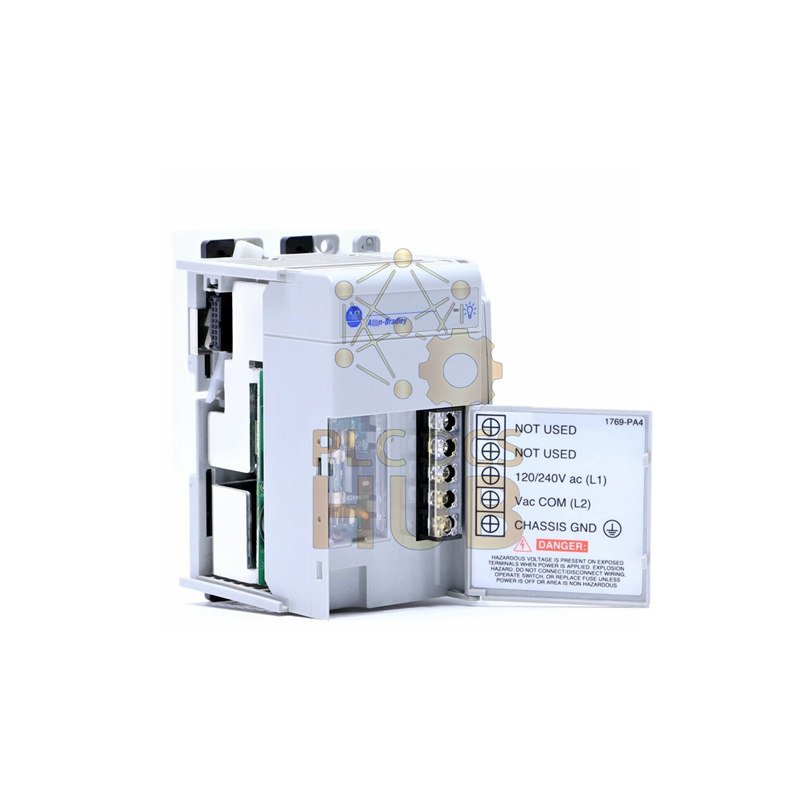

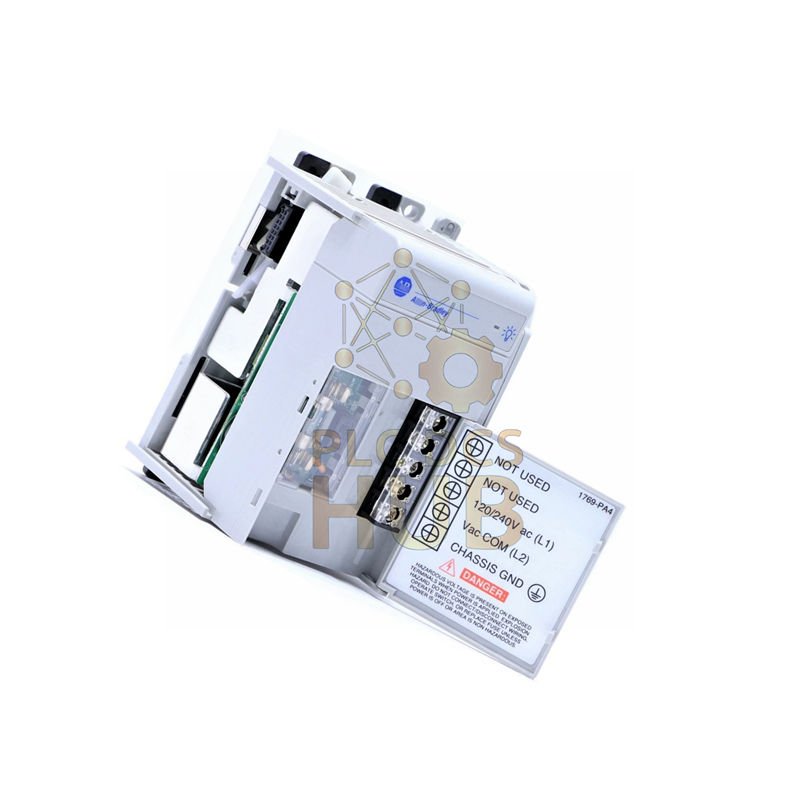

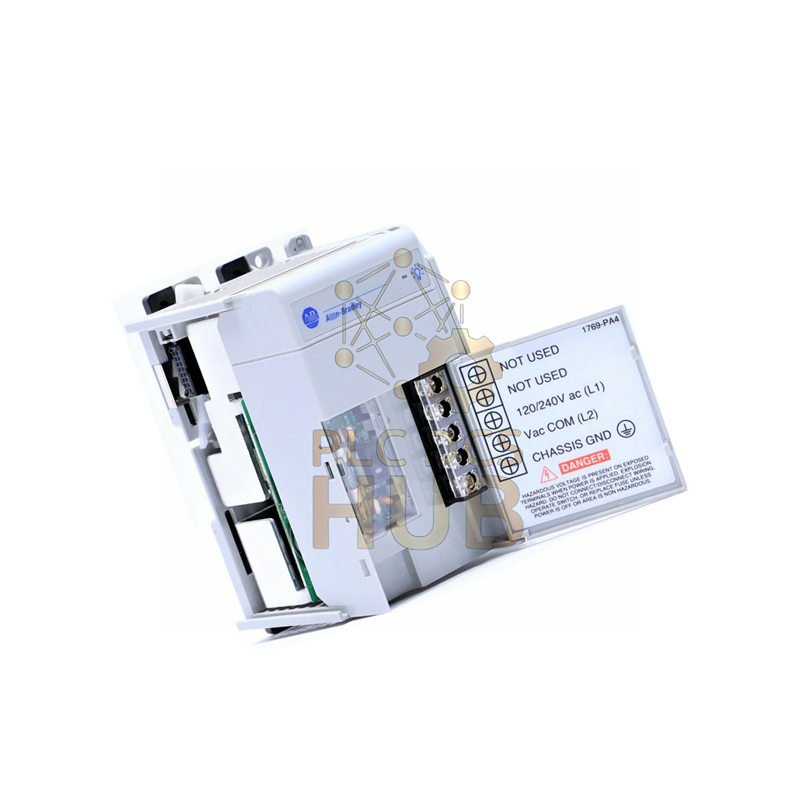

Allen-Bradley 1769-PA4 CompactLogix Power Supply

The 1769-PA4 is a versatile AC power supply for CompactLogix systems. It delivers reliable power to controllers and I/O modules. Perfect for industrial automation applications requiring stable power distribution.

Key Benefits of 1769-PA4

• Dual Voltage Input: Works with 85-265V AC or 170-265V AC.
• High Capacity: Provides 4.0A @ 5V DC and 2.0A @ 24V DC.
• Expandable System: Powers up to 16 I/O modules (8 on each side).
• Easy Installation: DIN rail or panel mounting options.
• Global Compatibility: Handles international voltage standards.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1769-PA4 CompactLogix
• Module Type: AC Power Supply
• Input Voltage: 85-265V AC or 170-265V AC (selectable)
• Input Frequency: 47-63 Hz
• Output Current: 4.0A @ 5V DC, 2.0A @ 24V DC
• Power Consumption: 200 VA @ 120V AC, 240 VA @ 240V AC
• Power Dissipation: 18 Watts
• Inrush Current: 25A maximum @ 132V AC
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Fuse Type: Wickmann 19195-3.15A or Littelfuse 02183.15MXP
• Dimensions: 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in)
• Weight: 0.525 kg (1.16 lb)
• Wire Size: 14-22 AWG solid, 16-22 AWG stranded

Installation Guide

Install the 1769-PA4 using DIN rail or panel mounting. Select correct input voltage before powering on. Ensure proper ventilation around the unit. Use recommended fuse types for replacement.

Compare With Other Products

See how the 1769-PA4 compares to other modules:

• 1769-IF8 Analog Input Module
• 1769-IG16 TTL Input Module

Frequently Asked Questions

• Q1: How many modules can this power supply support?
  A1: Up to 16 I/O modules (8 on each side of the supply).
• Q2: What input voltages does it accept?
  A2: Selectable between 85-265V AC or 170-265V AC ranges.
• Q3: What replacement fuses are compatible?
  A3: Wickmann 19195-3.15A or Littelfuse 02183.15MXP fuses.
• Q4: Can it handle international power standards?
  A4: Yes, it works with both 120V and 240V AC systems.
• Q5: What is the maximum output current?
  A5: 4.0A at 5V DC and 2.0A at 24V DC.
