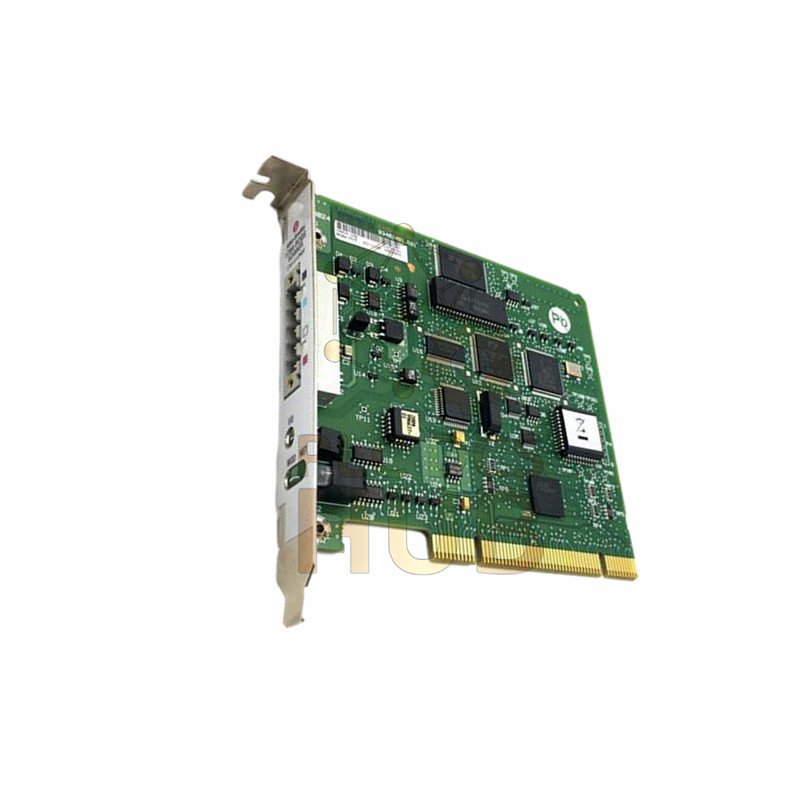

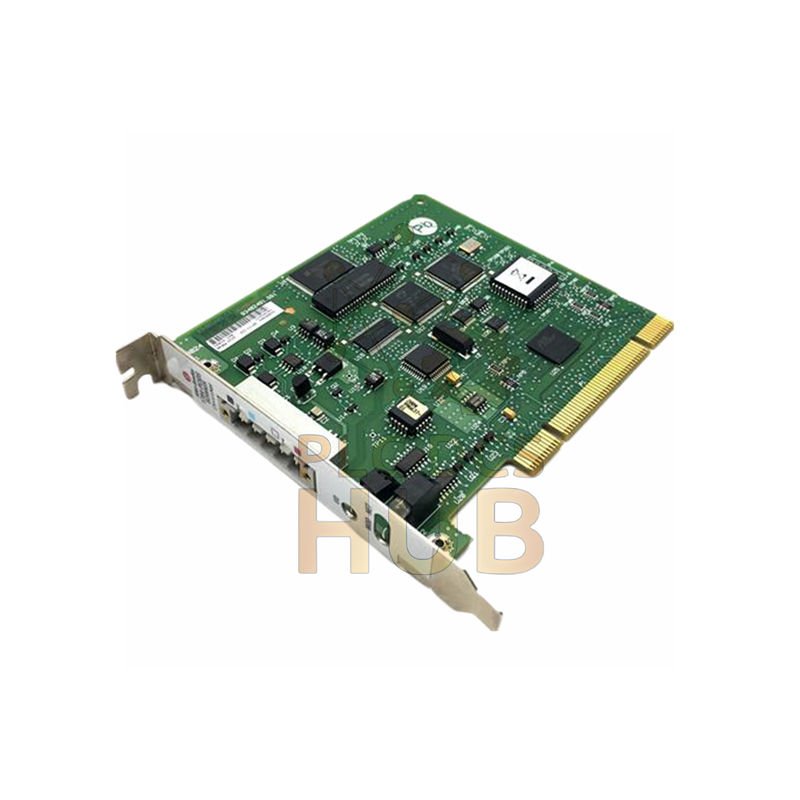

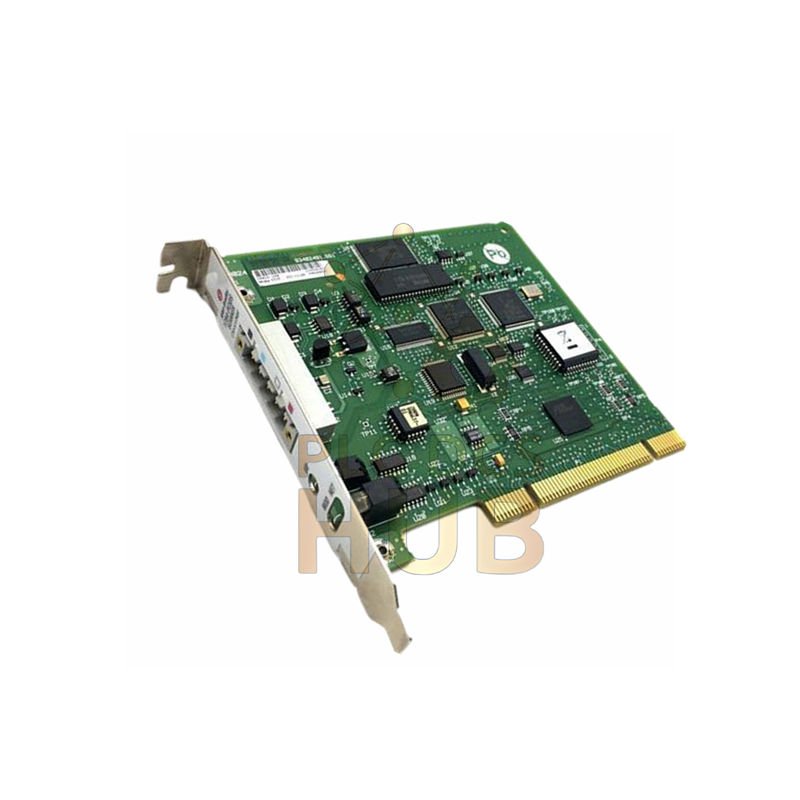

Allen-Bradley 1784-PCIDS – DeviceNet PCI Scanner Card
The 1784-PCIDS from Allen-Bradley enables seamless DeviceNet network integration for industrial computing applications. This universal PCI scanner card provides reliable connectivity for monitoring, configuration, and data exchange.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1784-PCIDS
- Series: PLC-5 Compatible
- Type: DeviceNet PCI Scanner Card
- Interface: PCI rev. 2.1 compliant
- Form Factor: PCI 5V, 32-bit short card
- Dimensions: 4.2″ H × 4.721″ L
- Power Requirement: 5V DC @ 625mA (from PCI slot)
- DeviceNet Power: 24V DC @ 90mA (Class 2)
- Data Memory: 2048 bytes input, 2048 bytes output
- Operating Temp: 32°F to 131°F (0°C to 55°C)
- Storage Temp: -40°F to 185°F (-40°C to 85°C)
- Humidity: 5% to 95% non-condensing
- Disk Space: 2MB minimum required
- Enclosure: Open design (ESD protection required)
- Compatibility: Series A (I/O Linx), Series B (RSLinx)
- Warranty: 12 months against defects
Status Indicators
- I/O Status LED – shows data exchange activity
- Network Status LED – indicates DeviceNet connection
- Module Status LED – displays operational state
Software Compatibility
- Series A: I/O Linx, RSNetworx for DeviceNet
- Series B: RSLinx, RSNetworx for DeviceNet
Package Contents
- 1x 1784-PCIDS DeviceNet PCI Scanner Card
- Installation documentation
- Driver software (CD or download instructions)
Shipping Information
- Shipping Methods: FedEx, UPS, DHL Express
- Handling: ESD-protective packaging
- Delivery Time: 2-5 business days
Frequently Asked Questions
- What’s the difference between Series A and Series B?
Series A works with I/O Linx, while Series B is compatible with RSLinx software. - Does this card require external power?
No, it draws power directly from the PCI slot (5V @ 625mA). - What precautions are needed during installation?
Use ESD protection and handle only by the edges to prevent damage. - Can this card be used in standard office computers?
Yes, if they have a compatible PCI 2.1 slot (5V, 32-bit). - What software is needed for configuration?
RSNetworx for DeviceNet is required for network configuration.
