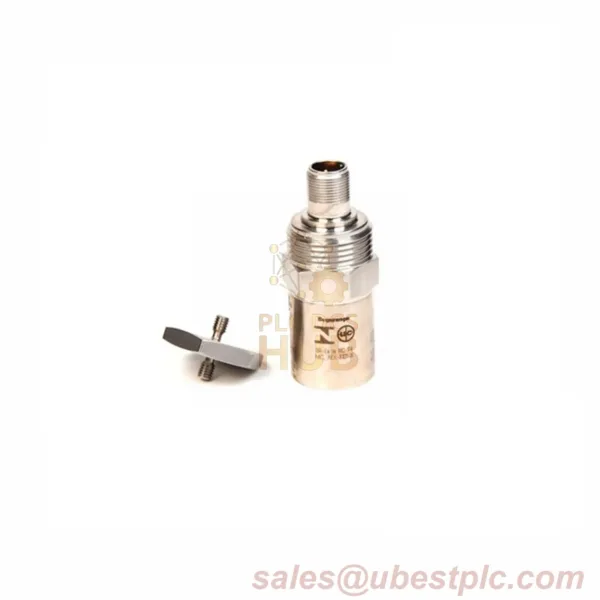

190501-12-00-CN Bently Nevada Velomitor CT Velocity Transducer

Description

Bently Nevada Velomitor CT Sensor

190501-12-00-CN: Precision vibration monitoring for CN-specific industrial applications. Built with 316L stainless steel. Ships worldwide via FedEx/DHL/UPS.

Core Specifications

• Brand: Bently Nevada
• Model: 190501-12-00-CN
• Range: 1.5Hz-1000Hz
• Accuracy: ±2% linearity
• Output: 10.1V DC signal
• Temp: -40°C to +85°C

Key Features

• M8x1 thread adapter included
• Survives 5000g shocks
• Works in 100% humidity
• 305m cable capacity
• 12-month warranty

Certifications

• CN country approval
• Ex nL IIC T4 rated
• Class I Div 2 compliant

Where It Works Best

• Wind turbine gearboxes
• Mining conveyor systems
• Food processing mixers
• Cement plant crushers

Quick Setup Guide

1. Use 40 in-lbf torque
2. Connect MIL-C-5015 plug
3. Works sideways/upside-down
4. Max 1000ft cable length

Package Contents

• Vibration sensor
• M8x1 mounting plate
• Compliance documents
• COO available

Common Questions

Q: China certification?
A: Yes – meets CN safety standards.

Q: Cable type needed?
A: Use part# 02173006 for best results.

Q: Waterproof?
A: Rated for wet areas (non-submerged).
