Description

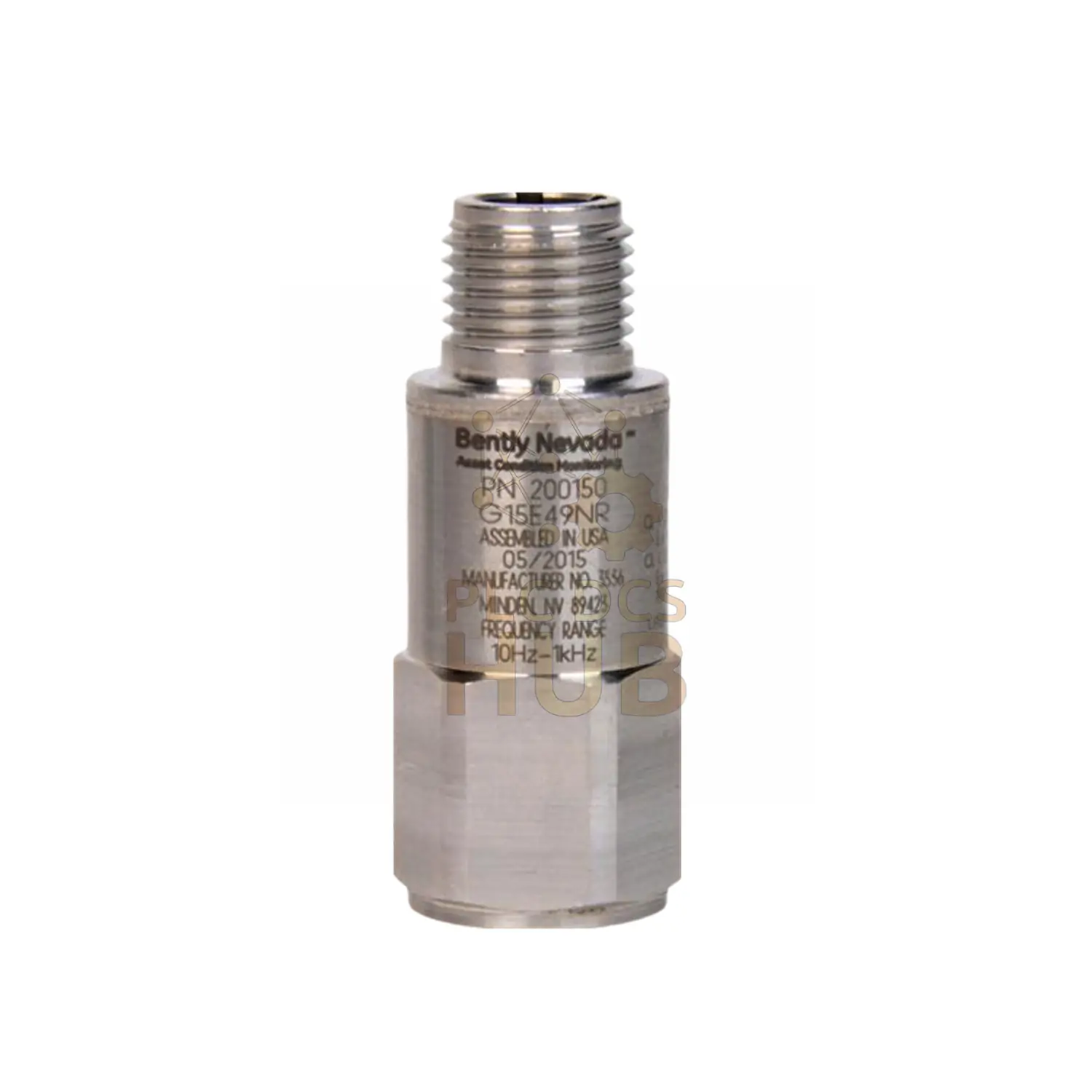

Bently Nevada 200150-06-05 Accelerometer: Industrial Vibration Sensing with NPT Mounting
Core Product Features
- NPT threaded mounting (1/4″) for pipeline applications
- Triple-certified for hazardous areas: CSA, ATEX, IECEx
- Hermetically sealed 316L stainless steel housing
- Acceleration-to-velocity conversion for Trendmaster Pro systems
Technical Specifications
| Full Model Code | 200150-06-05 |
| Suffix Breakdown | 06: 1/4″ NPT Mount 05: Hazardous Area Certifications |
| Frequency Response | 10-1000Hz (±10%) |
| Shock Resistance | 5,000 g pk |
| Voltage Range | 4.7-5.5 VDC (±0.5V tolerance) |
| Current Draw | <800 µA (quiescent) |
| Hermetic Seal | <5×10⁻⁸ atm·cc/s leak rate |
| Resonant Frequency | >20 kHz |
Mounting Specifications
- 3/8-24 to 1/4 NPT adapter with 3/4″ hex
- Torque range: 2-5 ft·lbf (2.7-6.8 N·m)
- 24-hour stabilization period after installation
- IP68 equivalent sealing performance
Environmental Ratings
Temp Range
-40°C to +105°C
-40°C to +105°C
Humidity
100% condensing
100% condensing
Material
316L Stainless Steel
316L Stainless Steel
Vibration Limit
25 g continuous
25 g continuous
Industry Applications
- Pump monitoring in chemical processing
- Compressor vibration analysis in EX-rated zones
- Pipeline-mounted equipment diagnostics
- Power generation turbine oversight
Packaging & Delivery
- Unit shipped in anti-static packaging
- 12-month manufacturer defect coverage
- Express options: FedEx Priority, UPS Worldwide, DHL Express
Technical FAQ
Q: What’s the difference between -06 and -03 suffix models?
A: -06 has 1/4″ NPT mounting for pipes, while -03 has UNF stud for flat surfaces
Q: Can this operate in submerged conditions?
A: Rated for condensing humidity but not full submersion
Q: What cable length is recommended?
A: Use shielded cable <500 feet for optimal signal integrity
Q: Is calibration adjustment needed for temperature changes?
A: Built-in compensation maintains accuracy across full operating range
