200150-14-05 Bently Nevada Trendmaster Pro Accelerometer

Description

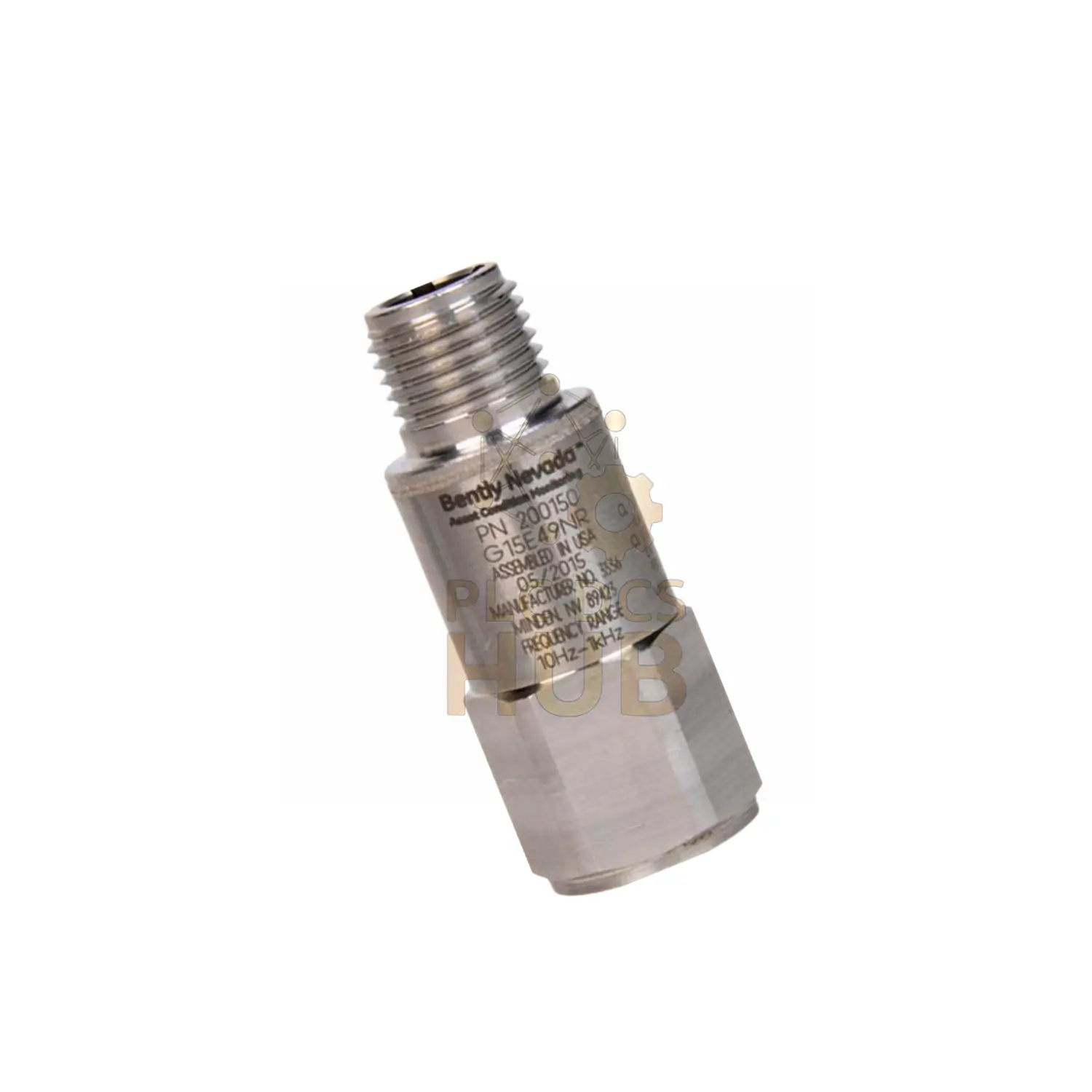

Bently Nevada 200150-14-05 Accelerometer

The Bently Nevada 200150-14-05 is a reliable accelerometer for general applications. Made in the U.S.A, it offers high performance and durability.

Key Features

• Mounting Stud Option: 3/8-24 to 3/8-24 UNF, 3/4 inch hex stud
• Approvals: CSA, ATEX, IECEx
• Certificate of Origin: Available upon request

Specifications

• Sensitivity @ 80 Hz: 10.2 mV/(m/s²) (100 mV/g)
• Measurement Range: ±245 m/s² (±25 g)
• Frequency Range: 10 to 1000 Hz (600 to 60,000 cpm)
• Settling Time: ≤300 ms
• Excitation Voltage: 4.7 to 5.5 Vdc
• Quiescent Current: <800 µA
• Output Bias Voltage: +2.5 ± 0.23 Vdc

Environmental Conditions

• Temperature Range: -40 ºC to +105 ºC (-40 ºF to +221 ºF)
• Humidity: 100% relative, condensing
• Axial Shock Limit: 49,050 m/s² pk (5,000 g pk)

Physical Characteristics

• Size: 17.5 mm x 45.7 mm (11/16 in x 1.8 in)
• Weight: 58 g (2.0 oz)
• Mounting Torque: 2.7 to 6.8 N•m (2 to 5 ft•lbf)
• Sensing Element: Ceramic
• Housing Material: 316L stainless steel

Warranty and Shipping

Warranty: 12 months. Fast shipping available via FedEx, UPS, and DHL.

Applications

This accelerometer is perfect for:

• Vibration monitoring in machinery
• Structural health monitoring
• Machine condition assessment

Additional Technical Parameters

• Mounted Resonant Frequency: >20 kHz (>1200 kcpm)
• Amplitude Linearity: ±2% (1 to 10 g pk)
• Transverse Sensitivity: ≤7%
• Sealing: Hermetic, maximum 5X10^-8 atm•cc/s
