200150-15-05 Bently Nevada Trendmaster Pro Accelerometer

Description

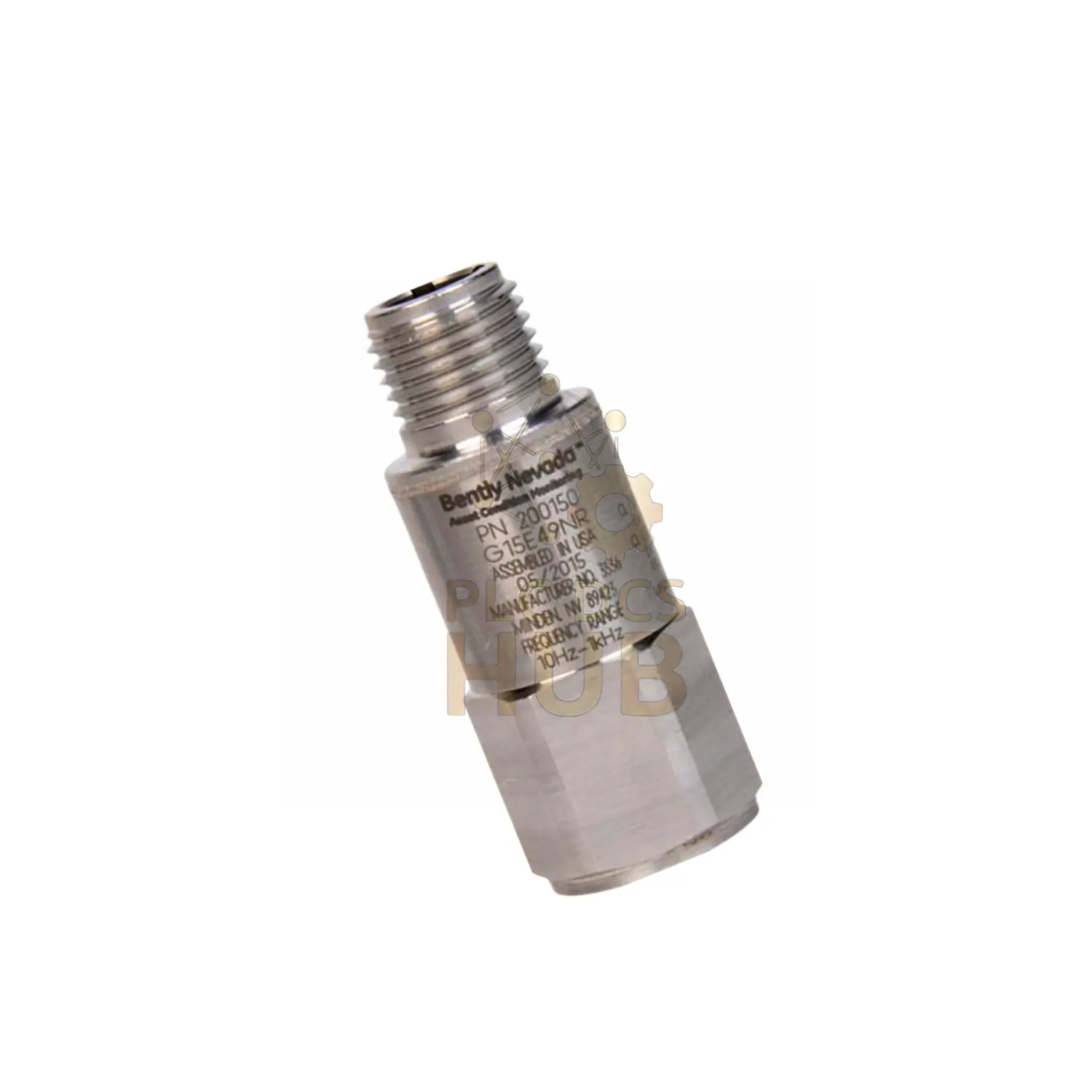

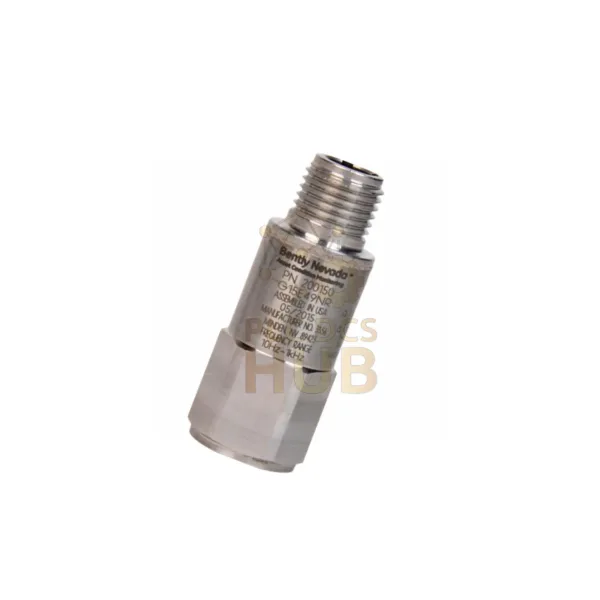

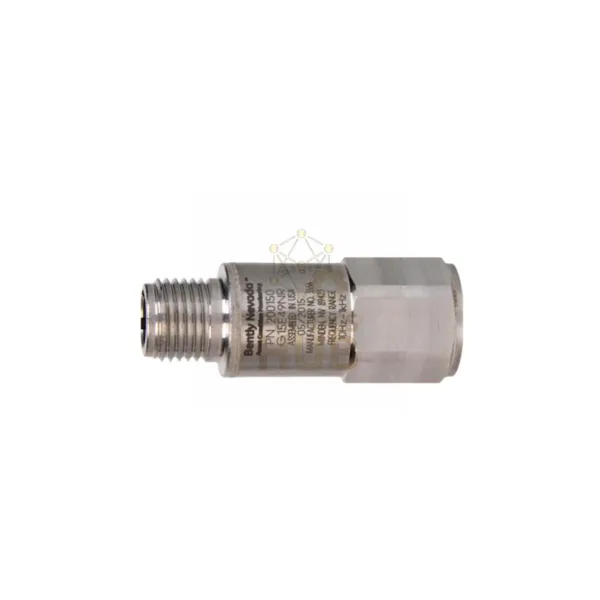

Bently Nevada Industrial Accelerometer: Precision Vibration Monitoring

Core Features

• CSA/ATEX/IECEx certified for hazardous areas
• Special 3/8-24 to 3/8-16 UNC mounting stud
• Made in USA with optional Certificate of Origin
• Hermetic sealing blocks moisture in wet environments

Technical Specifications

• Model: 200150-15-05
• Approvals: CSA, ATEX, IECEx (05)
• Mounting: 3/4″ hex stud (15)
• Range: ±245 m/s² (±25g)
• Sensitivity: 10.2 mV/(m/s²) @ 80Hz
• Frequency: 10-1000 Hz
• Temp Range: -40°C to +105°C
• Shock Limit: 49,050 m/s² (5,000g)
• Weight: 58g (2oz)

Installation Guide

• Apply 2-5 ft-lbf torque to mounting stud
• Allow 24-hour curing for full seal effectiveness
• Ensure clean contact surface for vibration accuracy
• Use shielded cables in high-noise areas

Package Contents

• 1 Accelerometer unit
• Shipping: FedEx/UPS/DHL (global)
• Warranty: 12-month coverage

FAQ

Q: Can this operate in explosive areas?
A: Yes – ATEX/IECEx certified for hazardous locations.

Q: What’s the minimum vibration it detects?
A: Measures down to 14.7 mm/s² (1.5 mg).

Q: Does it need special power?
A: Works with standard 4.7-5.5V DC systems.

Q: How quick is response time?
A: Settles within 300ms after impact events.

Q: Can I get USA origin proof?
A: Yes – optional Certificate of Origin available.
