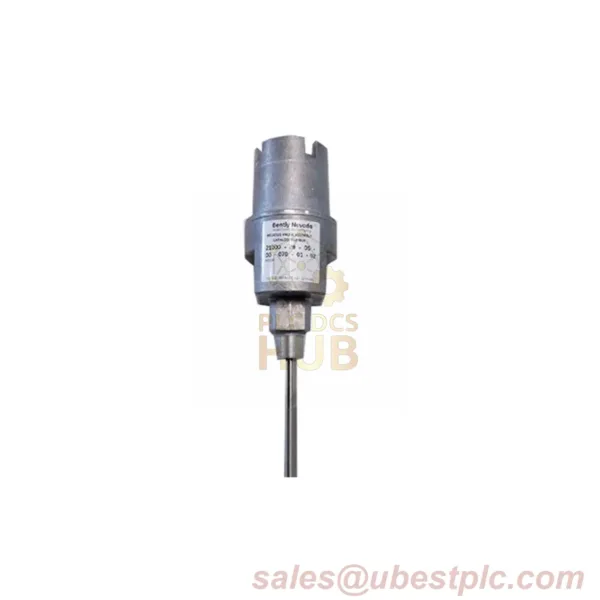

21000-16-05-15-034-03-02 Bently Nevada Proximity Probe – Housing Assembly

Description

Bently Nevada Industrial Automation Sensor

21000-16-05-15-034-03-02: Built for predictive maintenance systems, this 3.4″ penetration assembly meets API 670 standards with CSA/ATEX certifications. Ideal for PLC-integrated condition monitoring in Class I/II hazardous areas.

Technical Specifications

• Brand: Bently Nevada
• Part Code: 21000-16-05-15-034-03-02
• Dynamic Range: 0.05-1.2mm (2-48 mils)
• Operating Temp: -55°C to +150°C (-67°F to +302°F)
• IP Rating: IP68 (submersible up to 3m)
• Response Time: <5μs for real-time vibration analysis

Configuration Tree

• ├─ 16: 8mm Eddy Current Probe (DIN 43650 Connector)
• ├─ 05: 0.5m Shielded Cable (EMI/RFI Protected)
• ├─ 15: 1.5″ Aluminum Standoff (38mm)
• ├─ 034: 3.4″ (86mm) Probe Extension
• ├─ 03: Explosion-Proof Conduit Kit
• └─ 02: 3/4-14 NPT Industrial Thread

Critical Performance Data

• • Non-linearity: <±0.75% Full Scale
• • Housing Material: MIL-A-8625 Anodized Aluminum
• • MTBF: 250,000 Hours @ 40°C

Automation Use Cases

• ▶ Power Plant Turbines: Real-time shaft eccentricity monitoring
• ▶ Oil Pipeline Pumps: Bearing defect detection in ATEX Zone 1
• ▶ Bottling Machinery: Fill head positioning via SCADA integration

Compliance & Safety

• ✓ CSA: Class I Div1 Gr B/C/D T4
• ✓ IECEx: Ex db IIC T4 Gb
• ✓ NEMA 4X: Washdown-ready enclosure

Package Components

• • Reverse-Mount 3300XL Probe
• • 3/4″ NPT to 1/2″ NPT Adapter
• • Chemical-Resistant O-Ring Kit
• 12-Month Zero-Downtime Warranty

Integration Support: Email sales@ubestplc.com for Modbus TCP/IP protocol documentation or hazardous area schematics.

Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
