Description
Precision Vibration Analysis System

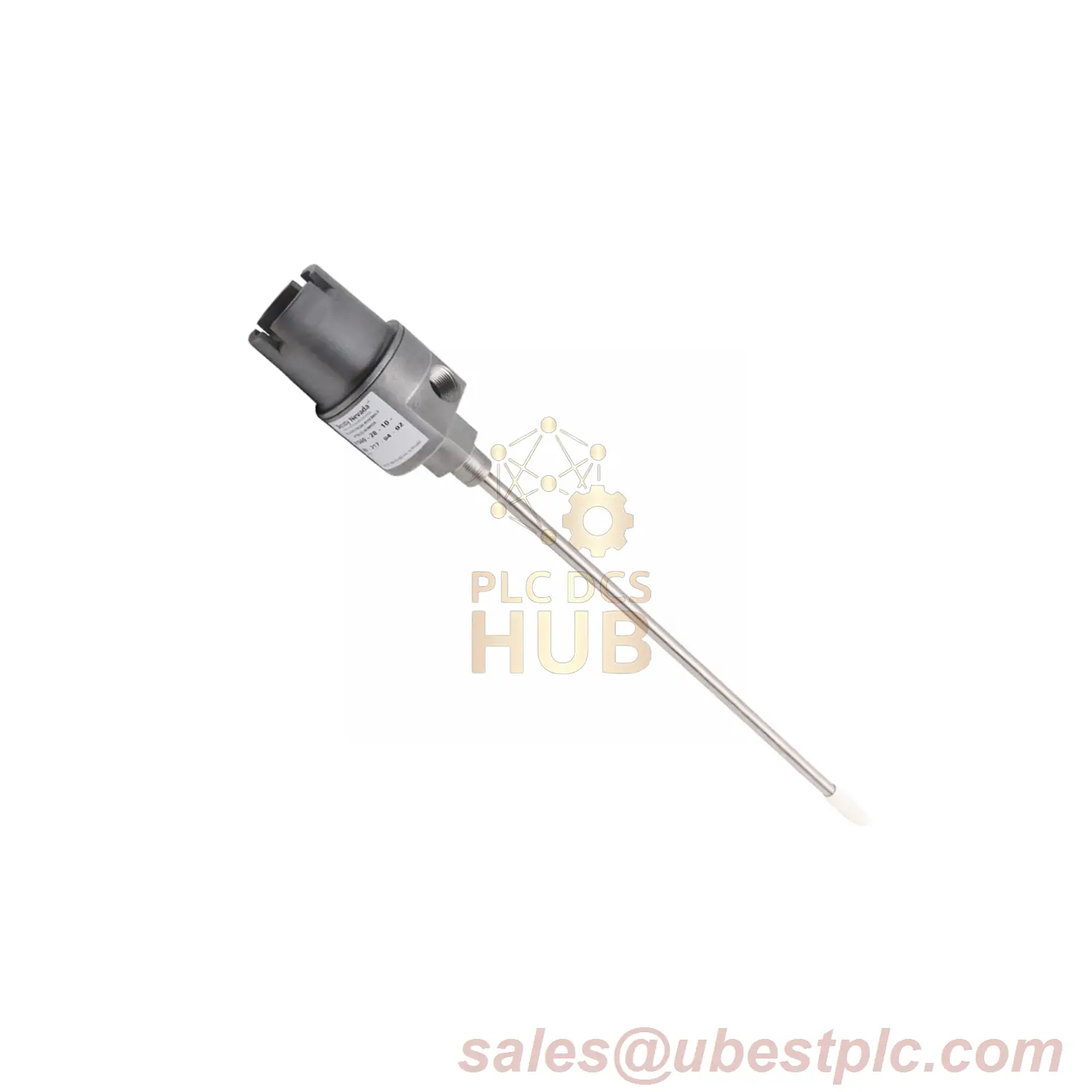

The Bently Nevada 21000-16-10-00-077-03-02 delivers 7.7″ (195.6mm) probe penetration for deep machinery access, featuring CSA-certified explosion-proof construction. Optimized for API 670-compliant monitoring in high-vibration environments.
Technical Specifications
Suffix Decoder for 21000-16-10-00-077-03-02
- 16: 8mm 3300 XL Industrial Probe
- 10: 1.0m (39″) Teflon®-Jacketed Cable
- 00: Direct Surface Mount
- 077: 7.7″ Penetration Depth
- 03: Triple-Size Cable Grip System
- 02: Mounting Thread 3/4-14 NPT
Performance Metrics
- Measurement Range: 0-10mm (±0.5% FSO)
- Frequency Bandwidth: DC-15kHz
- Thermal Drift: <0.05%/°C
- Cable Pull Strength: 50N Minimum
Industrial Applications
Steel Rolling Mills
Monitors backup roll bearings in Class III combustible fiber environments, with 7.7″ penetration reaching through multiple steel guard plates. Aluminum housing resists scale accumulation.
Geothermal Steam Turbines
Operates in 100% RH conditions at 80°C continuous, detecting blade-pass vibrations through 3″ thick insulation blankets. -03 fittings prevent H₂S corrosion.
Certifications & Compliance
- CSA: Class I Div 2 Groups A-D
- IEC: 60079-15 Ex ec IIC T4 Gc
- NEMA: 4X/7/9 Compliance
- Military: MIL-STD-810G Vibration
Installation Toolkit
- Probe centering gauge (0.8-1.2mm air gap)
- Anti-vibration thread locker (P/N LOC-21000)
- IP67-rated conduit termination kit
- Calibration certificate traceable to NIST
⚠ Resonance Alert: Requires support sleeve (P/N 21000-SUP-7) when C+D >300mm. Contact sales@ubestplc.com for seismic qualification data.
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
