Description
Ultra-Compact Machinery Protection System

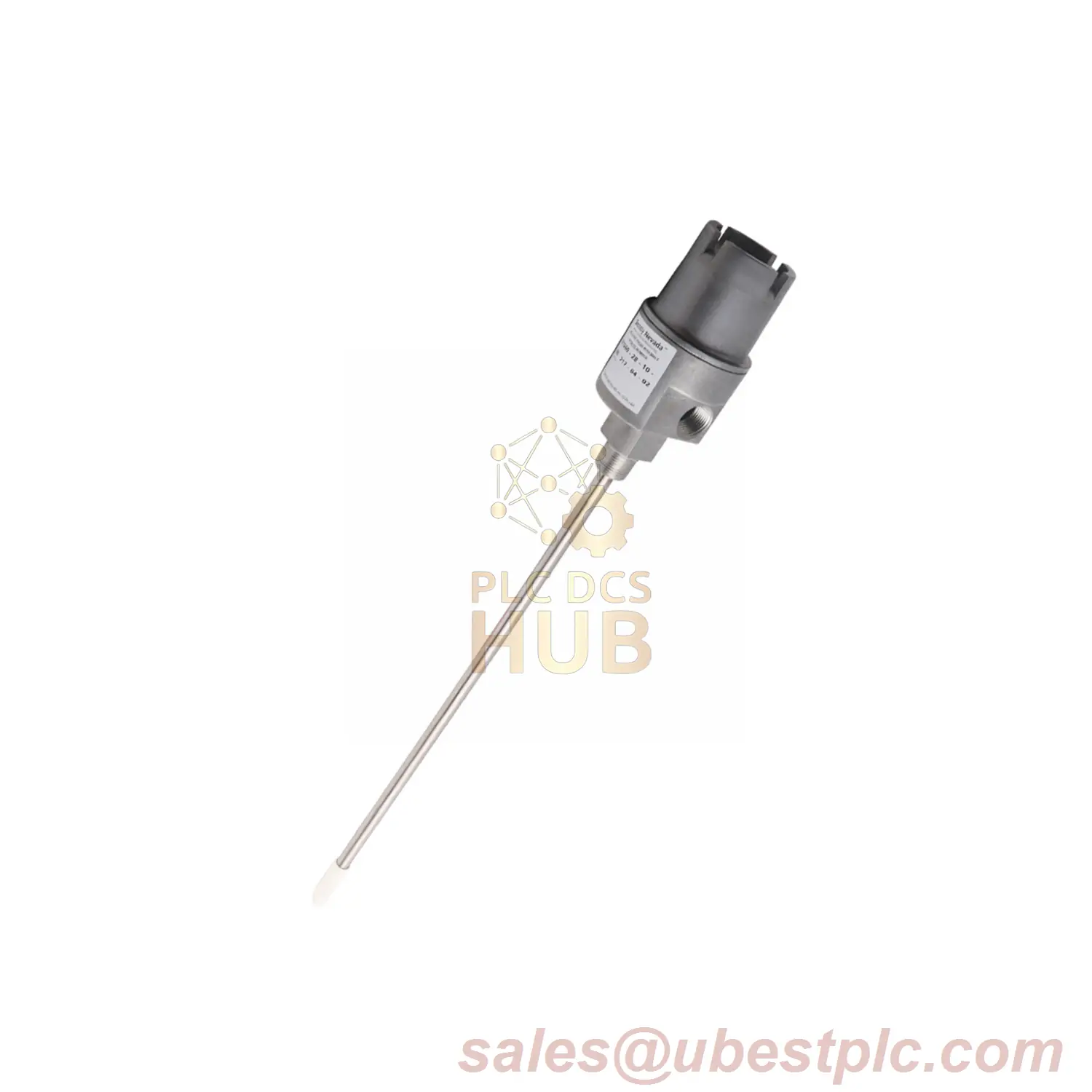

The Bently Nevada 21000-16-10-15-114-03-02 features a 1.4″ (114) penetration depth, designed for high-density equipment layouts requiring CSA Type 4 explosion-proof certification. This configuration meets API 670 standards for critical clearance applications.
Suffix Code Analysis for 21000-16-10-15-114-03-02
- 16: 3300 XL 8mm Micro-Probe (0.1μm resolution)
- 10: 1.0m EMI-Shielded Cable
- 15: 38mm Thermal Expansion Compensator
- 114: Ultra-Short 1.4″ Penetration
- 03: Triple-Seal NPT Fitting System
Precision Engineering Specifications
Mechanical Performance
- Alignment Sensitivity: ±0.01° angular tolerance
- Resonance Prevention: Automatic damping <12″
- Cable Flexibility: 2000+ bend cycles rating
Environmental Durability
- Chemical Resistance: MIL-STD-810 Method 507.6
- Thermal Cycling: -65°C to +175°C survival
- Ingress Protection: IP69K washdown rating
Specialized Application Scenarios
- Aerospace Actuator Testing – Thrust vector control monitoring in vacuum chambers
- Robotic Surgical Arms – Precision movement verification in ISO 13485 medical devices
- Nuclear Reactor Coolant Pumps – Seismic qualification per IEEE 344 standards
Installation Protocols
- Mandatory laser alignment for penetrations <2.0″
- Required anti-wicking compound on cable entries
- Probe flag labels must withstand 500°F (260°C)
Global Certifications: CSA | IECEx | UKCA
Technical Assistance: Contact sales@ubestplc.com
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
