Description
Advanced Monitoring Solution for Critical Systems

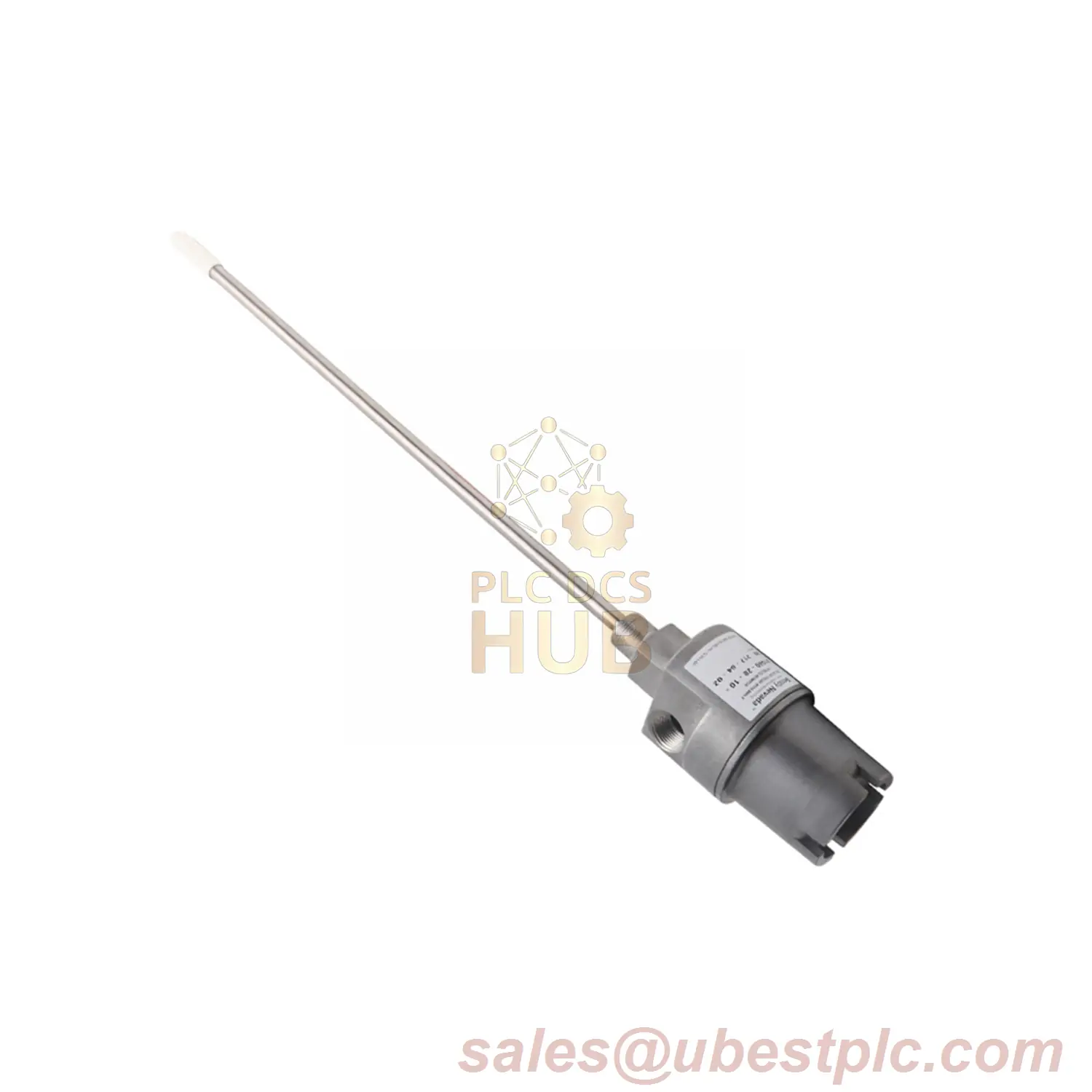

The Bently Nevada 21000-16-10-15-144-03-02 proximity housing assembly delivers precision sensing with 4.4″ (144) penetration depth, optimized for space-constrained installations. Certified for Class I Div 1 hazardous areas, this CSA Type 4 enclosure supports API 670-compliant machinery protection.
Configuration Details
- Suffix Decoder for 21000-16-10-15-144-03-02:
- 16: 3300 XL 8mm Probe (IP67 Rated)
- 10: 1.0m High-Flex Cable
- 15: 38mm Standoff Adapter
- 144: Short-Stroke 4.4″ Penetration
- 03: Dual NPT Port Configuration
Performance Specifications
Mechanical Properties
| Environmental Ratings
|
Industrial Implementation Scenarios
- Wind Turbine Gearbox Monitoring – Detects shaft eccentricity in nacelle environments (IEC 61400-25 compliant)
- Pharmaceutical Mixer Bearing Analysis – Sanitary process monitoring in ATEX Zone 1 facilities
- Automotive Test Rig Validation – High-speed rotational measurement under MIL-STD-810G conditions
Installation Requirements
- Mandatory counterboring for penetrations 1.0-2.0″
- Support brackets required when C+D >12″
- Flag label applied for P/N visibility in restricted spaces
Certification Bundle: CSA/FCC/RoHS | Warranty: 12 Months
Technical Support: sales@ubestplc.com
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
