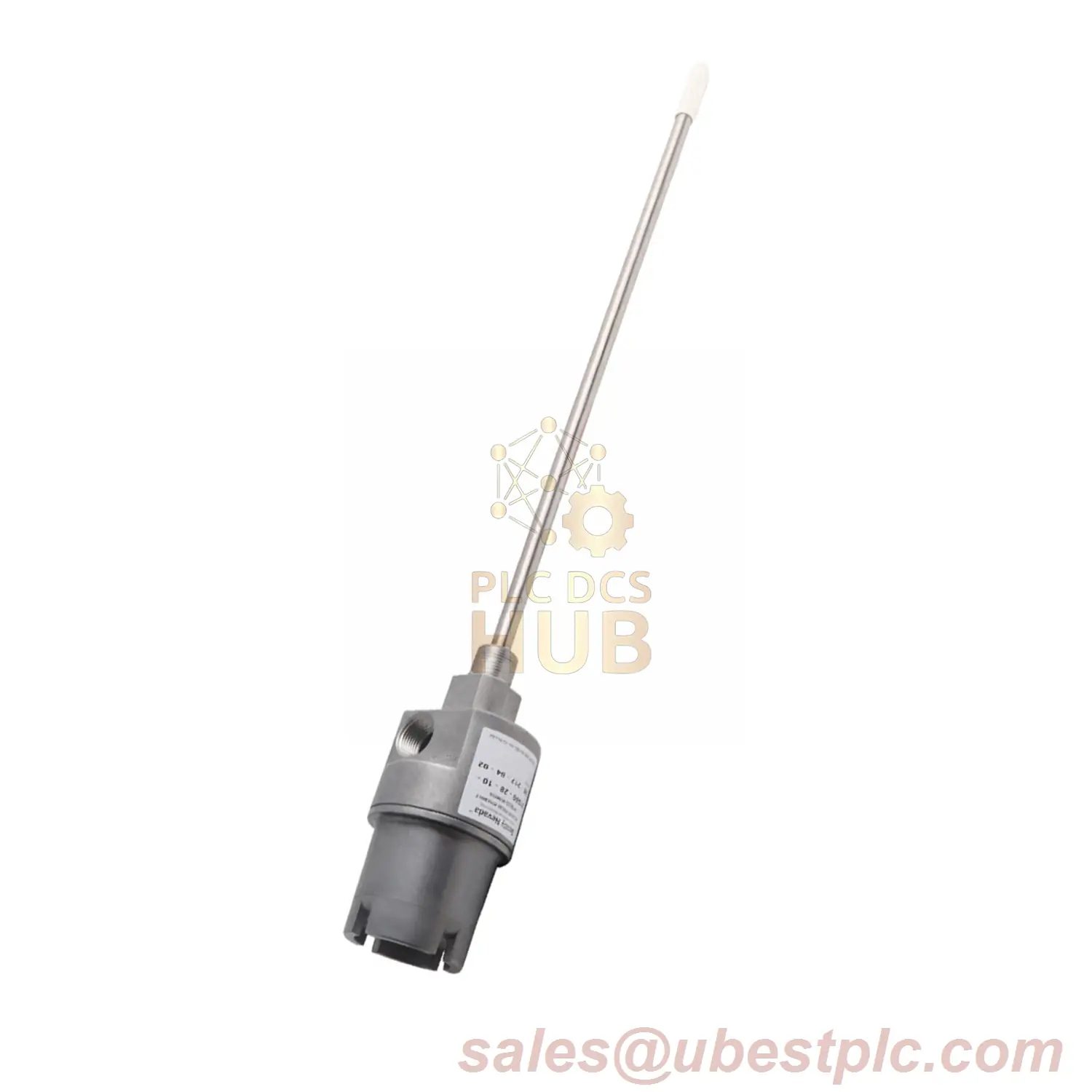

21000-28-05-00-064-04-02 Proximity Probe – Housing Assembly

Description

High-Performance Industrial Sensor: 21000-28-05-00-064-04-02

Suffix Code Configuration & Features for 21000-28-05-00-064-04-02

• 28 – Hazardous Area Certified Probe
  • Approvals: ATEX Zone 1 & IECEx Ex d IIC T6
  • Target Materials: Ferrous & Non-Ferrous Alloys
• 05 – Short-Length Signal Cable
  • Construction: Double-Shielded TPE Jacket
  • Flex Rating: 5 Million Bend Cycles
• 064 – Extended Penetration
  • Depth: 6.4″ (162.6mm) ±0.3″
  • Installation: Requires Dual Sleeve Supports
• 04 – Simplified Connection Kit
  • Components: Explosion-Proof 3/4-14 NPT Plug
  • Material: 316 Stainless Steel

Advanced Technical Specifications

• Measurement Performance
  • Resolution: 0.05μm RMS
  • Frequency Range: 0.2Hz-18kHz (±2dB)
• Industrial Connectivity
  • Protocols: PROFIBUS DP & HART® 7.4
  • Power Requirements: 24 VDC ±15%
• Environmental Resilience
  • Pressure Rating: 500 PSI (34.5 bar)
  • IP69K Washdown Protection

Smart Manufacturing Application

Deployed in natural gas compressor stations for continuous rotor unbalance detection, maintaining ±0.2% accuracy in methane-rich environments with 10g shock loads.

Compliance & Industrial Standards

• API 670 5th Edition Annex H
• NACE MR0175 Sulfide Stress Corrosion
• ISO 10816-3 Vibration Severity

Predictive Maintenance Package

• Wireless vibration monitoring node
• High-pressure explosion-proof fittings
• Cloud-based FFT analysis software
• Multi-axis alignment calibration tools

Automation Solutions: Contact sales@ubestplc.com for SIL 2/3 compliance reports

Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
