Description

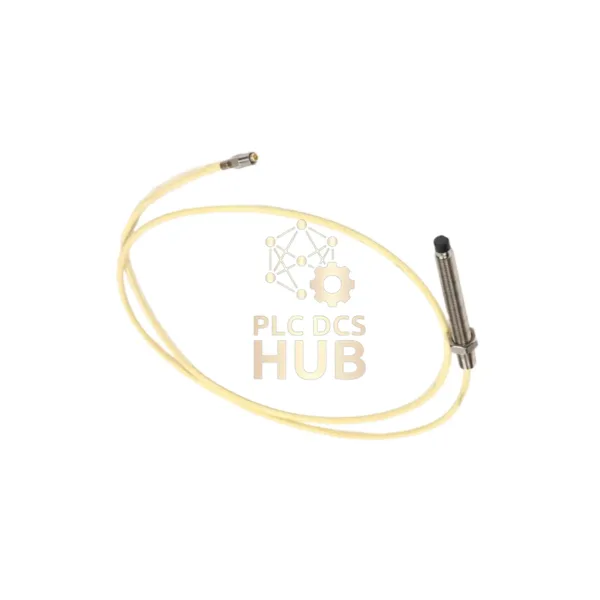

⚡ Bently Nevada 21504-00-28-10-02 Vibration Probe
???? Key Specifications
| Case Length | 2.8 in (71mm) |
| Cable | 1.0m ±10″ | Coaxial Connector |
| Special Feature | High-Temp Industrial Compressors |
???? Cross-Model Comparison
| Feature | 21504-00-28-10-02 | 21504-00-76-05-02 | 21504-08-32-10-02 |
|---|---|---|---|
| Installation Depth | Medium-range | Deep-mount | Extended-reach |
| Weight | 0.59kg | 0.72kg | 0.65kg |
⚙️ Universal Parameters
Common Technical Specs: • Output: 200 mV/mil (±4% system calibrated) • Power: -26VDC max @12mA • Thread: 3/8-24 UNF • Temp Range: -34°C to +177°C (Probe)
???? Typical Applications
- Petrochemical Centrifuges – 24/7 corrosion-resistant monitoring
- Paper Mill Rollers – High humidity environment operation
- HVAC Chillers – Vibration analysis at 10kHz frequency
