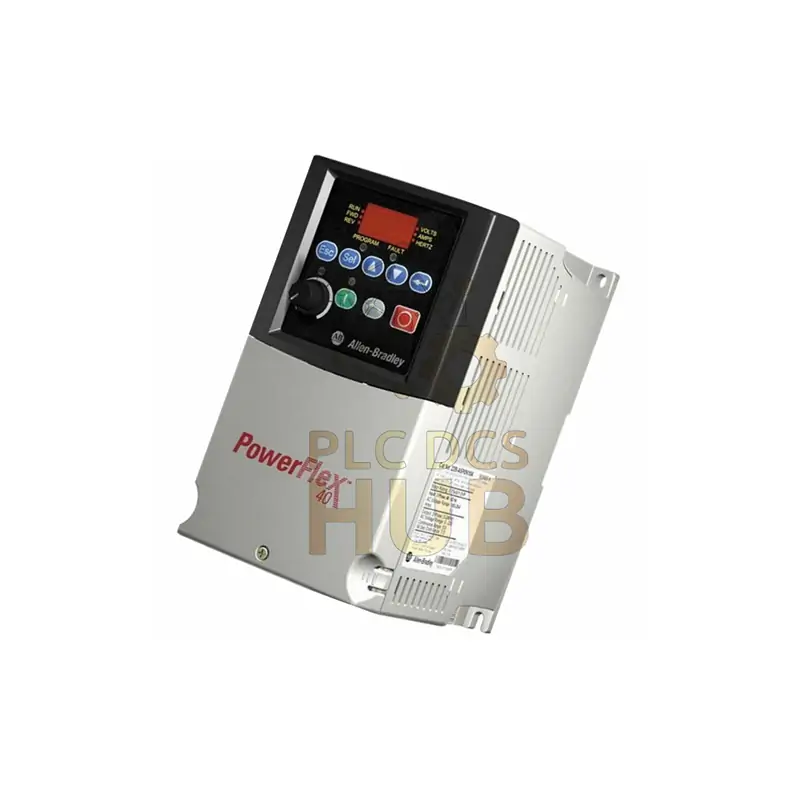

Allen-Bradley 22B-B012N104 – 3HP Industrial Drive
The 22B-B012N104 gives you powerful motor control. This 3HP drive works with 240V 3-phase power. Perfect for heavy machines needing smooth speed changes.
Top Features
- 3HP (2.2kW) power for tough jobs
- 12 Amp output for strong performance
- Works in hot/cold places (-10°C to 50°C)
- Saves energy with smart controls
- Easy panel or DIN rail mounting
Technical Specifications
| Input Power | 240V AC, 3-phase |
| Output Power | 0-230V AC, 3-phase |
| Frequency Range | 0-400Hz adjustable |
| Short Circuit Rating | 100,000A |
| Power Loss | 125W total |
| Carrier Frequency | 2-16kHz |
| Humidity Range | 0-95% non-condensing |
5 Expert Questions Answered
- Can this drive save energy?
Yes! It reduces power during slowdowns. - How do I connect to PLCs?
Use optional Ethernet/IP or RS485. - What size breaker needed?
25A fuse recommended. - Can it handle heavy loads?
Yes, perfect for lifts and conveyors. - Is the display removable?
Yes, the keypad can be moved.
Easy Setup Guide
- Mount with screws or DIN rail clip
- Keep 4 inches clearance above/below
- Use shielded cables for best results
- Program with built-in keypad
12-month warranty – We replace any faulty units. Ships via FedEx, UPS or DHL.
Need setup help? Download the PowerFlex 40 manual here for wiring diagrams and programming tips.
