22B-E1P7F104 | Allen Bradley Drive PowerFlex 40P

Description

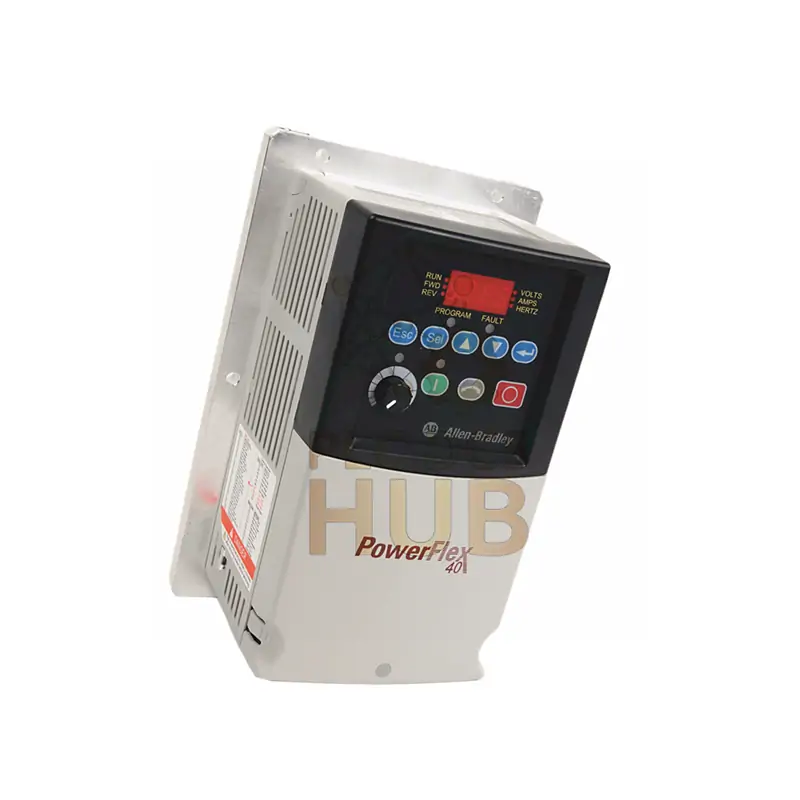

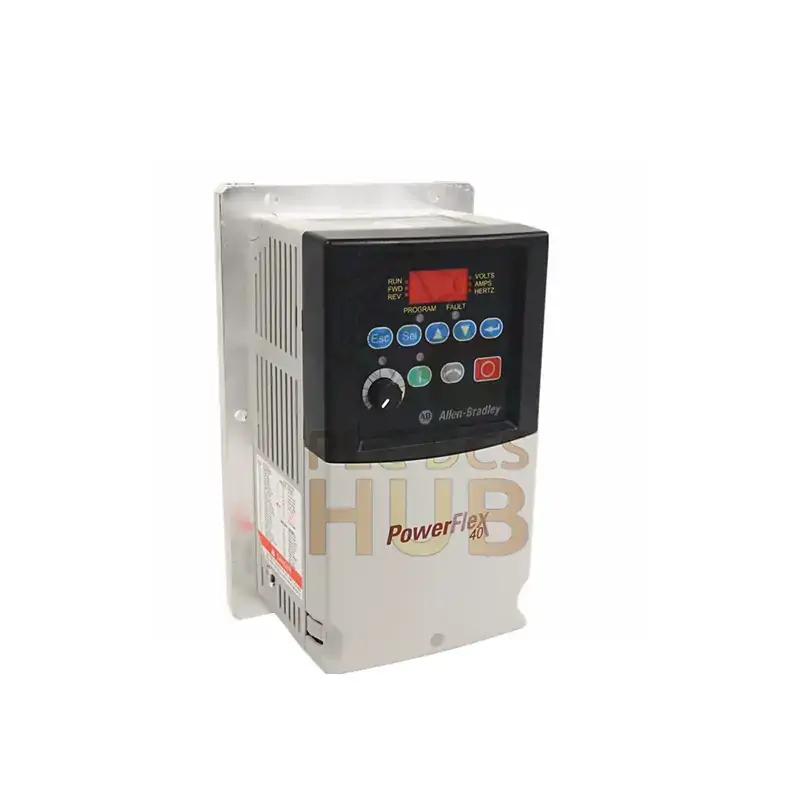

Allen-Bradley PowerFlex 40 Drive – 22B-E1P7F104

Compact 600V motor control with the 22B-E1P7F104 variable frequency drive. Perfect for small 3-phase motors up to 1 HP. Features space-saving design and flexible mounting options.

Key Features

• 1 HP (0.75 kW) power output
• 1.7A current capacity
• Works with 460-600V AC, 3-phase
• Ultra-compact B frame design
• Zero stacking for space efficiency
• Built-in RS-485 communication

Technical Specifications

• Model: 22B-E1P7F104
• Mounting: DIN rail or flange mount
• Enclosure: IP20 (optional IP30 upgrade)
• Operating Temp: -10°C to 40°C (14°F to 104°F)
• Control Methods: V/Hz & Sensorless Vector
• Braking: Integrated dynamic brake
• Display: 4-digit with 10 status LEDs
• Network Options: DeviceNet, Ethernet/IP ready

Smart Control Features

• Auto-tune for motor optimization
• Adjustable PWM for quiet operation
• StepLogic for advanced sequencing
• Removable MOV for system protection

FAQ

• Can I mount multiple drives together? Yes, zero stacking allows direct side-by-side mounting.
• What’s the maximum ambient temperature? 50°C (122°F) when stacked.
• Does it work with ungrounded systems? Yes, with removable MOV protection.
• Can I add wireless communication? Yes, with optional DSI Wireless Module.
• What’s the warranty coverage? 12 months full protection.

Shipping & Support

• 12-month warranty
• Fast worldwide shipping via FedEx, UPS, or DHL
• Technical support available

Compare Models

• 22B-B2P3N104 – 2.3A, 480V version
• 22B-B5P0F104 – 5A, 480V model
