22D-B024F104 PowerFlex 40P | Allen Bradley Drive

Description

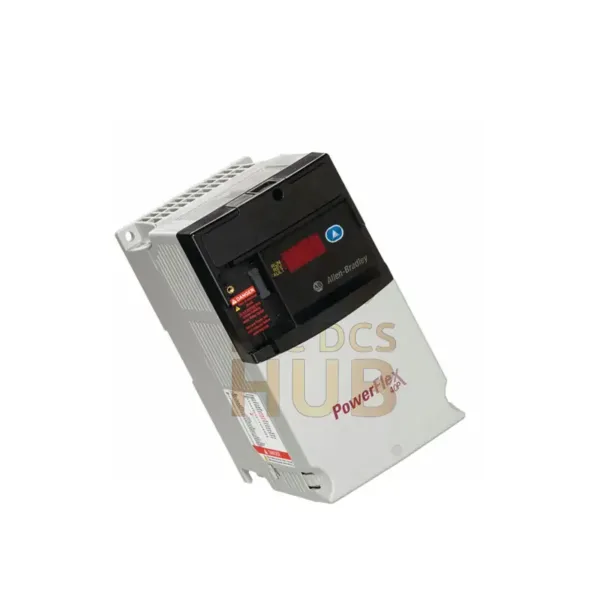

Allen-Bradley 22D-B024F104 PowerFlex Drive – 7.5HP Motor Control

Industrial-grade performance: The 22D-B024F104 controls 3-phase motors up to 7.5HP (24A) with precision speed adjustment in compact Frame C design.

Why Choose This Drive?

• ????️ Powerful output: 24A current for 7.5HP motors
• ⚡ Wide voltage range: 180-264V AC input
• ???? Compact size: Fits in tight spaces (300x325x244mm)
• ???? Flexible control: 0-500Hz adjustable frequency
• ????️ Built-in protection: Motor overload and short circuit

Technical Specifications

• Model: 22D-B024F104
• Input: 3-phase 240V AC (180-264V range)
• Output: 24A continuous, 36A overload (150% for 1 min)
• Enclosure: IP20 (indoor use)
• Weight: 2.2 lbs (1.0 kg)
• Vibration: Withstands 1G at 5-2000Hz
• Humidity: 0-95% non-condensing

Package Contents

• 22D-B024F104 drive unit
• Installation manual
• Mounting bracket

Our Warranty

Your purchase includes 12 months of protection against defects.

Shipping Options

Fast worldwide shipping via FedEx, UPS or DHL.

Common Questions

• Can I use this for a 10HP motor?
  No, maximum is 7.5HP (24A).
• Does it work with 480V systems?
  No, only 240V systems.
• Is programming software included?
  No, but parameters can be set manually.
• Can I add an external filter?
  Yes, for CE compliance if needed.
• What’s the restart time after fault?
  Immediate after reset.

Compare With Similar Models

• 22D-E4P2H204 – Waterproof NEMA 4X version
• 22D-E4P2N104 – Standard NEMA 1 enclosure
