Description
Overview

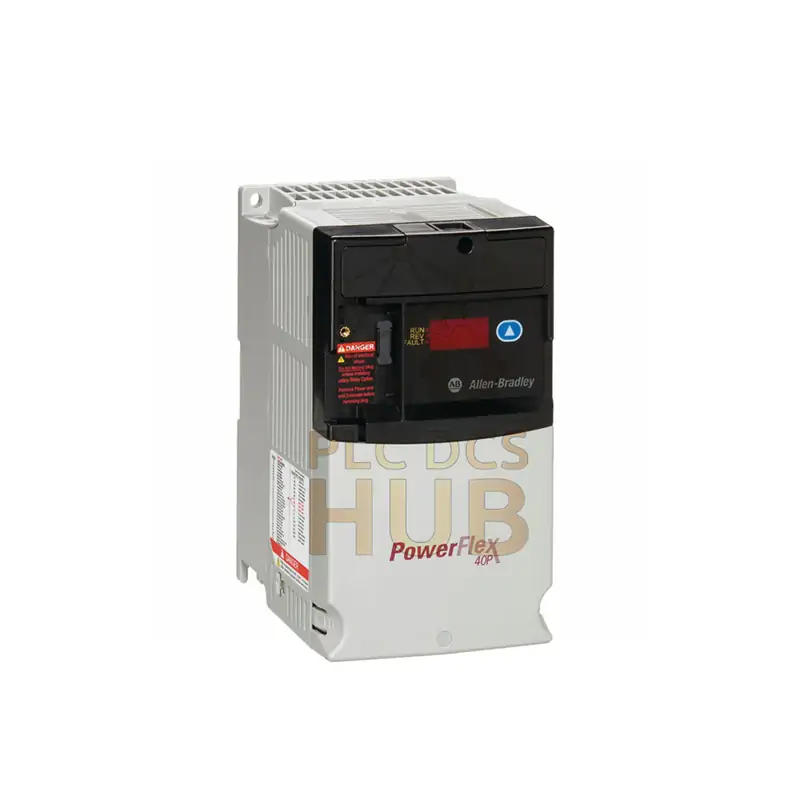

The Allen-Bradley 22D-B024H204 PowerFlex 40P Adjustable Frequency AC Drive is part of the PowerFlex 40P Drive Family, recognized for providing exceptional motor control in various industrial applications. This drive efficiently addresses the need for speed control while integrating advanced features like closed-loop control and category 3 Safe-off functionality.
Technical Specifications
- Brand: Allen-Bradley
- Model: 22D-B024H204
- Power Rating: 7.5 Horsepower (5.5 kW)
- Amperage: 24.0 A
- Voltage Input: 240 Volts AC
- Phase: Three-Phase
- Frame Size: C
- Enclosure Type: Open NEMA Type – Plate Mount (IP20)
- Input Tolerance: -10% to +10% at 48 to 63 Hertz
- Rated Output Current: 11.8 KVA at 26.1 Amps input current
- Short-Circuit Rating: 100,000 Amps
- Speed Control: Standard volt per hertz and sensorless vector control
- Output Frequency Range: 0 to 500 Hertz
- Control Efficiency: 97.5%
