22D-D1P4F104 | Allen Bradley Drive PowerFlex 40P

Description

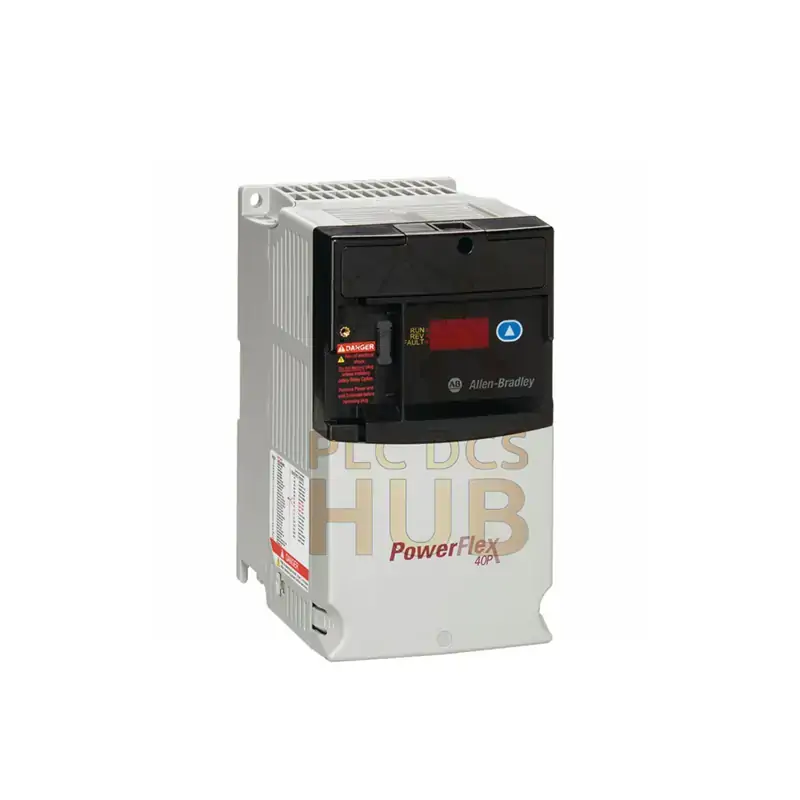

PowerFlex 40P Adjustable Frequency Drive – 22D-D1P4F104

Description

The Allen-Bradley PowerFlex 40P 22D-D1P4F104 is a compact, high-performance AC drive designed for precise motor speed and torque control. Ideal for pumps, fans, conveyors, and material handling systems, this drive ensures smooth operation with minimal friction, extending motor life. Its user-friendly keypad, 4-digit display, and LED indicators simplify programming and monitoring. With DIN rail, panel, or flange mounting options, installation is flexible and space-saving.

Technical Data

• Brand: Allen-Bradley (Rockwell Automation)
• Model: PowerFlex 40P 22D-D1P4F104
• Input Voltage: 480V AC, 3-Phase
• Output Current: 1.4A
• Horsepower: 0.5 HP
• Enclosure: Open (IP20), Flange Mount
• Frame Size: B
• Display: 4-digit with 10 LED indicators
• Certification: CE Compliant (No Filter)

Model Suffix Breakdown

The suffix 22D-D1P4F104 decodes as:

• 22D: PowerFlex 40P Series
• D1: 480V AC Input
• P4: 0.5 HP (1.4A)
• F104: Flange Mount, No CE Filter

Compatibility

Works with most 3-phase motors. Compatible with Allen-Bradley PowerFlex accessories. Compare with:

• 22D-E019F104 (1 HP, 240V)
• 22D-E019H204 (2 HP, 600V)

Package Includes

• PowerFlex 40P Drive (22D-D1P4F104)
• User Manual
• Mounting Hardware

Warranty & Shipping

12-month warranty. Ships via FedEx, UPS, or DHL.
