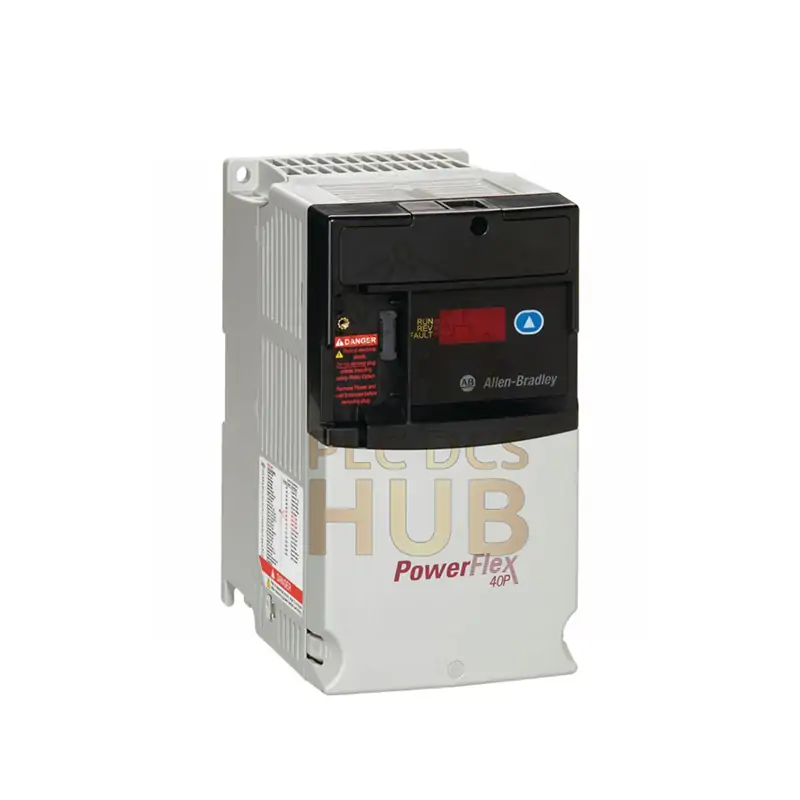

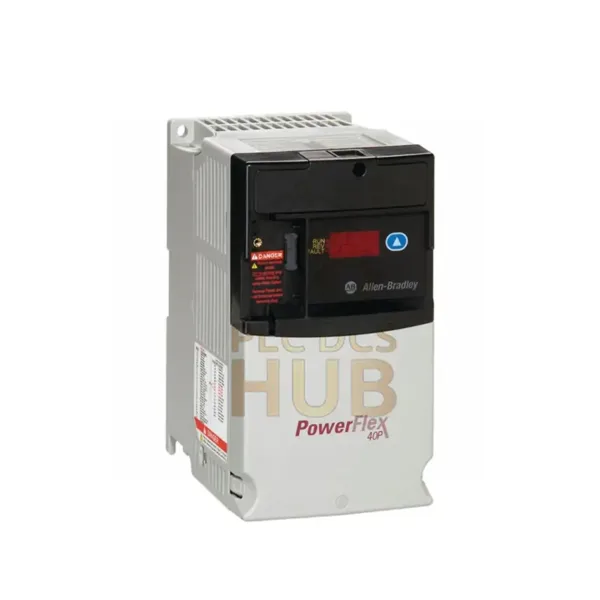

22D-E3P0N104 Allen Bradley Drive PowerFlex 40P

Description

Allen-Bradley 22D-E3P0N104 Drive – 2 HP Precision Motor Control

Complete Specifications

• Brand: Allen-Bradley
• Model: 22D-E3P0N104 (600V, 2HP, Frame B)
• Input Range: 414-660V AC, 3-Phase, 50/60Hz
• Output: 0-575V AC, 3.0A continuous
• Dimensions: 100x244x161mm (WxHxD)
• Protection: IP20 (NEMA Open)
• Voltage Protection: Undervoltage (275V/344V), Overvoltage (711V)
• I/O: 7 digital inputs, 3 outputs, 2 analog ports
• Display: 4-digit LED with status indicators
• Weight: 2.2 kg (4.85 lbs)
• PWM Frequency: 2-16kHz adjustable

Package & Support

• Ready for panel mounting
• Includes basic HIM interface
• Reset button for easy troubleshooting
• 12-month warranty – Quality assurance
• Express shipping options available

Expert Answers

• Can I add an EMC filter later? Yes, external filters available
• What’s the altitude limit? 1000m without derating
• Does it support PID control? Yes, built-in functionality
• Can I daisy-chain multiple drives? Yes, with proper spacing
• Is RS485 included? Yes, standard communication port

Alternative Options

• 22D-E012F104 – 1 HP, 600V, 1.2A
• 22D-E012H204 – 1 HP, 240V, 2.4A
