24701-16-05-00-035-04-02 Bently Nevada Housing Assemblies

Description

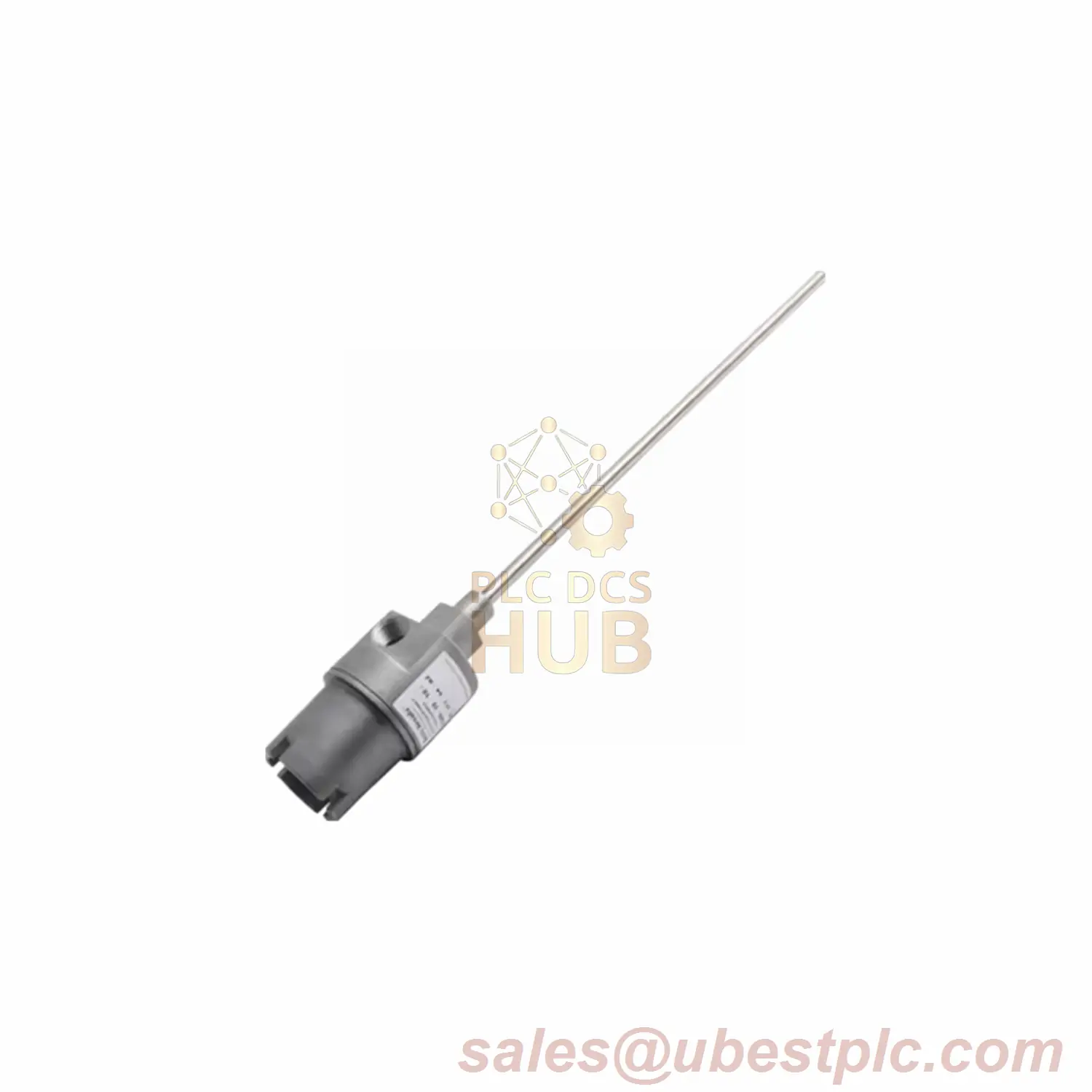

Bently Nevada 24701-16-05-00-035-04-02: Shallow-Mount Probe Housing

Compact Design

3.5″ depth housing with 0.5m cable. No standoff needed. Stainless steel construction for corrosive environments. Includes NPT plug for quick install.

Model Code Breakdown

• 24701-16-05-00-035-04-02
  • 16: 8mm 3300 XL probe
  • 05: 0.5m cable
  • 00: No standoff
  • 035: 3.5″ depth
  • 04: 3/4″ NPT plug
  • 02: 3/4-14 threads

Key Specs

• Shock Rating: 50g peak (11ms)
• Surface Finish: 0.8µm Ra
• Chemical Resistance: pH 2-12

Industry Applications

• Bottle cap sealing machines
• Water treatment pump monitoring
• EV battery assembly robots

Case Study: Packaging Plant

Issue: False alarms from vibration
Result: 3.5″ depth eliminated false triggers – 98% uptime achieved

Compare Models

• 24701-16-05-15-120-03-02: 12″ depth + standoff
• 24701-16-05-25-059-04-02: 5.9″ depth + 2.5″ standoff

Warnings

• Max 3mm target surface roughness
• Avoid chlorine-based cleaners

FAQ

Q: Minimum clearance needed?
A: 2″ front space required

Q: High-speed compatible?
A: Yes – 10kHz sampling rate

Q: Shelf life?
A: 5 years in original packaging
