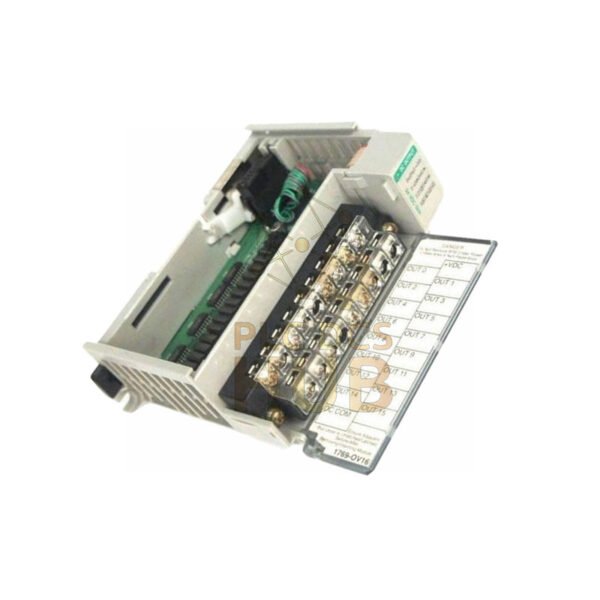

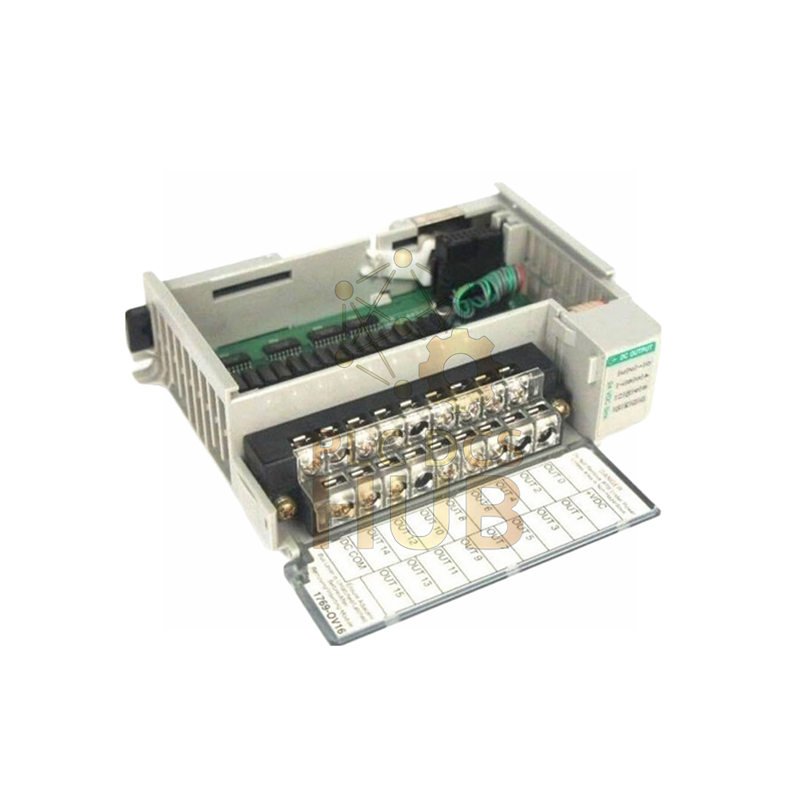

Allen-Bradley 1769-OV16 CompactLogix 16-Point DC Sinking Output Module
The Allen-Bradley 1769-OV16 delivers reliable DC sinking output control for industrial automation systems. This high-density module provides efficient switching for various control applications.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1769-OV16
- Output Type: 16-point sinking DC output module
- Voltage Range: 20.4-26.4V DC with reverse polarity protection
- Current Rating: 0.5A @ 60°C, 1.0A @ 30°C per point
- Total Module Current: 4.0A @ 60°C, 8.0A @ 30°C maximum
- Surge Current: 2.0A for 10ms (repeating every 2 seconds)
- Switching Speed: Turn-on: 0.1ms, Turn-off: 1.0ms
- Leakage Current: 1.0mA maximum off-state leakage
- Voltage Drop: 1.0V maximum on-state voltage drop
- Power Consumption: 200mA @ 5.1V DC, 2.06W heat dissipation
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Isolation: 500V AC between field and logic circuits
- Wiring Configuration: Sinking output with single common
- Status Indicators: Per-point LED status, module health indicator
- MTBF Rating: 800,000 hours at 40°C operating temperature
Packaging & Shipping
- Factory-sealed package includes one 1769-OV16 module
- Installation documentation and specification sheet included
- Shipping dimensions: 8 x 8 x 5 inches, weight: 2 pounds
- Global express shipping via FedEx, UPS, and DHL available
- 12-month warranty against manufacturing defects
Related Products Comparison
- 1769-IA16: 16-point AC input module for sensing applications
- 1769-IA8I: 8-point isolated AC input module
Professional FAQ
- What types of loads can this sinking module control?
- It can drive relays, solenoids, and indicator lights
- How does sinking configuration differ from sourcing?
- Sinking modules switch the ground side of the load
- What protection features does this module include?
- It features short-circuit and overload protection
- How do I troubleshoot a faulty output point?
- Use the per-point status LEDs for quick diagnostics
- What is the maximum ambient temperature for full current rating?
- 30°C for 1A per point, derate to 0.5A at 60°C
