Description

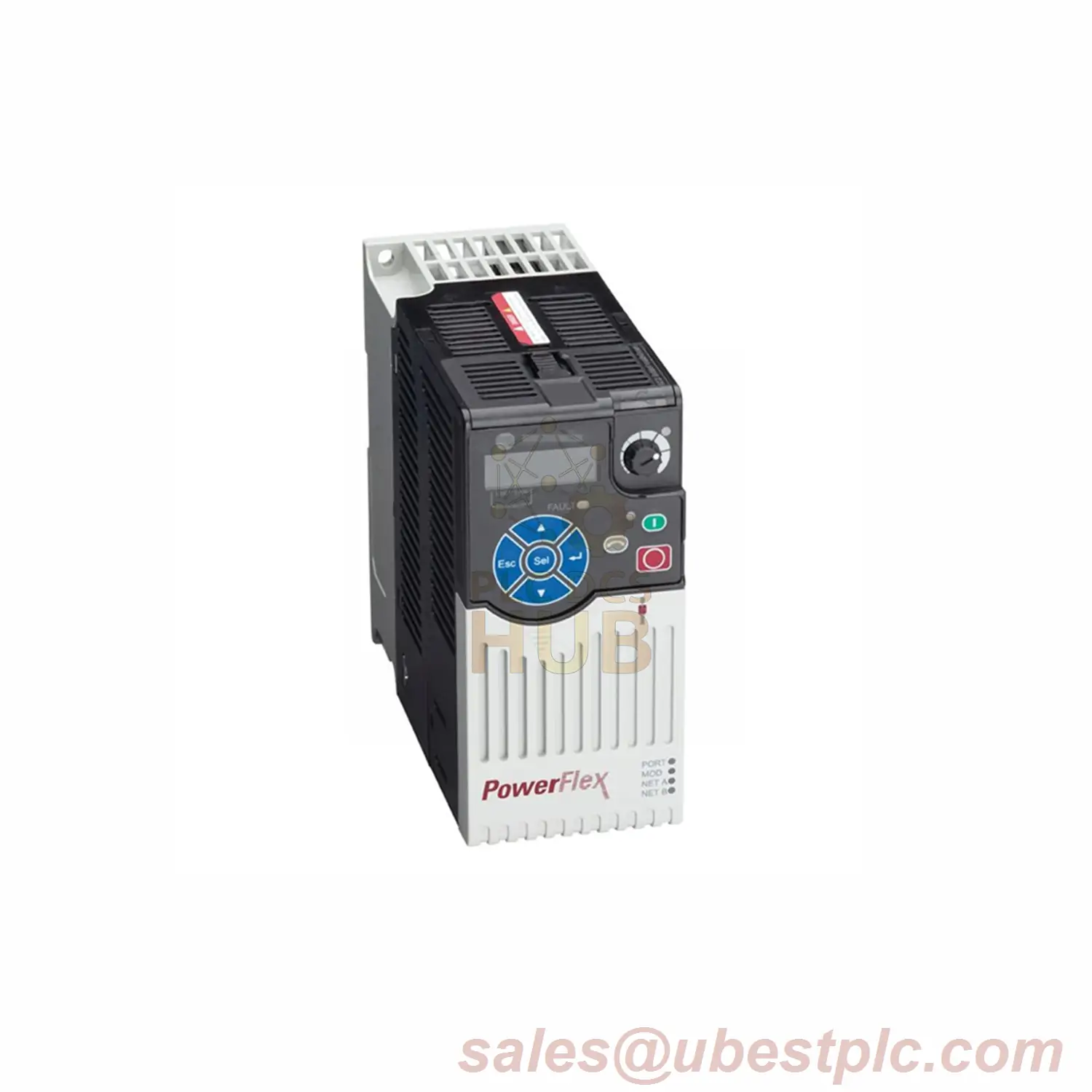

Allen-Bradley 25B-B5P0N104 PowerFlex 525 Drive – 1HP, 240V, 5A
Compact power for small motors – The 25B-B5P0N104 delivers precise 3-phase motor control from 1-phase input. Get installation guide.
Drive Highlights
- Input: 170-264V AC (3-phase)
- Output: 0-240V AC, 5A (1HP/0.75kW)
- Control: Sensorless vector & V/Hz modes
- Braking: Built-in dynamic brake
- Mounting: Panel or DIN rail
- Size: Ultra-compact Frame A
Technical Specs
| Model | 25B-B5P0N104 |
| Frequency Range | 0-500Hz |
| Efficiency | 97.5% |
| I/O Ports | 7 digital, 2 analog inputs |
| Temp Range | -20°C to 50°C (-4°F to 122°F) |
| Weight | 2.4 lbs (1.1 kg) |
Why Choose This Drive?
- Saves space – Fits tight control panels
- Works with Permanent Magnet motors
- Easy to network with Ethernet/IP
- Good for pumps, fans, conveyors
FAQ
1. Can I use this for a 480V motor?
No – max output is 240V. Check motor specs first.
2. How many drives can connect together?
Up to 31 drives via RS485 network.
3. Does it work in cold environments?
Yes – operates down to -20°C (-4°F).
4. Can I add Profibus later?
Yes – needs optional communication card.
5. What safety features does it have?
Includes Safe-Torque Off (STO) protection.
Warranty & Shipping
12-month warranty. Ships worldwide via FedEx, UPS, or DHL.
