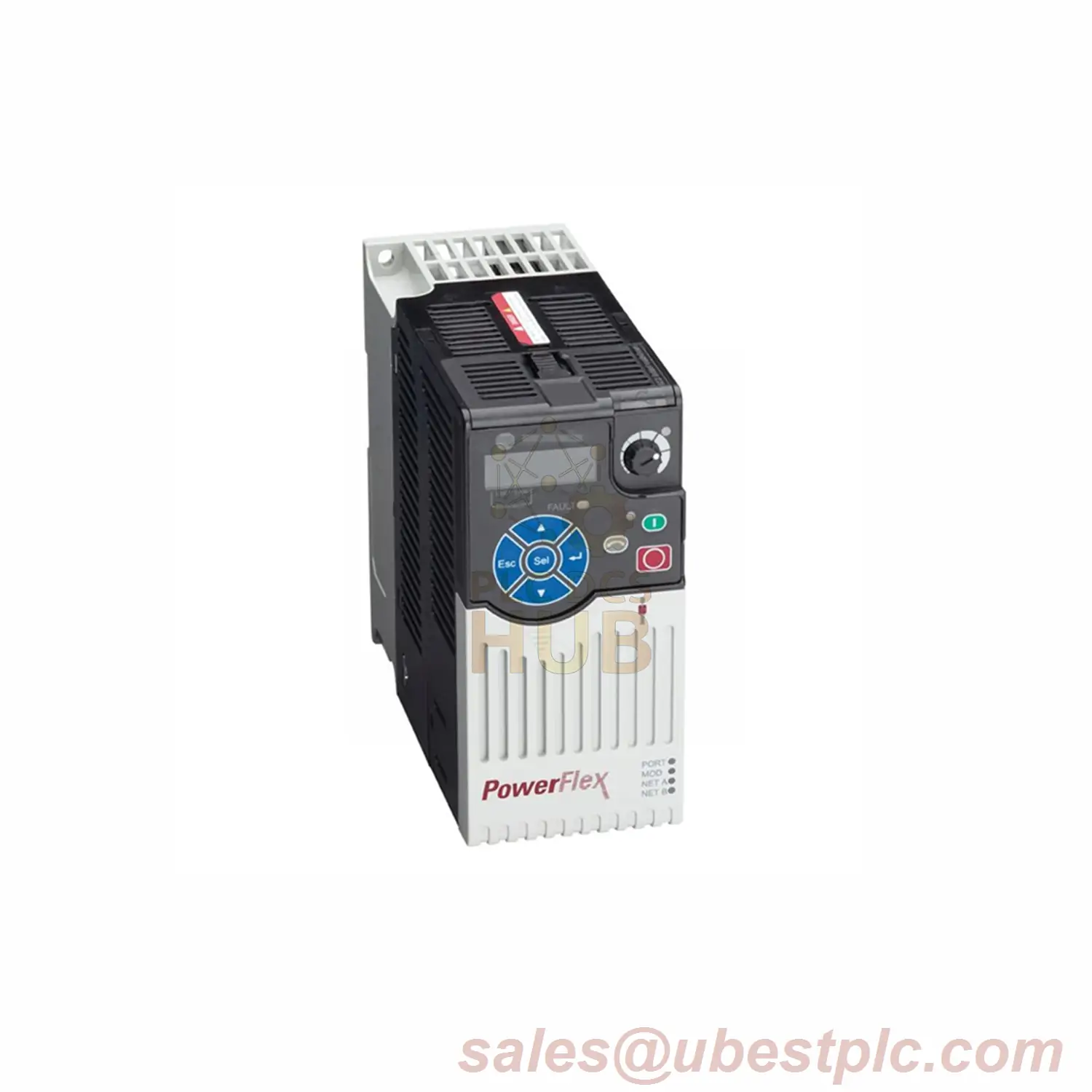

25B-D013N104 Allen-Bradley | PowerFlex 525 5.5KW AC Drive

Description

Allen-Bradley 25B-D013N104 PowerFlex 525 Drive – 7.5HP Industrial Power

Take control of your heavy-duty motors with the 25B-D013N104 – a robust 7.5HP VFD built for 480V systems.

Top Performance Features

• Handles 480V 3-phase power
• Compact Frame C design
• 17A output current capacity
• Built-in Ethernet connectivity
• Multiple motor control methods

Key Specifications

• Model: 25B-D013N104
• Power: 7.5HP (5.5kW)
• Input: 323-528V AC (3-phase)
• Output: 0-460V AC (3-phase)
• Current: 13A continuous (17A peak)
• Frequency: 0-500Hz adjustable
• Size: 8.7″ x 7.2″ x 4.3″
• Weight: 8.8 lbs

Advanced Control Options

• 7 digital inputs for flexible control
• 2 analog inputs (0-10V/4-20mA)
• Encoder feedback ready
• PID controller functionality
• Safe torque-off protection

What’s Included

• Drive unit
• Mounting hardware
• Quick start guide

Warranty Protection

12-month coverage against defects.

Fast Shipping

Reliable delivery via FedEx, UPS or DHL.

Expert Answers

• Q: What’s the minimum cable size required?
  A: 12 AWG for runs under 100ft.
• Q: Can I add external braking?
  A: Yes, supports brake resistors.
• Q: How many preset speeds can I program?
  A: Up to 16 different speeds.
• Q: Is dynamic braking included?
  A: Yes, built into the unit.
• Q: What’s the carrier frequency range?
  A: Adjustable 2-16kHz.

Get complete setup instructions: Download Full Manual Here
