Description

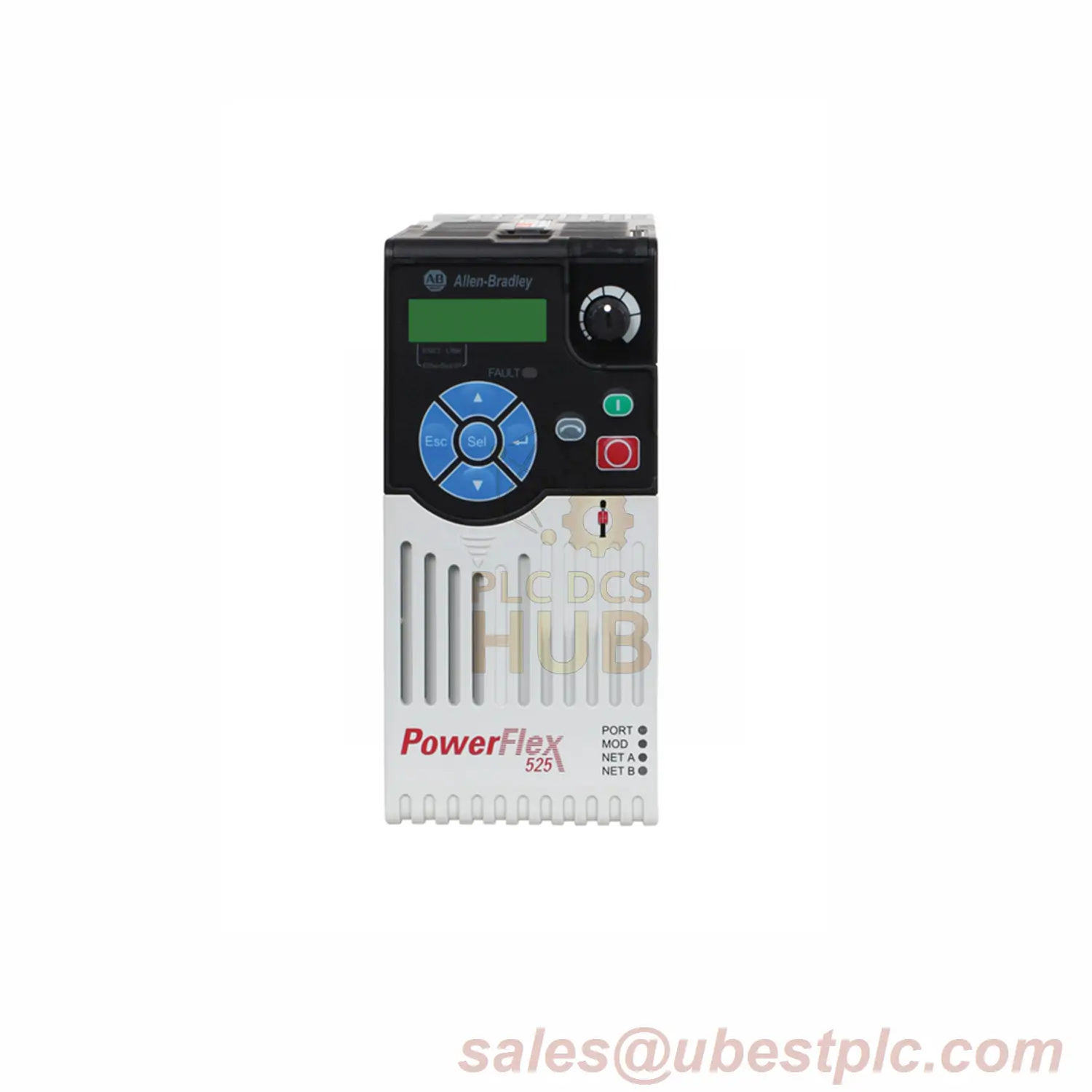

Allen-Bradley 25B-V6P0N104 PowerFlex 525 Drive – 1.5HP, 120V, 6.0A
Perfect for small motors – The 25B-V6P0N104 handles 1-phase input (120V) and gives 3-phase output (230V). Get the manual here for wiring and setup help.
Drive Highlights
- Input: 100-120V AC (1-phase)
- Output: 0-230V AC (3-phase), 6.0A
- Power: 1.5HP (1.1kW) heavy-duty
- Braking: Built-in IGBT brake
- Control: V/Hz, sensorless vector, PID
- Size: Fits in tight spaces (Frame A)
Key Specs
| Model | 25B-V6P0N104 |
| Input Range | 85-132V AC |
| Frequency | 0-500Hz |
| Efficiency | 97.5% |
| I/O Ports | 6 digital, 2 analog inputs |
| Mounting | Panel (IP20 enclosure) |
Why Pick the 25B-V6P0N104?
- Works with 1-phase power (no 3-phase needed)
- EtherNet/IP built-in for easy PLC connections
- Point-to-point positioning without encoder
- Saves energy with 97.5% efficiency
Common Questions
1. Can I use this for a 240V motor?
No – max output is 230V. Check motor specs first.
2. How many drives can connect to one DSI port?
Up to 5 drives on one network.
3. Does it work with servo motors?
Yes, using Permanent Magnet Motor Control mode.
4. What’s the smallest motor it can run?
As low as 0.5HP (check derating guidelines).
5. Can I mount it vertically?
Yes – keep 50mm clearance for airflow.
Warranty & Shipping
12-month warranty included. Ships via FedEx, UPS, or DHL.
