Description
Overview

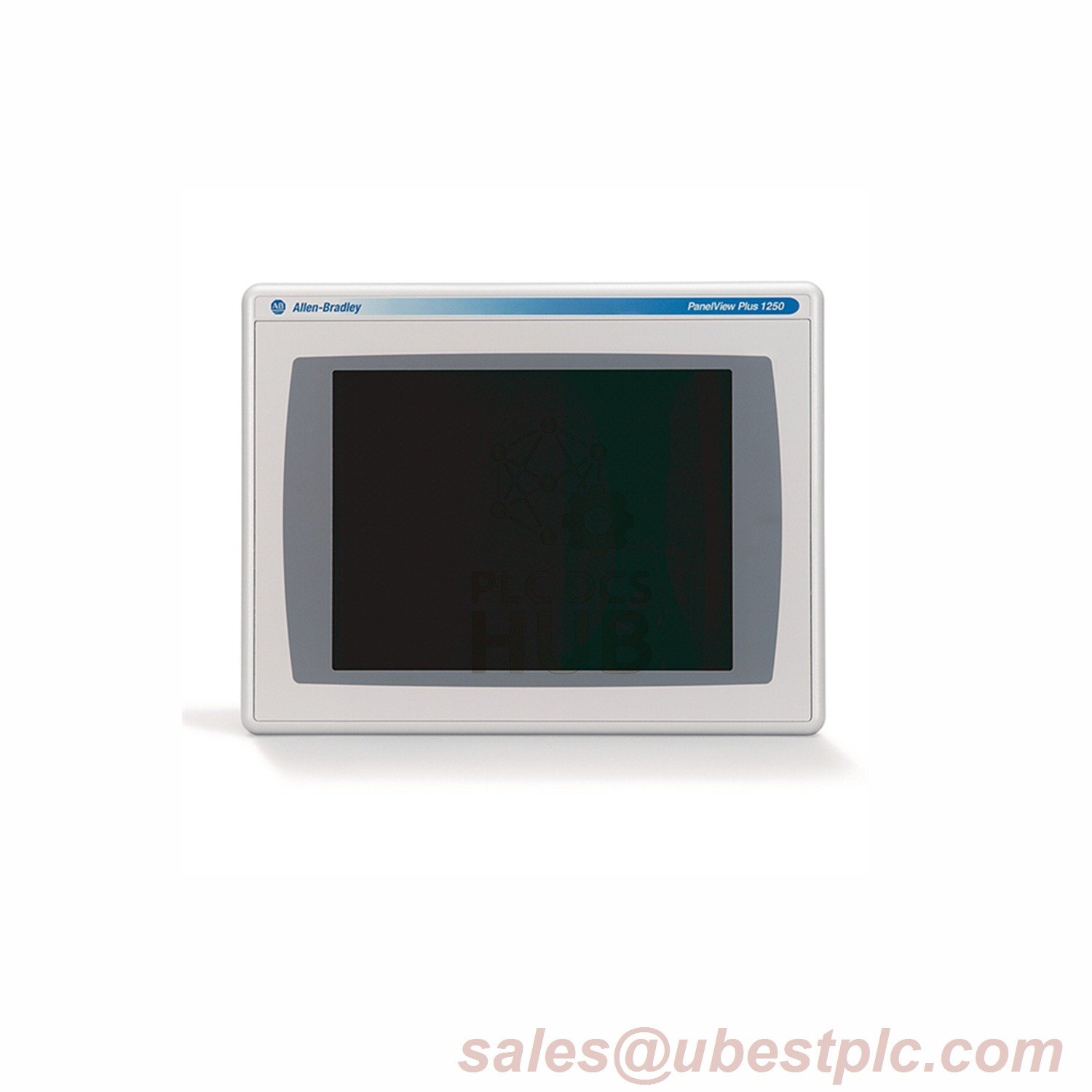

The Allen-Bradley 2711P-T15C21D8S is a PanelView Plus 7 Standard HMI terminal designed for industrial automation. Featuring a 15-inch color TFT touchscreen, this operator interface ensures seamless real-time interaction with control systems. It supports Ethernet communication, a 24V DC power supply, and is equipped with Windows CE OS License Pro. This robust terminal enhances operational efficiency in manufacturing environments.
????️ Technical Specifications
| Specification | Details |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711P-T15C21D8S |
| Series | PanelView Plus 7 Standard |
| Display Type | 15-inch Color TFT |
| Resolution | 1024 x 768 XGA, 18-bit color graphics |
| Touchscreen | Analog resistive (1 million presses, 100g actuation force) |
| Communication Ports | 1x Ethernet, 2x USB host |
| Input Voltage | 18-30V DC (24V nominal) |
| Power Consumption | 50W max (2.1A at 24V DC) |
| Backlight | White LED, 50,000 hours lifespan |
| Memory | 512MB RAM, 512MB non-volatile (approx. 80MB free user memory) |
| Operating Temperature | 0-55°C (32-131°F) |
| Dimensions | 318 x 381 x 56.5 mm |
| Weight | 3.07 kg (6.75 lbs) |
| Battery Backup | CR2032 lithium coin cell (4-year lifespan) |
| Mounting | Panel Mount |
Click the official datasheet to discover more details: Allen Bradley PanelView Plus 7
